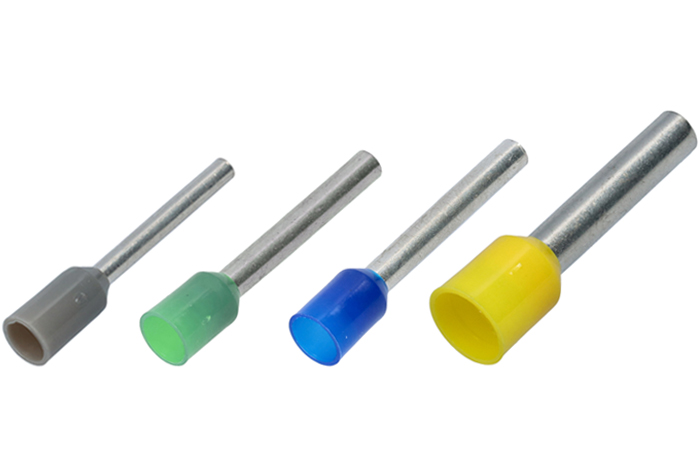

Cord end-sleeves, CET-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: Telemeqanique
Technical properties
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Single-sleeves
- Colour:
- Ivory, Brown, Purple, Pink, White, Blue, Red, Black, Grey, Orange, Green
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CET/CTT (Telemeqanique)
- Halogen free:
- Yes
Show more
Item List
- Total: 32
- Total: 32
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
End sleeve Pull of requirements

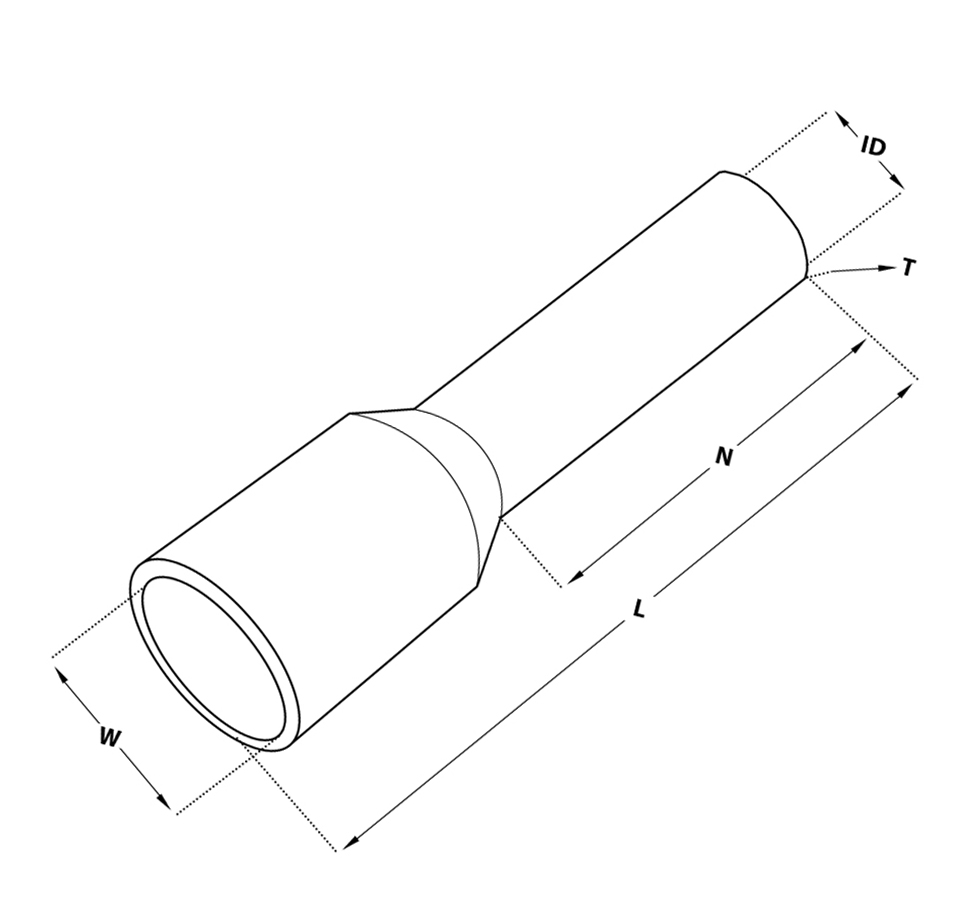

Dimensions
- Total: 32
| Product Description | ID | T | L | N | W | MOQ | Unit | Sleeve Length | AWG size | Total length | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, 0.14mm2-6 BROWN | 0.7 mm | 0.15 mm | 10 mm | 6 mm | 1.8 mm | 100 . | pcs | 6 mm | 26 | 10 mm | 0.14 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.14mm2-8 BROWN | 0.7 mm | 0.15 mm | 12 mm | 8 mm | 1.8 mm | 100 . | pcs | 8 mm | 26 | 12 mm | 0.14 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.34mm2-6 PINK | 0.9 mm | 0.15 mm | 10.4 mm | 6 mm | 2 mm | 100 . | pcs | 6 mm | 22 | 10.4 mm | 0.34 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.5mm2-8 WHITE | 1 mm | 0.15 mm | 14 mm | 8 mm | 2.6 mm | 100 . | pcs | 8 mm | 20 | 14 mm | 0.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-6 BLUE | 1.2 mm | 0.15 mm | 12 mm | 6 mm | 2.8 mm | 100 . | pcs | 6 mm | 20 | 12 mm | 0.75 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-8 BLUE | 1.2 mm | 0.15 mm | 14 mm | 8 mm | 2.8 mm | 100 . | pcs | 8 mm | 20 | 14 mm | 0.75 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-8 BLUE | 1.2 mm | 0.15 mm | 14 mm | 8 mm | 2.8 mm | 500 . | pcs | 8 mm | 20 | 14 mm | 0.75 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.0mm2-8 RED | 1.4 mm | 0.15 mm | 14 mm | 8 mm | 3 mm | 100 . | pcs | 8 mm | 18 | 14 mm | 1 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.5mm2-8 BLACK | 1.7 mm | 0.15 mm | 14 mm | 8 mm | 3.5 mm | 100 . | pcs | 8 mm | 16 | 14 mm | 1.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-8 GREY | 2.2 mm | 0.15 mm | 14 mm | 8 mm | 4.2 mm | 100 . | pcs | 8 mm | 14 | 14 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-8 GREY | 2.2 mm | 0.15 mm | 14 mm | 8 mm | 4.2 mm | 500 . | pcs | 8 mm | 14 | 14 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-12 GREY | 2.2 mm | 0.15 mm | 18 mm | 12 mm | 4.2 mm | 100 . | pcs | 12 mm | 14 | 18 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-10 ORANGE | 2.8 mm | 0.2 mm | 17 mm | 10 mm | 4.8 mm | 100 . | pcs | 10 mm | 12 | 17 mm | 4 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-12 ORANGE | 2.8 mm | 0.2 mm | 19 mm | 12 mm | 4.8 mm | 100 . | pcs | 12 mm | 12 | 19 mm | 4 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 6.0mm2-12 GREEN | 3.5 mm | 0.2 mm | 20 mm | 12 mm | 6.3 mm | 100 . | pcs | 12 mm | 10 | 20 mm | 6 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 6.0mm2-18 GREEN | 3.5 mm | 0.2 mm | 26 mm | 18 mm | 6.3 mm | 100 . | pcs | 18 mm | 10 | 26 mm | 6 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 10mm2-12 BROWN | 4.5 mm | 0.2 mm | 22 mm | 12 mm | 7.6 mm | 100 . | pcs | 12 mm | 8 | 22 mm | 10 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 10mm2-18 BROWN | 4.5 mm | 0.2 mm | 28 mm | 18 mm | 7.6 mm | 100 . | pcs | 18 mm | 8 | 28 mm | 10 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 16mm2-12 IVORY | 5.8 mm | 0.2 mm | 24 mm | 12 mm | 8.8 mm | 100 . | pcs | 12 mm | 6 | 24 mm | 16 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-16 BLACK | 7.3 mm | 0.22 mm | 30 mm | 16 mm | 11.2 mm | 100 . | pcs | 16 mm | 4 | 30 mm | 25 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-22 BLACK | 7.3 mm | 0.22 mm | 36 mm | 22 mm | 11.2 mm | 100 . | pcs | 22 mm | 4 | 36 mm | 25 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.25mm2-8 VIOLET | 0.8 mm | 0.15 mm | 14 mm | 8 mm | 1.8 mm | 100 . | pcs | 8 mm | 24 | 14 mm | 0.25 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.34mm2-8 PINK | 0.9 mm | 0.15 mm | 12.4 mm | 8 mm | 2 mm | 100 . | pcs | 8 mm | 22 | 12.4 mm | 0.34 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-10 BLUE | 1.2 mm | 0.15 mm | 16 mm | 10 mm | 2.8 mm | 100 . | pcs | 10 mm | 20 | 16 mm | 0.75 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-12 BLUE | 1.2 mm | 0.15 mm | 18 mm | 12 mm | 2.8 mm | 100 . | pcs | 12 mm | 20 | 18 mm | 0.75 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.0mm2-6 RED | 1.4 mm | 0.15 mm | 12 mm | 6 mm | 3 mm | 100 . | pcs | 6 mm | 18 | 12 mm | 1 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-10 GREY | 2.2 mm | 0.15 mm | 16 mm | 10 mm | 4.2 mm | 100 . | pcs | 10 mm | 14 | 16 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-18 GREY | 2.2 mm | 0.15 mm | 24 mm | 18 mm | 4.2 mm | 100 . | pcs | 18 mm | 14 | 24 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-18 ORANGE | 2.8 mm | 0.2 mm | 24 mm | 18 mm | 4.8 mm | 100 . | pcs | 18 mm | 12 | 24 mm | 4 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 16mm2-18 IVORY | 5.8 mm | 0.2 mm | 28 mm | 18 mm | 8.8 mm | 100 . | pcs | 18 mm | 6 | 28 mm | 16 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-16 BLACK | 7.3 mm | 0.22 mm | 30 mm | 16 mm | 11.2 mm | 50 . | pcs | 16 mm | 4 | 30 mm | 25 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.25mm2-6 VIOLET | 0.8 mm | 0.15 mm | 10.4 mm | 6 mm | 1.8 mm | 100 . | pcs | 6 mm | 24 | 10.4 mm | 0.25 mm² |
Yes
|
|
|
- Total: 32
Similar Options
Approvals
- Total: 32
- Total: 32
Technical Properties
- Total: 32
| Product Description | Insulated | Reel/roll packaging | Construction type | Colour | Surface protection | Material insulation | Material | Colour code | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, 0.14mm2-6 BROWN | Yes | No | Single-sleeves | Brown | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.14mm2-8 BROWN | Yes | No | Single-sleeves | Brown | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.34mm2-6 PINK | Yes | No | Single-sleeves | Pink | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.5mm2-8 WHITE | Yes | No | Single-sleeves | White | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-6 BLUE | Yes | No | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-8 BLUE | Yes | No | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-8 BLUE | Yes | No | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.0mm2-8 RED | Yes | No | Single-sleeves | Red | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.5mm2-8 BLACK | Yes | No | Single-sleeves | Black | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-8 GREY | Yes | No | Single-sleeves | Grey | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-8 GREY | Yes | No | Single-sleeves | Grey | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-12 GREY | Yes | No | Single-sleeves | Grey | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-10 ORANGE | Yes | No | Single-sleeves | Orange | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-12 ORANGE | Yes | No | Single-sleeves | Orange | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 6.0mm2-12 GREEN | Yes | No | Single-sleeves | Green | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 6.0mm2-18 GREEN | Yes | No | Single-sleeves | Green | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 10mm2-12 BROWN | Yes | No | Single-sleeves | Brown | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 10mm2-18 BROWN | Yes | No | Single-sleeves | Brown | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 16mm2-12 IVORY | Yes | No | Single-sleeves | Ivory | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-16 BLACK | Yes | No | Single-sleeves | Black | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-22 BLACK | Yes | No | Single-sleeves | Black | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.25mm2-8 VIOLET | Yes | No | Single-sleeves | Purple | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.34mm2-8 PINK | Yes | No | Single-sleeves | Pink | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-10 BLUE | Yes | No | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-12 BLUE | Yes | No | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.0mm2-6 RED | Yes | No | Single-sleeves | Red | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-10 GREY | Yes | No | Single-sleeves | Grey | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-18 GREY | Yes | No | Single-sleeves | Grey | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-18 ORANGE | Yes | No | Single-sleeves | Orange | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 16mm2-18 IVORY | Yes | No | Single-sleeves | Ivory | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-16 BLACK | Yes | No | Single-sleeves | Black | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.25mm2-6 VIOLET | Yes | No | Single-sleeves | Purple | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
- Total: 32
Other information
- Total: 32
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, 0.14mm2-6 BROWN | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET001406-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.14mm2-8 BROWN | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET001408-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.34mm2-6 PINK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET003406-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.5mm2-8 WHITE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET005008-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-6 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET007506-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-8 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET007508-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-8 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET007508-500 |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.0mm2-8 RED | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET010008-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.5mm2-8 BLACK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET015008-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-8 GREY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET025008-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-8 GREY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET025008-500 |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-12 GREY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET025012-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-10 ORANGE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET040010-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-12 ORANGE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET040012-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 6.0mm2-12 GREEN | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET060012-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 6.0mm2-18 GREEN | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET060018-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 10mm2-12 BROWN | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET100012-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 10mm2-18 BROWN | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET100018-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 16mm2-12 IVORY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET160012-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-16 BLACK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET250016-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-22 BLACK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET250022-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.25mm2-8 VIOLET | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET002508-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.34mm2-8 PINK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET003408-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-10 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET007510-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.75mm2-12 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET007512-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 1.0mm2-6 RED | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET010006-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-10 GREY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET025010-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 2.5mm2-18 GREY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET025018-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 4.0mm2-18 ORANGE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET040018-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 16mm2-18 IVORY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET160018-100 |
Yes
|
|
|
| INSULATED END-SLEEVE, 25mm2-16 BLACK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET250016-50 |
Yes
|
|
|
| INSULATED END-SLEEVE, 0.25mm2-6 VIOLET | EC000005 - Cable end sleeve | 9.0 |
|
Insulated single end-sleeves | CET002506-100 |
Yes
|
|
|
- Total: 32
