CET 002508-100

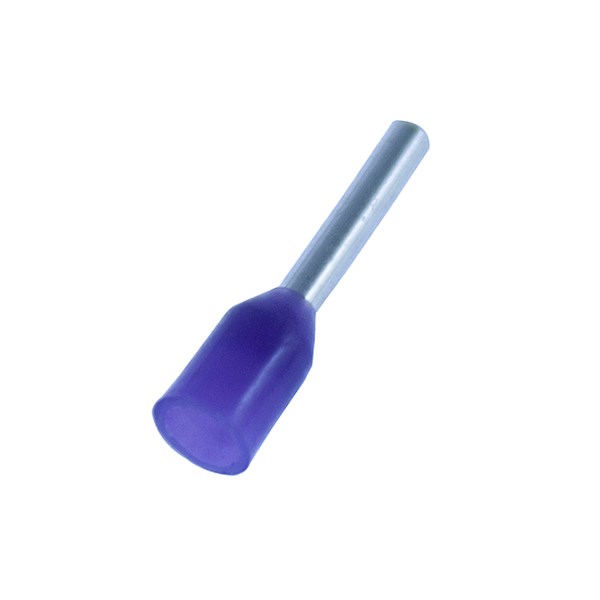

INSULATED END-SLEEVE, 0.25mm2-8 VIOLET
CET 002508-100
- Availability:
-
Yes
- Total: 1
Related items
Cord end-sleeves, CET-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: Telemeqanique
- Total: 1
Product Properties
| Insulated | Yes |
|---|---|
| Reel/roll packaging | No |
| Construction type | Single-sleeves |
| Colour | Purple |
| Surface protection | Tinned |
| Material insulation | Polypropylene (PP) |
| Material | Copper |
| Colour code | CET/CTT (Telemeqanique) |
| Halogen free | Yes |
Dimensions
| ID | 0.8 mm |
|---|---|
| T | 0.15 mm |
| L | 14 mm |
| N | 8 mm |
| W | 1.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Sleeve Length | 8 mm |
| AWG size | 24 |
| Total length | 14 mm |
| Nominal cross section | 0.25 mm² |
Logistics
| Barcode | 733117615464 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | CET 002508-100 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Insulated single end-sleeves |
| Alternative SKU | CET002508-100 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
