CEW 160018-100

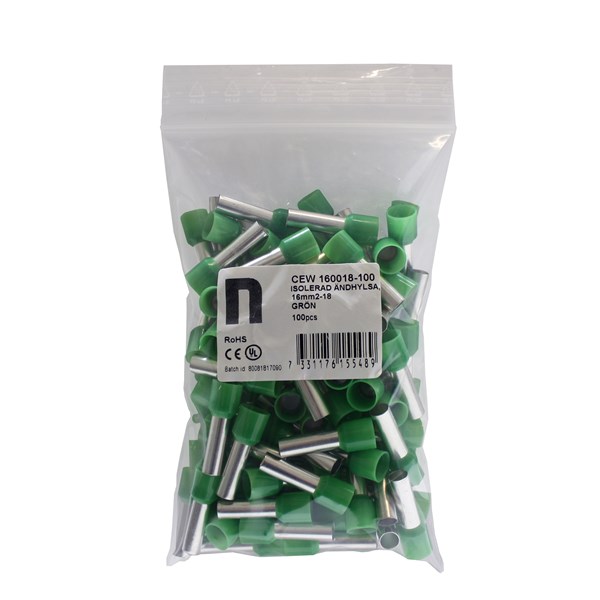

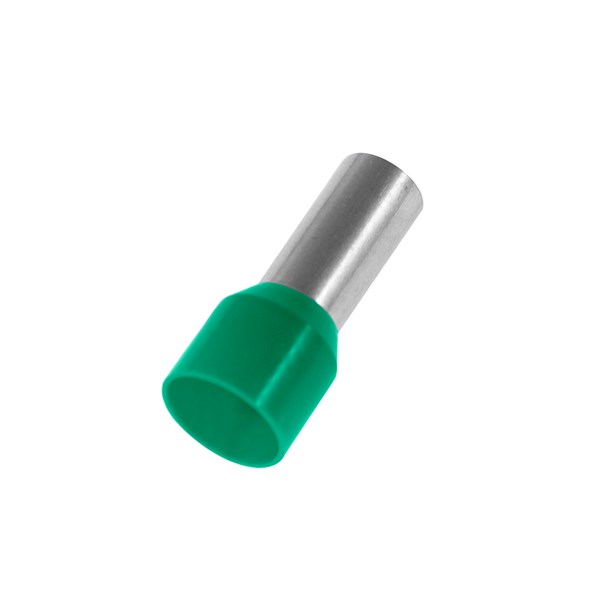

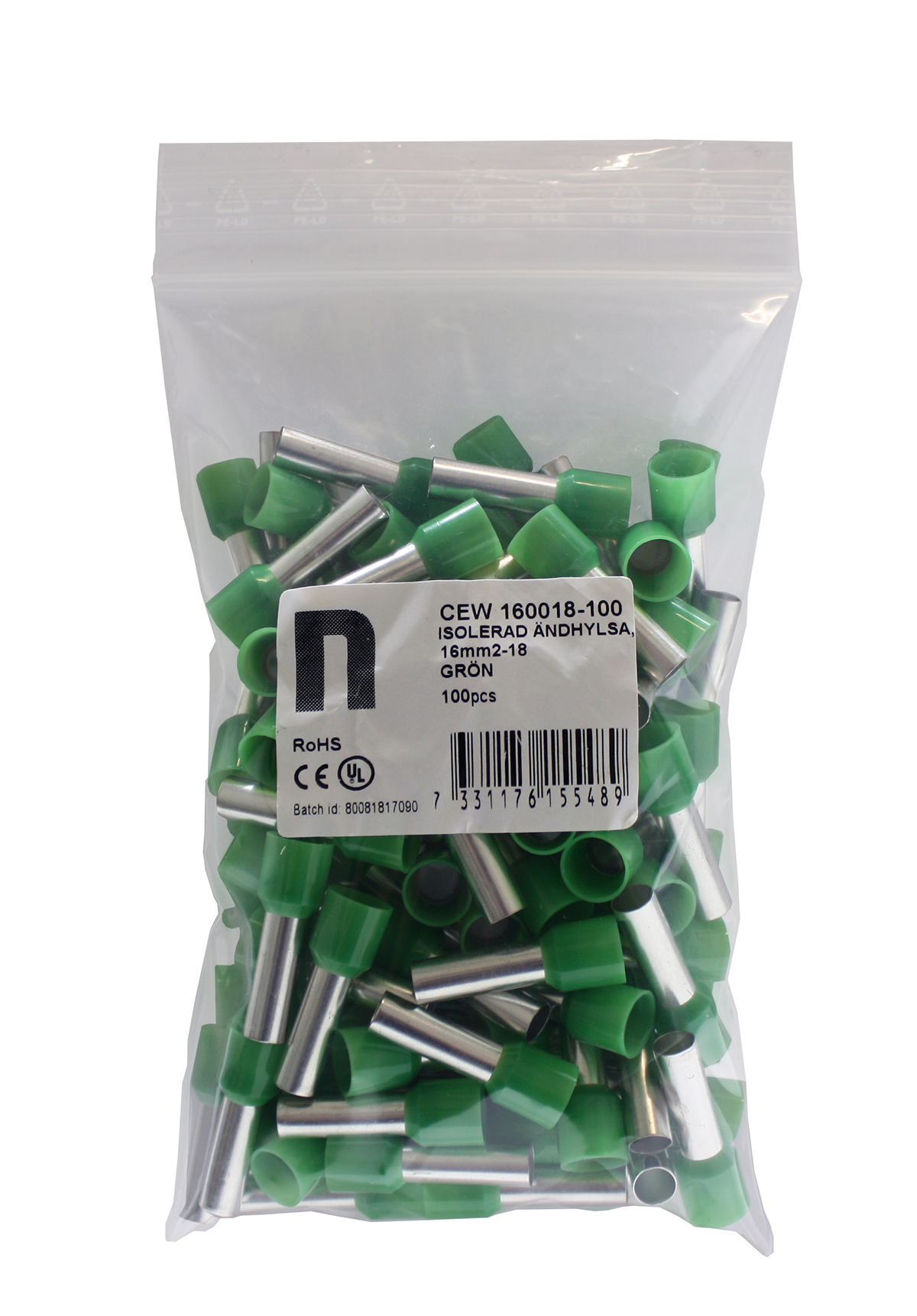

INSULATED END-SLEEVE, 16mm2-18 GREEN

Sku

CEW 160018-100

Availability:
Yes
  • Total: 1
Product Description
Cord end-sleeves, CEW-serien
  • Total: 1
  • Total: 1

Related items

Cord end-sleeves, CEW-serien

  • Total: 1

E0870817

Insulated Yes
Reel/roll packaging No
Construction type Single-sleeves
Colour Green
Surface protection Tinned
Material insulation Polypropylene (PP)
Material Copper
Colour code CEW/CTW (Old German colorline)
Halogen free Yes
ID 5.8 mm
T 0.2 mm
L 28 mm
N 18 mm
W 8.8 mm
MOQ 100 .
Unit pcs
Sleeve Length 18 mm
AWG size 6
Total length 28 mm
Nominal cross section 16 mm²
Barcode 733117615548
Country of origin DE
E-no E0870817
Item status Stock item, normally in stock with reservation for in between sales.
MOQ 100 .
Stock code CEW 160018-100
Taric code 85369010
Unit pcs
Approved according to CE Yes
Approved according to CSA Yes
With approval according to UL Yes
ETIM-Class EC000005 - Cable end sleeve
ETIM-Release 9.0
Trademark NEMIQ
Product Group Insulated single end-sleeves
Alternative SKU CEW160018-100
Conflict Minerals Yes, see report under tab "Documents"
PFAS No PFAS
POPs No POPs
REACH No SVHC (240 Subs. 23 Jan 2024)
RoHS RoHS 3 (2015/863)
SCIP Not Applicable
US TSCA No (5 PBT Subs, Feb 2021)
