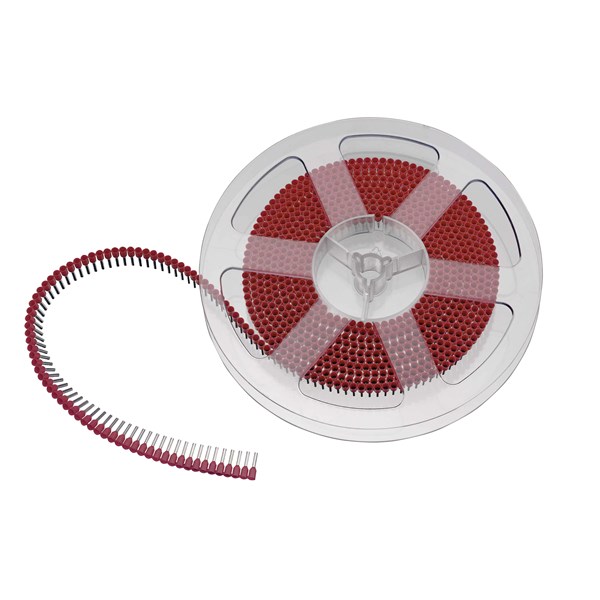

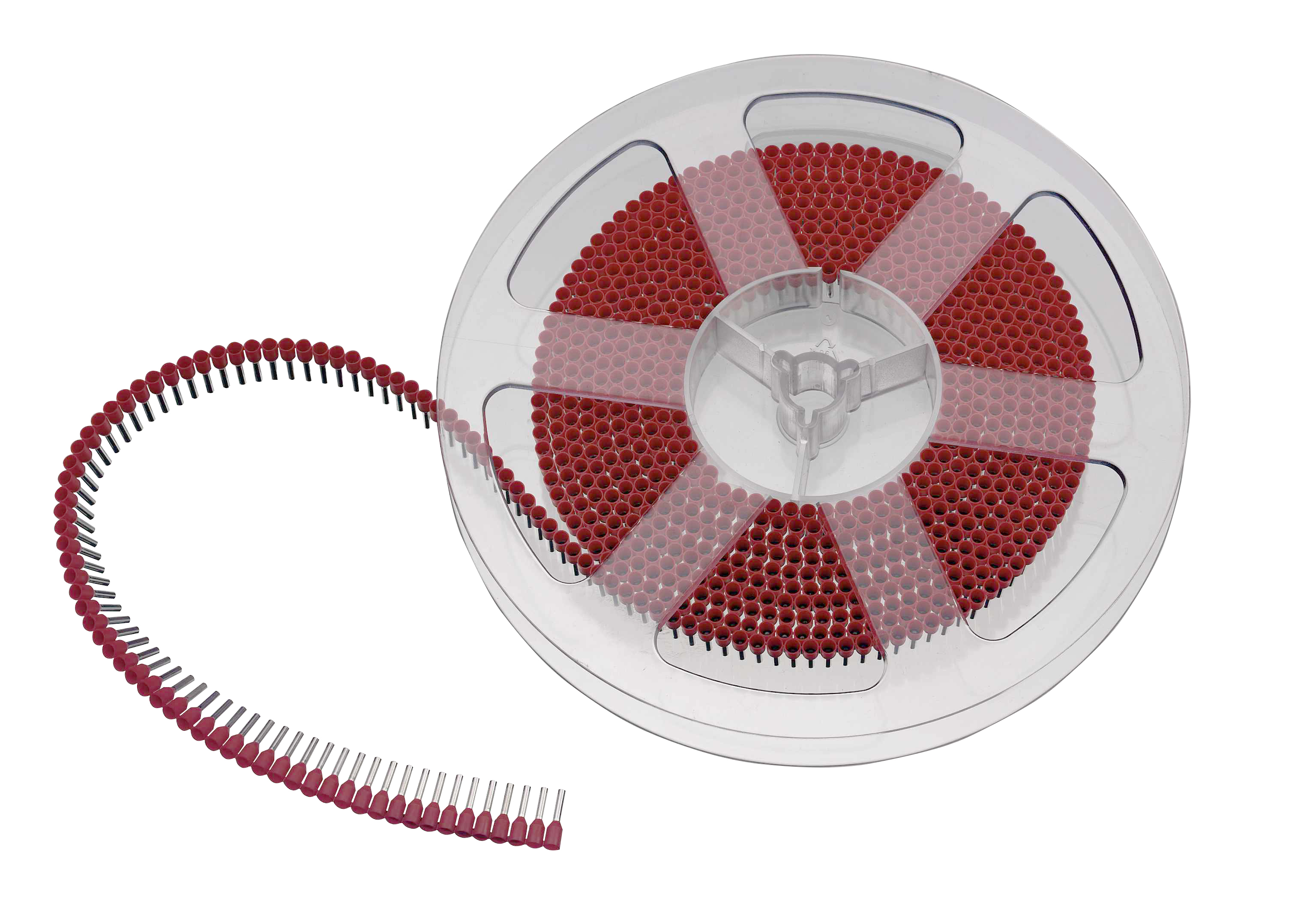

Cord end-sleeves on reel, K-serien
Roll diameter: 180 mm
Material: Tinned copper
Temperature range: <110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Technical properties
- Insulated:
- Yes
- Reel/roll packaging:
- Yes
- Construction type:
- Single-sleeves
- Colour:
- Blue, Grey, Orange, White, Yellow, Red, Black
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CEW/CTW (Old German colorline), CED/CTD (DIN), CET/CTT (Telemeqanique)
- Halogen free:
- Yes
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
End sleeve Pull of requirements
Dimensions
- Total: 10
| Product Description | ID | T | L | N | W | MOQ | Unit | Sleeve Length | AWG size | Total length | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 BLUE | 1.2 mm | 0.15 mm | 14 mm | 8 mm | 2.8 mm | 1100 . | pcs | 8 mm | 20 | 14 mm | 0.75 mm² |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 GREY | 2.2 mm | 0.15 mm | 14 mm | 8 mm | 4.2 mm | 500 . | pcs | 8 mm | 14 | 14 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 ORANGE | 1 mm | 0.15 mm | 14 mm | 8 mm | 2.6 mm | 1100 . | pcs | 8 mm | 20 | 14 mm | 0.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 WHITE | 1.2 mm | 0.15 mm | 14 mm | 8 mm | 2.8 mm | 1100 . | pcs | 8 mm | 20 | 14 mm | 0.75 mm² |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 YELLOW | 1.4 mm | 0.15 mm | 14 mm | 8 mm | 3 mm | 800 . | pcs | 8 mm | 18 | 14 mm | 1 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 RED | 1.7 mm | 0.15 mm | 14 mm | 8 mm | 3.5 mm | 800 . | pcs | 8 mm | 16 | 14 mm | 1.5 mm² |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 BLUE | 2.2 mm | 0.15 mm | 14 mm | 8 mm | 4.2 mm | 500 . | pcs | 8 mm | 14 | 14 mm | 2.5 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 WHITE | 1 mm | 0.15 mm | 14 mm | 8 mm | 2.6 mm | 1100 . | pcs | 8 mm | 20 | 14 mm | 0.5 mm² |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 RED | 1.4 mm | 0.15 mm | 14 mm | 8 mm | 3 mm | 800 . | pcs | 8 mm | 18 | 14 mm | 1 mm² |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 BLACK | 1.7 mm | 0.15 mm | 14 mm | 8 mm | 3.5 mm | 800 . | pcs | 8 mm | 16 | 14 mm | 1.5 mm² |
Yes
|
|
|
- Total: 10
Similar Options
Approvals
- Total: 10
| Product Description | Approved according to CE | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 BLUE |
|
|
|
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 GREY |
|
|
|
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 ORANGE |
|
|
|
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 WHITE |
|
|
|
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 YELLOW |
|
|
|
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 RED |
|
|
|
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 BLUE |
|
|
|
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 WHITE |
|
|
|
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 RED |
|
|
|
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 BLACK |
|
|
|
Yes
|
|
|
- Total: 10
Technical Properties
- Total: 10
| Product Description | Insulated | Reel/roll packaging | Construction type | Colour | Surface protection | Material insulation | Material | Colour code | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 BLUE | Yes | Yes | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 GREY | Yes | Yes | Single-sleeves | Grey | Tinned | Polypropylene (PP) | Copper | CET/CTT (Telemeqanique) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 ORANGE | Yes | Yes | Single-sleeves | Orange | Tinned | Polypropylene (PP) | Copper | CEW/CTW (Old German colorline) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 WHITE | Yes | Yes | Single-sleeves | White | Tinned | Polypropylene (PP) | Copper | CEW/CTW (Old German colorline) | Yes |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 YELLOW | Yes | Yes | Single-sleeves | Yellow | Tinned | Polypropylene (PP) | Copper | CEW/CTW (Old German colorline) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 RED | Yes | Yes | Single-sleeves | Red | Tinned | Polypropylene (PP) | Copper | CEW/CTW (Old German colorline) | Yes |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 BLUE | Yes | Yes | Single-sleeves | Blue | Tinned | Polypropylene (PP) | Copper | CEW/CTW (Old German colorline) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 WHITE | Yes | Yes | Single-sleeves | White | Tinned | Polypropylene (PP) | Copper | CED/CTD (DIN) | Yes |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 RED | Yes | Yes | Single-sleeves | Red | Tinned | Polypropylene (PP) | Copper | CED/CTD (DIN) | Yes |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 BLACK | Yes | Yes | Single-sleeves | Black | Tinned | Polypropylene (PP) | Copper | CED/CTD (DIN) | Yes |
Yes
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K115 |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 GREY | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K140 |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 ORANGE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | K210 |
Yes
|
|
|
|
| INSULATED END-SLEEVE, REEL, 0.75mm2-8 WHITE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K215 |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 YELLOW | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | K220 |
Yes
|
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 RED | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K230 |
No
|
|
|
| INSULATED END-SLEEVE, REEL, 2.5mm2-8 BLUE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K240 |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 0.5mm2-8 WHITE | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | K310 |
No
|
|
|
|
| INSULATED END-SLEEVE, REEL, 1.0mm2-8 RED | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K320 |
Yes
|
|
|
| INSULATED END-SLEEVE, REEL, 1.5mm2-8 BLACK | EC000005 - Cable end sleeve | 9.0 |
|
Insulated end-sleeves on tape/reel | ENR2023V | K330 |
Yes
|
|
|
- Total: 10
