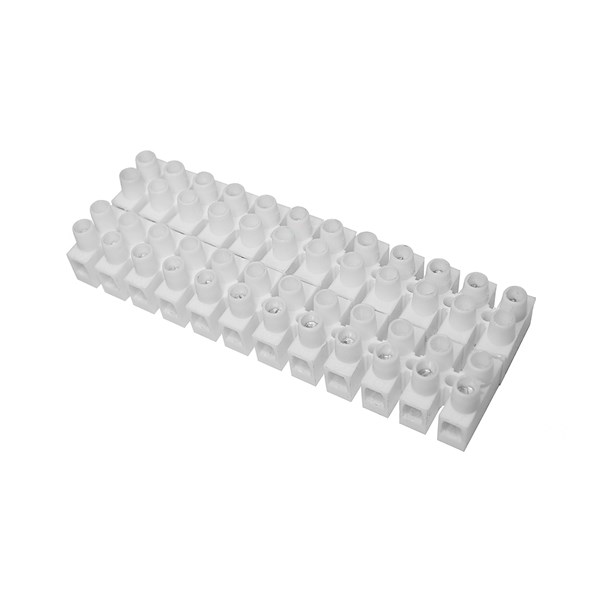

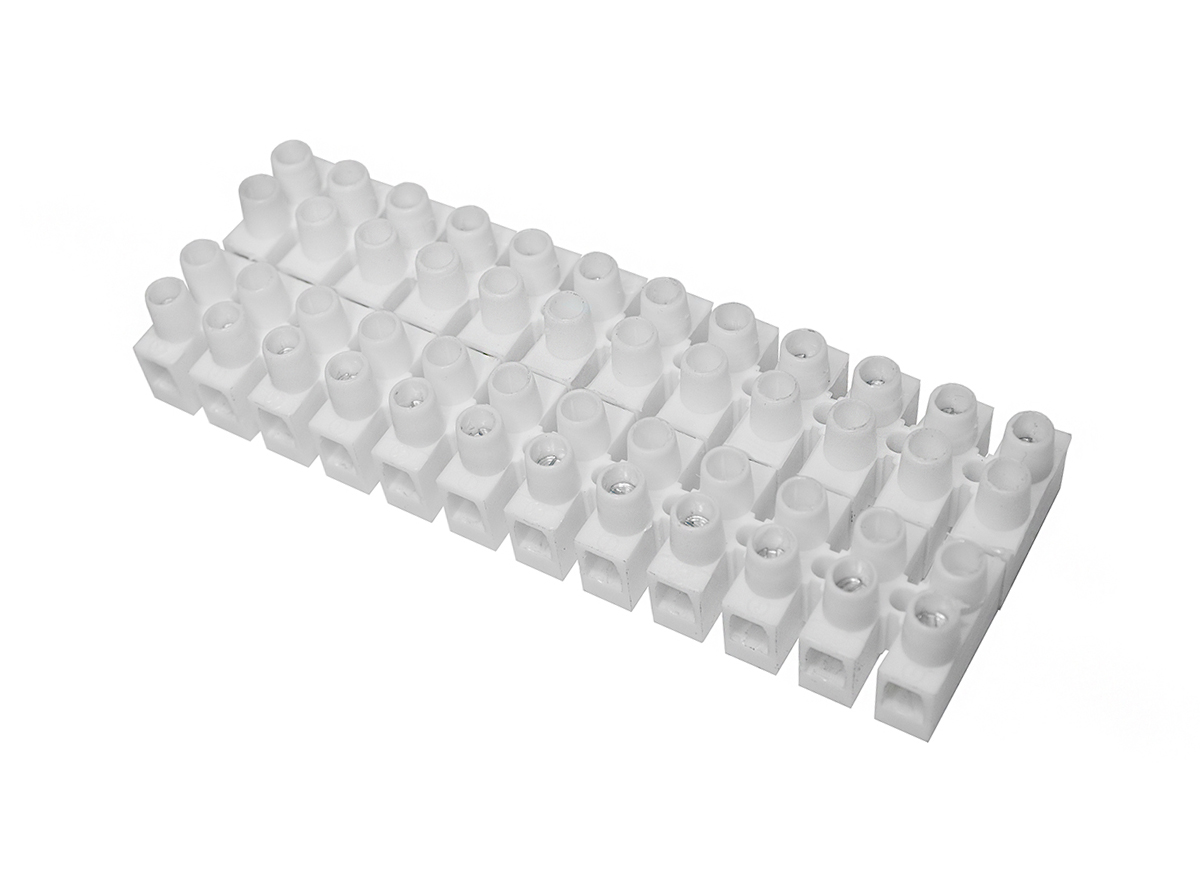

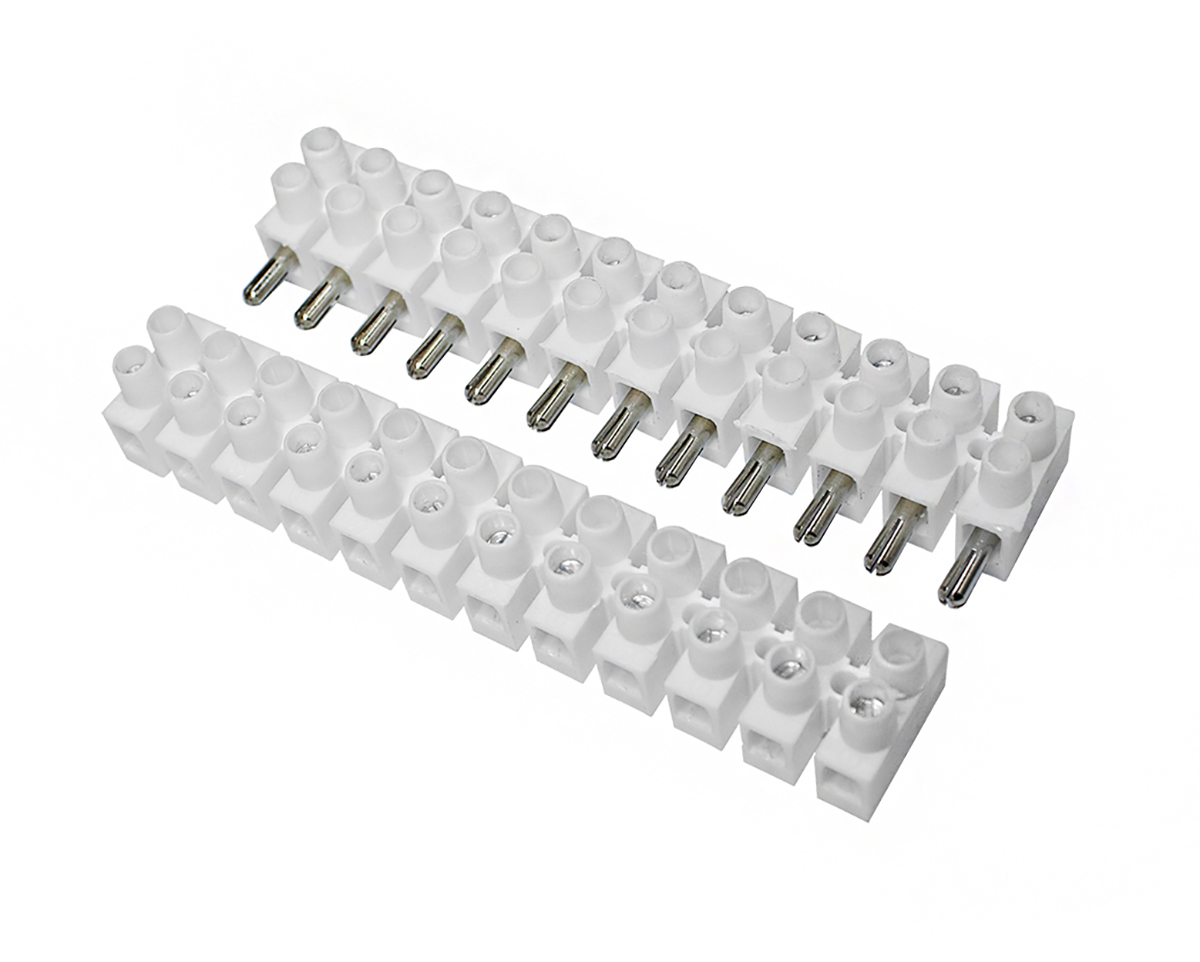

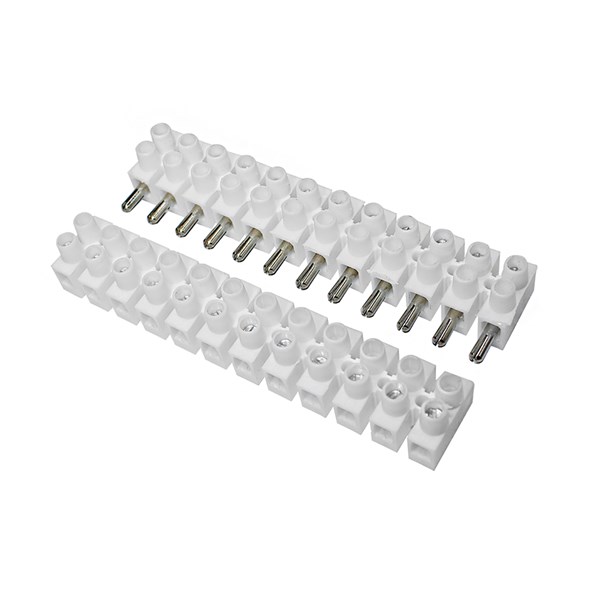

Plintar (skruvkontakt)
OK 430 SP-series
Terminal blocks made in Polypropylen or Nylon.
Wire protection: No
Pole numbers: 12
Rated voltage: 450 V
Temperature range: Black up to 85º C (185º F) and white 110º C (230º F)
Colour: Black or white
Material: T85 (black) or T110 (white)
Technical properties
- Number of poles:
- 12 .
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Transparent:
- No
- Colour:
- White, Black
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 1.5-2.5mm2 | 10 . | pcs |
Yes
|
|
|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 4.0-6.0mm2 | 10 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 1.5-2.5mm2 |
Yes
|
|
|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 4.0-6.0mm2 |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Mounting method | Material insulation body | Transparent | Colour | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 1.5-2.5mm2 | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | White |
Yes
|
|
|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 4.0-6.0mm2 | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | Black |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 1.5-2.5mm2 | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK431PLPSPVIT |
Yes
|
|
|
| KOPPLINGSPLINT, SPINE PLUGS, 12-POL, VIT, 4.0-6.0mm2 | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK433PLPSP |
Yes
|
|
|
- Total: 2
