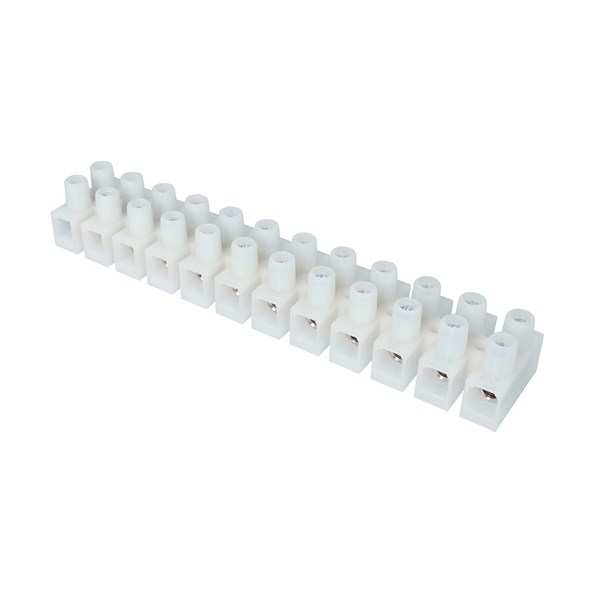

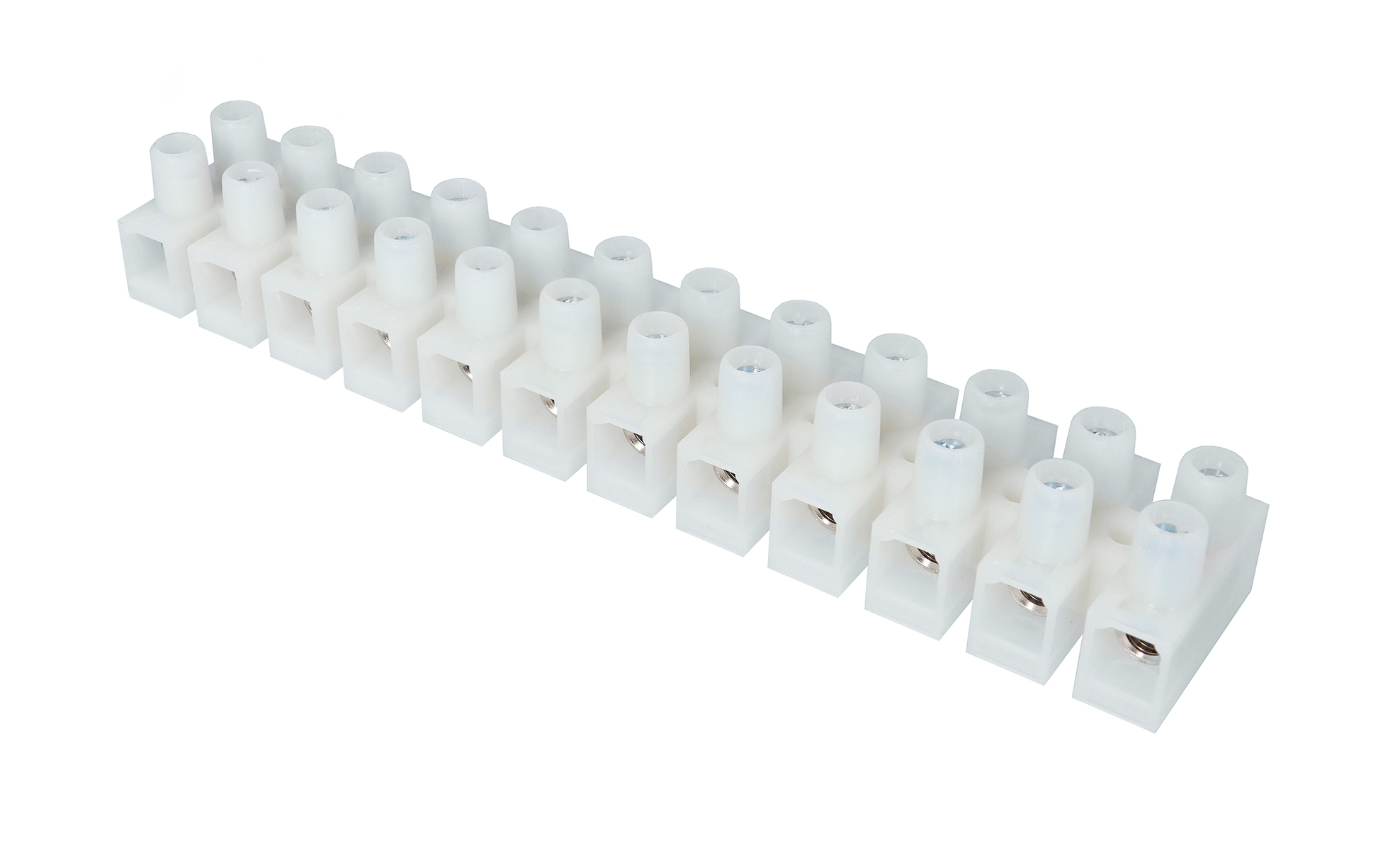

Kopplingsplintar med skruvkontakt utan trådskydd i Konsumentförpackning
OK 430 NY-series
Terminal blocks made in Nylon.
Pole numbers: 12
Rated voltage: 450 V
Temperature range: Up to 110º C (230º F)
Colour: Natural
Material: PA 66
Technical properties
- Number of poles:
- 12 .
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted (plaster)
- Material insulation body:
- Thermoplastic
- Transparent:
- No
- Colour:
- Natural colour
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
OK 43x NY_ExtraData

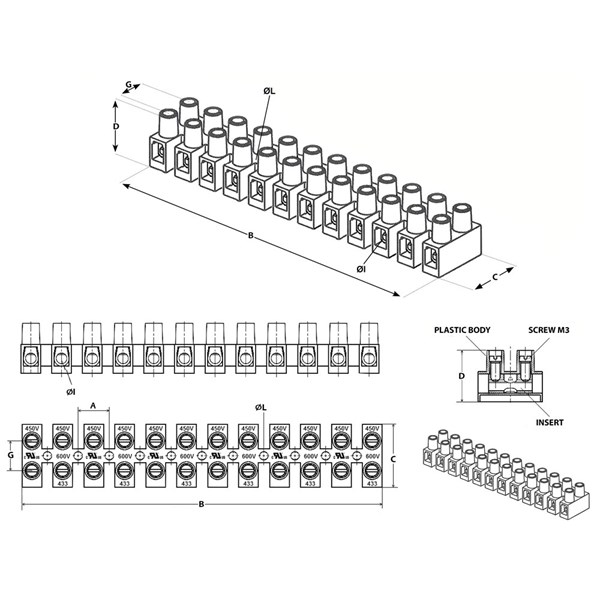

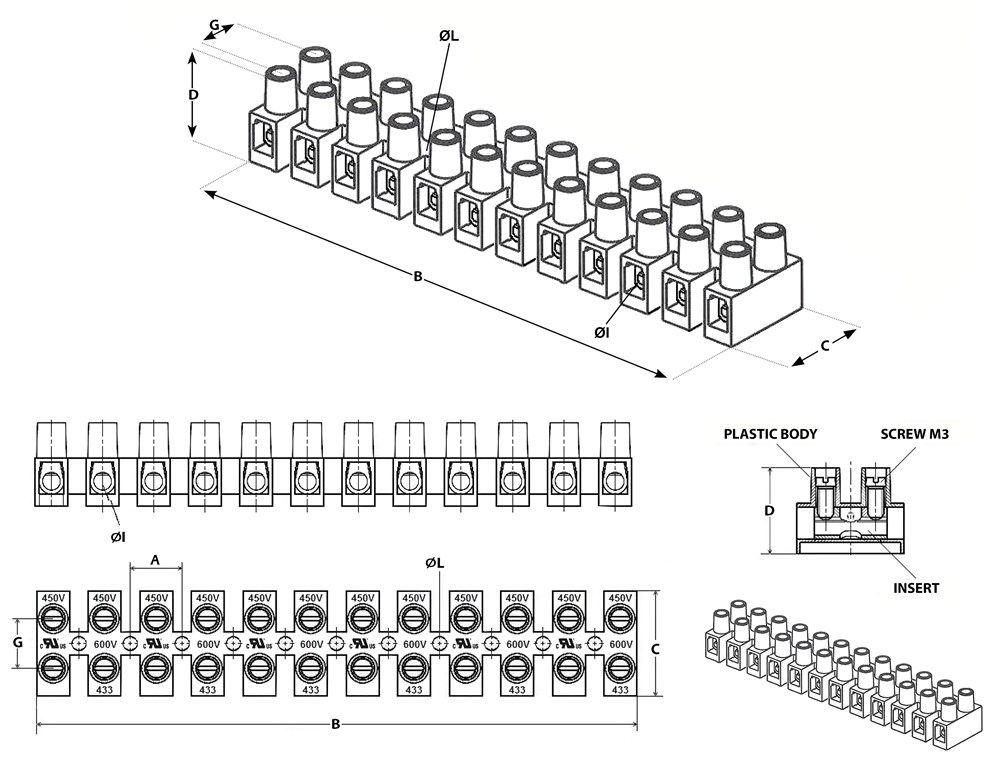

Dimensions
- Total: 5
| Product Description | A | L | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, NATUR, 1.5-2.5mm2 | 8 mm | 2.6 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 2.5-4.0mm2 | 10 mm | 3.1 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 6.0-10.0mm2 | 12 mm | 3.2 mm | 1 . | pck |
Yes
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 10.0-16.0mm2 | 14.5 mm | 4.1 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 16.0-25.0mm2 | 18 mm | 4.5 mm | 1 . | pck |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Availability | ||
|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, NATUR, 1.5-2.5mm2 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 2.5-4.0mm2 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 6.0-10.0mm2 |
Yes
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 10.0-16.0mm2 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 16.0-25.0mm2 |
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Mounting method | Material insulation body | Transparent | Colour | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, NATUR, 1.5-2.5mm2 | 12 . | Screw connection | Screw connection | Surface mounted (plaster) | Thermoplastic | No | Natural colour |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 2.5-4.0mm2 | 12 . | Screw connection | Screw connection | Surface mounted (plaster) | Thermoplastic | No | Natural colour |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 6.0-10.0mm2 | 12 . | Screw connection | Screw connection | Surface mounted (plaster) | Thermoplastic | No | Natural colour |
Yes
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 10.0-16.0mm2 | 12 . | Screw connection | Screw connection | Surface mounted (plaster) | Thermoplastic | No | Natural colour |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 16.0-25.0mm2 | 12 . | Screw connection | Screw connection | Surface mounted (plaster) | Thermoplastic | No | Natural colour |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, NATUR, 1.5-2.5mm2 | EC001284 - Single- and multi-pole terminal strip | 8.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK431NY-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 2.5-4.0mm2 | EC001284 - Single- and multi-pole terminal strip | 8.0, 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK432NY-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 6.0-10.0mm2 | EC001284 - Single- and multi-pole terminal strip | 7.0, 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK434NY-PP1 |
Yes
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 10.0-16.0mm2 | EC001284 - Single- and multi-pole terminal strip | 8.0, 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK435NY-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, NATUR, 16.0-25.0mm2 | EC001284 - Single- and multi-pole terminal strip | 8.0, 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK438NY-PP1 |
No
|
|
|
- Total: 5
