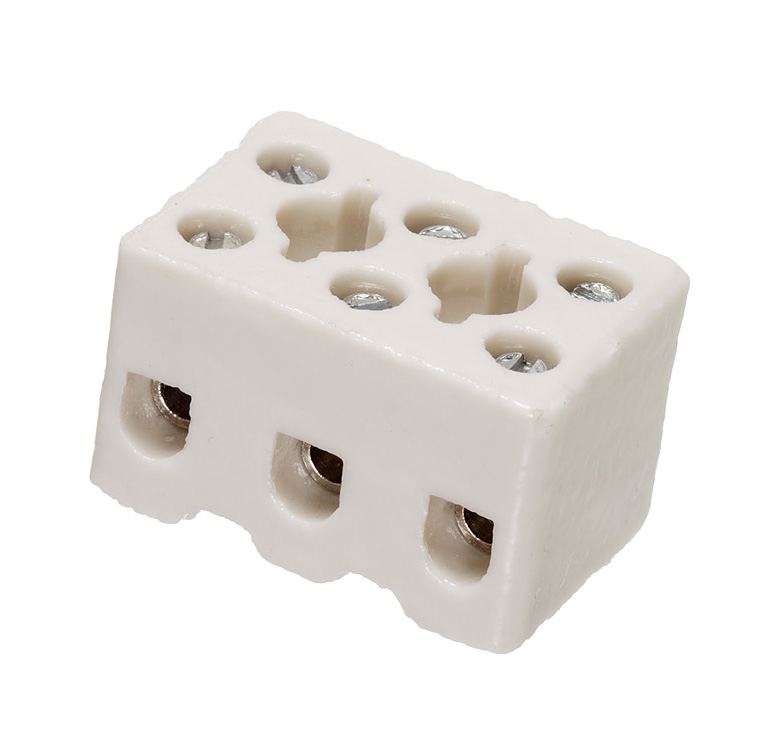

Porcelain connectors type 157 - Adels Contact
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm
Distance: 10.5 mm
Cable area: up to 6 mm² (VDE 2.5 mm²) with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage rating: 400 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.2 mm, cc 10.5 mm
Technical properties
- Number of poles:
- 2 ., 3 .
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Other
- Closing plate required:
- No
- Transparent:
- No
- Colour:
- White
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | MOQ | Unit | Connectable conductor cross section solid-core | Width/grid dimension | Height at lowest possible mounting height | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-6mm2, UTAN TRÅDSKYDD, 157/2 | 20 . | pcs | 0.5-6 mm² | 20 mm | 18 mm | 20 mm |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-6mm2, UTAN TRÅDSKYDD, 157/3 | 10 . | pcs | 0.5-6 mm² | 30 mm | 18 mm | 20 mm |
No
|
|
|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-2.5mm2, TRÅDSKYDD, MITTSTOPP, 157/2 MDS | 10 . | pcs | 0.5-2.5 mm² | 20 mm | 18 mm | 20 mm |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-2.5mm2, TRÅDSKYDD, 157/3 DS | 10 . | pcs | 0.5-2.5 mm² | 30 mm | 18 mm | 20 mm |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Mounting method | Material insulation body | Closing plate required | Transparent | Colour | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-6mm2, UTAN TRÅDSKYDD, 157/2 | 2 . | Screw connection | Screw connection | Surface mounted | Other | No | No | White |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-6mm2, UTAN TRÅDSKYDD, 157/3 | 3 . | Screw connection | Screw connection | Surface mounted | Other | No | No | White |
No
|
|
|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-2.5mm2, TRÅDSKYDD, MITTSTOPP, 157/2 MDS | 2 . | Screw connection | Screw connection | Surface mounted | Other | No | No | White |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-2.5mm2, TRÅDSKYDD, 157/3 DS | 3 . | Screw connection | Screw connection | Surface mounted | Other | No | No | White |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-6mm2, UTAN TRÅDSKYDD, 157/2 | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Porcelain | KOPPLINGSPLINT PORSLIN, 2-POL, VIT | 1778412202 |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-6mm2, UTAN TRÅDSKYDD, 157/3 | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Porcelain | KOPPLINGSPLINT PORSLIN, 3-POL, VIT | 1778412203 |
No
|
|
|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-2.5mm2, TRÅDSKYDD, MITTSTOPP, 157/2 MDS | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Porcelain | KOPPLINGSPLINT PORSLIN, 2-POL, VIT | 1778412302M |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-2.5mm2, TRÅDSKYDD, 157/3 DS | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Porcelain | KOPPLINGSPLINT PORSLIN, 3-POL, VIT | 1778412303 |
Yes
|
|
|
- Total: 4
