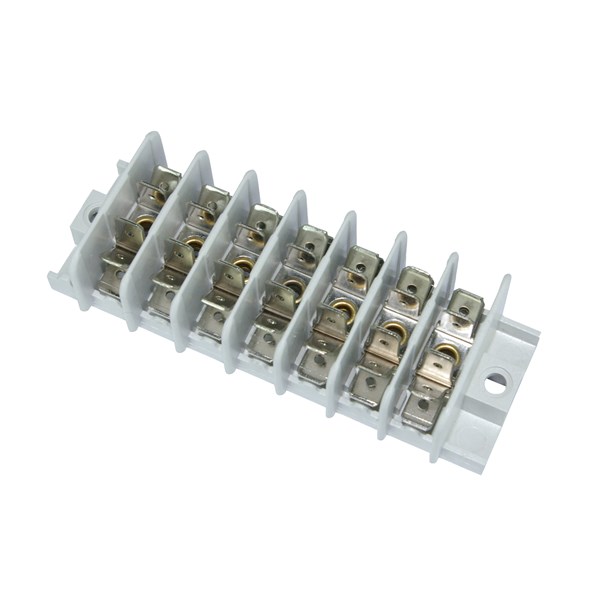

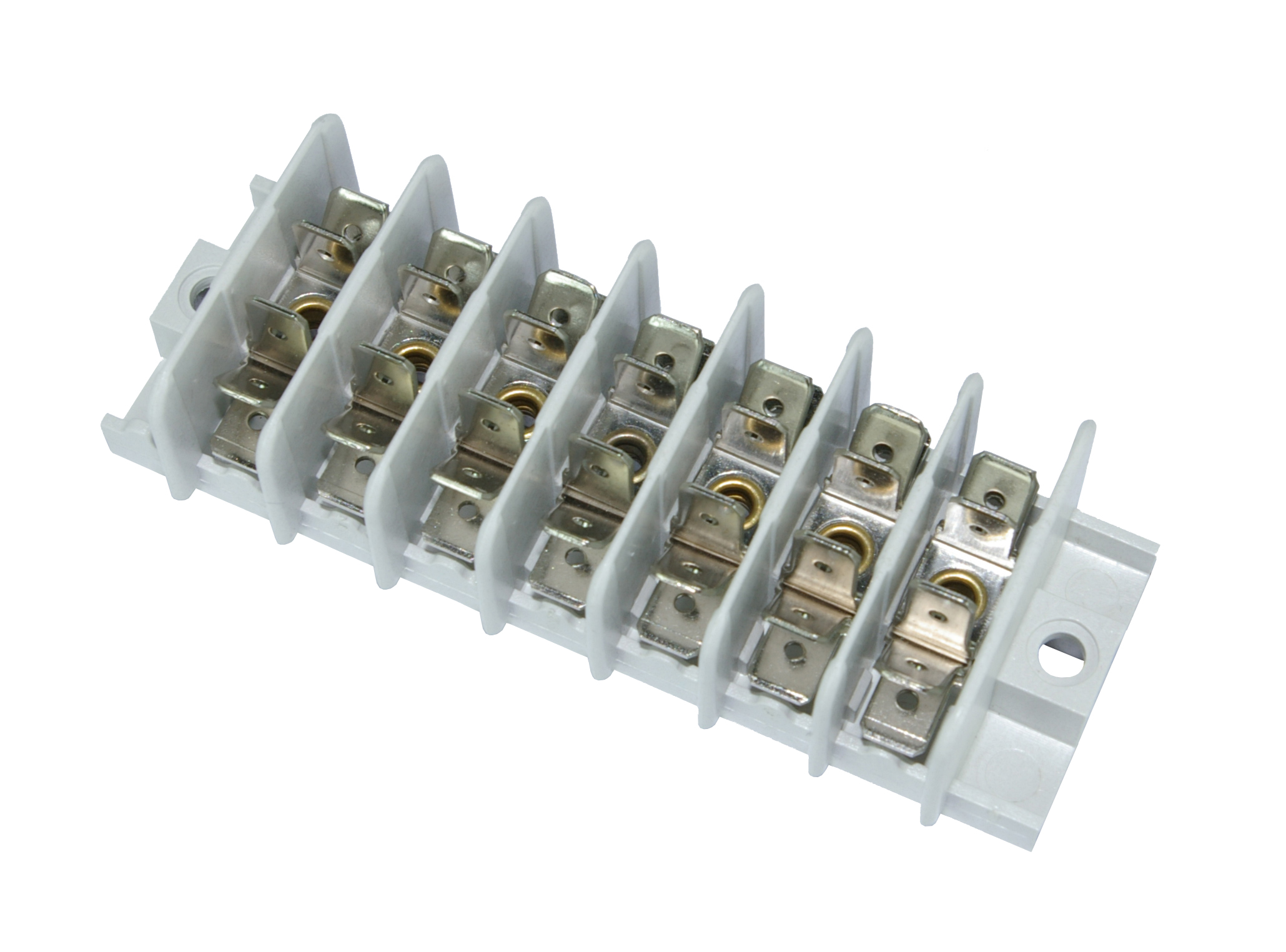

501-Serien. Förgreningsplintar med flatstift.
Kopplingsplintar med 6.3 x 0.8 mm flatstiftsanslutning.
Varje pol har 6 anslutningar.
Plastmaterial: Polyfenylen UL94 V1
Flatstiftsmaterial: Mässing eller stål
Max Temp: 105° C
Färg: Vit
OK 501/5 (A+B+C): 5-polig
OK 501/7 (A+B+C): 7-polig
OK 501/12 (A+B+C): 12-polig
Avstånd mellan skruvhål: 66 mm/88 mm.
Technical properties
- Number of poles:
- 5 ., 7 ., 12 .
- Type of electrical connection 1:
- Flat plug-in connection
- Type of electrical connection 2:
- Flat plug-in connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Transparent:
- No
- Colour:
- Green
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
OK 501_ms
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| TERMINAL BLOCK 5-POL | 290 . | pcs |
Yes
|
|
|
| TERMINAL BLOCK 7-POL | 230 . | pcs |
Yes
|
|
|
| TERMINAL BLOCK 12-POL | 100 . | pcs |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Availability | ||
|---|---|---|---|
| TERMINAL BLOCK 5-POL |
Yes
|
|
|
| TERMINAL BLOCK 7-POL |
Yes
|
|
|
| TERMINAL BLOCK 12-POL |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Mounting method | Material insulation body | Transparent | Colour | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| TERMINAL BLOCK 5-POL | 5 . | Flat plug-in connection | Flat plug-in connection | Surface mounted | No | Green |
Yes
|
|
|
|
| TERMINAL BLOCK 7-POL | 7 . | Flat plug-in connection | Flat plug-in connection | Surface mounted | No | Green |
Yes
|
|
|
|
| TERMINAL BLOCK 12-POL | 12 . | Flat plug-in connection | Flat plug-in connection | Surface mounted | Thermoplastic | No | Green |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TERMINAL BLOCK 5-POL | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - TAB | OK501/5A+B+C |
Yes
|
|
|
|
| TERMINAL BLOCK 7-POL | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - TAB | OK501/7A+B+C |
Yes
|
|
|
|
| TERMINAL BLOCK 12-POL | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - TAB | TERMINALBLOCK | OK501/12A+B+CSTÅL |
Yes
|
|
|
- Total: 3
