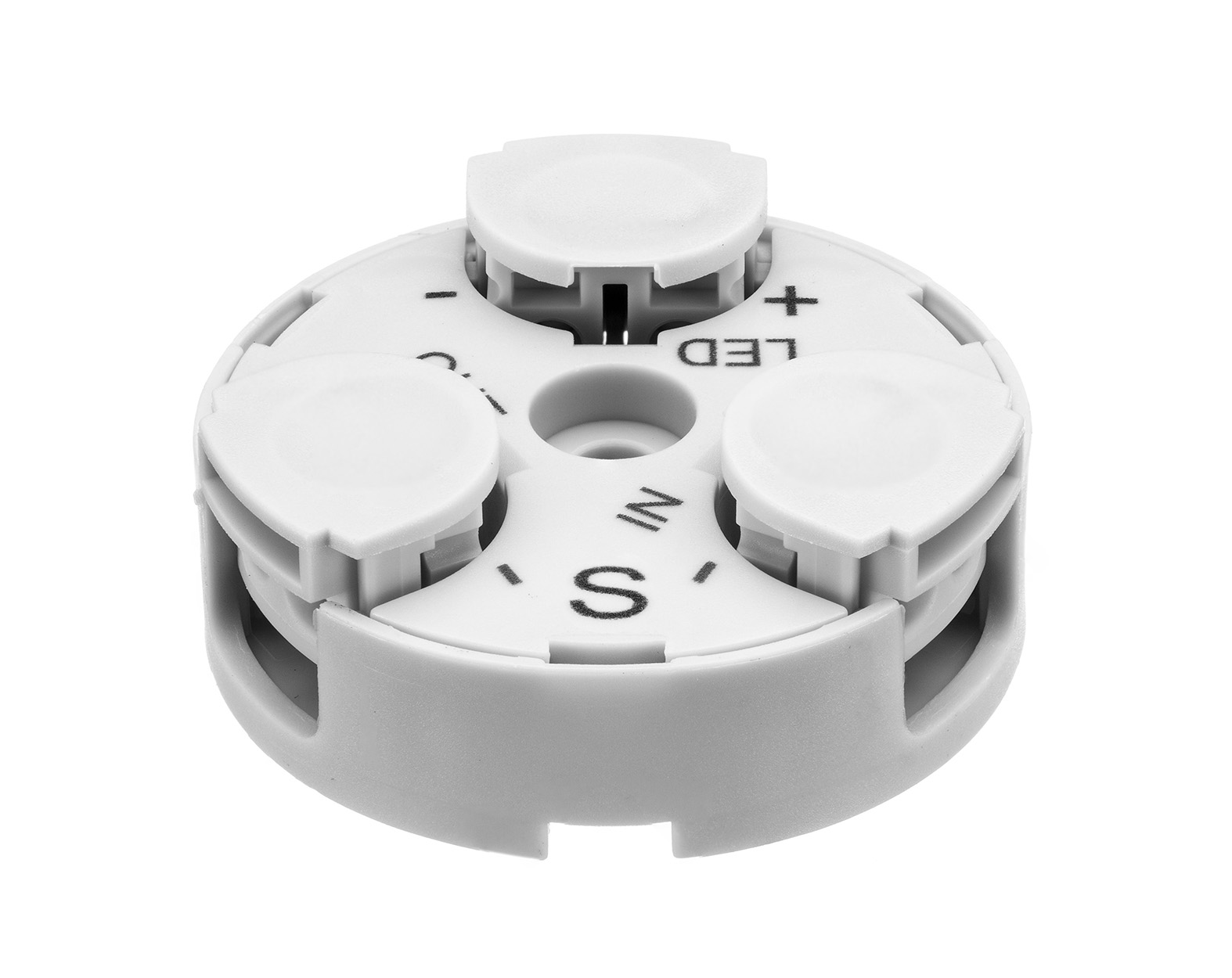

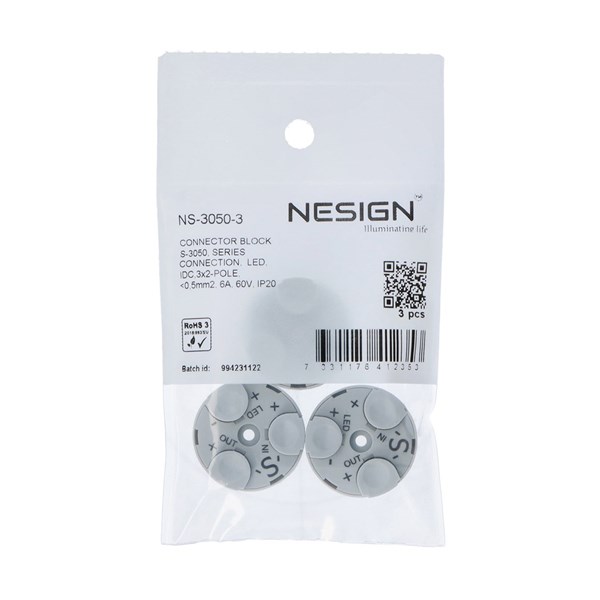

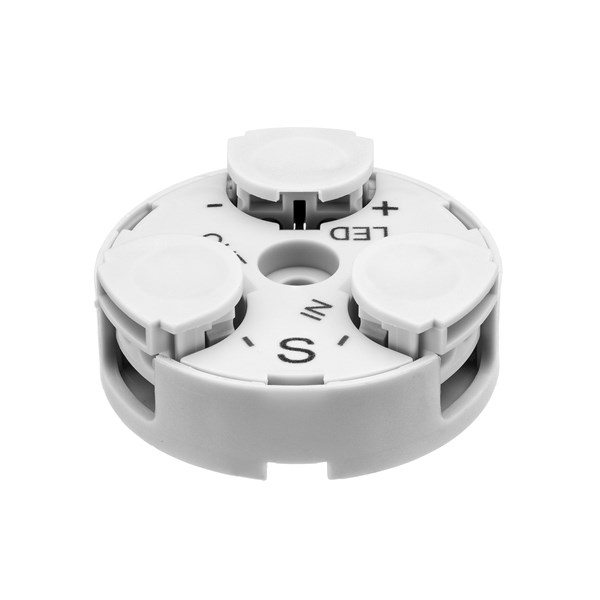

KOPPLINGSPLINTAR LED - S 3050 - Konsumentförpackning

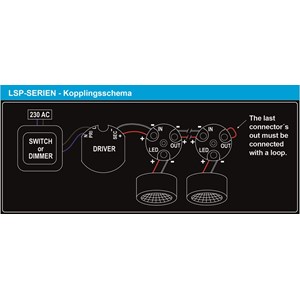

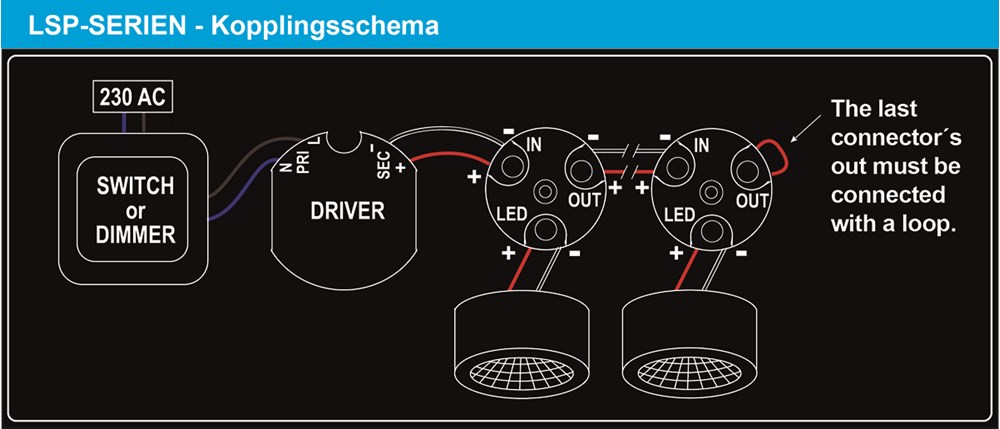

Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
Technical properties
- Number of poles:
- 2 .
- Type of electrical connection 1:
- Insulation displacement connection
- Type of electrical connection 2:
- Insulation displacement connection
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

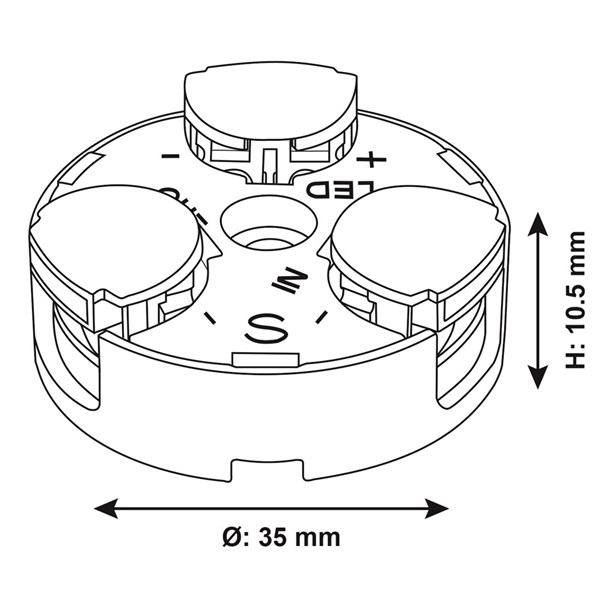

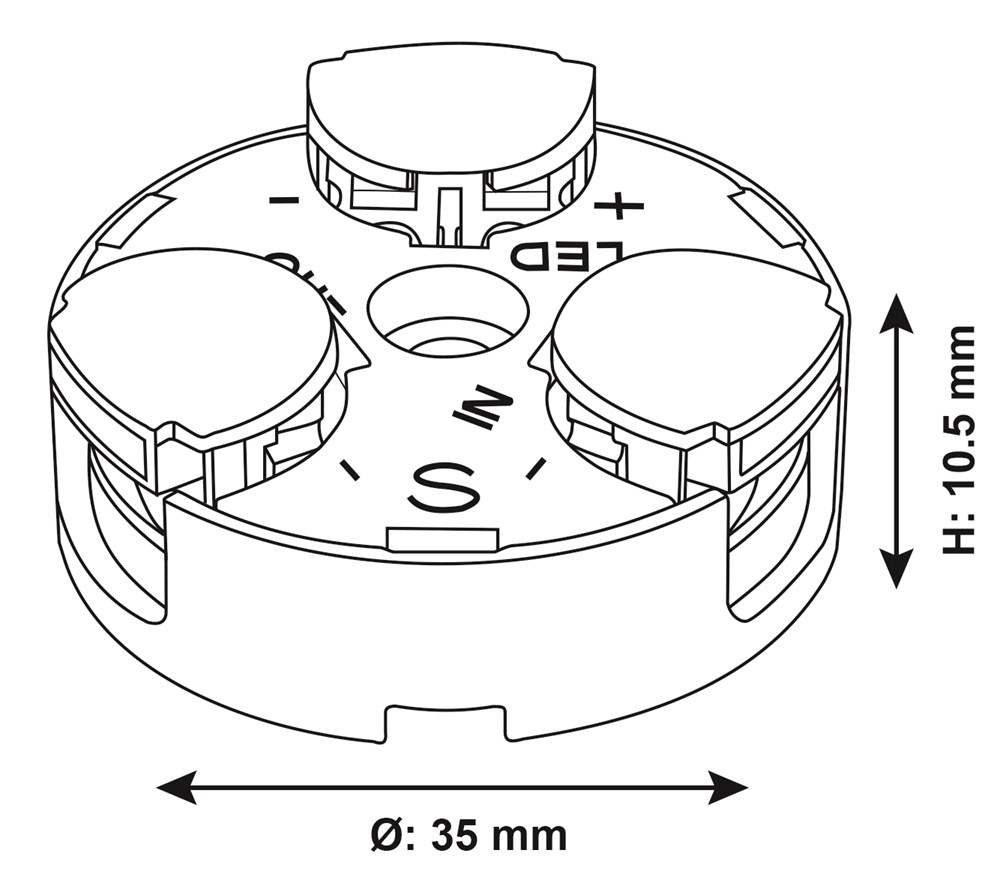

Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING, 3x2-POL, <0,5mm2, 6A, 60V, IP20, 5st | 10 . | pck |
Yes
|
|
|
| CONNECTOR BLOCK S-3050, SERIES CONNECTION LED, IDC,3x2-POLE, <0,5mm2, 6A, 60V, IP20 | 10 . | pck |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Availability | ||
|---|---|---|---|---|---|---|
| KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING, 3x2-POL, <0,5mm2, 6A, 60V, IP20, 5st | Insulation displacement connection | Insulation displacement connection |
Yes
|
|
|
|
| CONNECTOR BLOCK S-3050, SERIES CONNECTION LED, IDC,3x2-POLE, <0,5mm2, 6A, 60V, IP20 | 2 . | Insulation displacement connection | Insulation displacement connection |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING, 3x2-POL, <0,5mm2, 6A, 60V, IP20, 5st | EC001894 - Distributor assembly terminal blocks | 9.0 |
|
Lightning connectors | KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING | NS-3050-5 |
Yes
|
|
|
| CONNECTOR BLOCK S-3050, SERIES CONNECTION LED, IDC,3x2-POLE, <0,5mm2, 6A, 60V, IP20 | EC001894 - Distributor assembly terminal blocks | 9.0 |
|
Lightning connectors | KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING | NS-3050-3 |
No
|
|
|
- Total: 2
