408-6 F

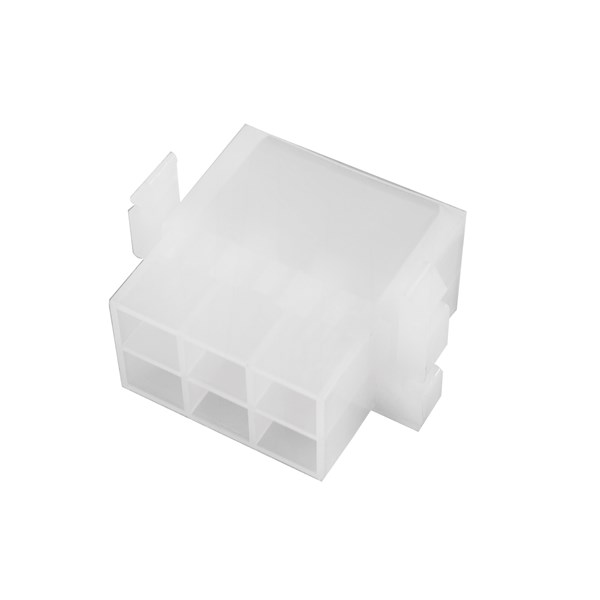

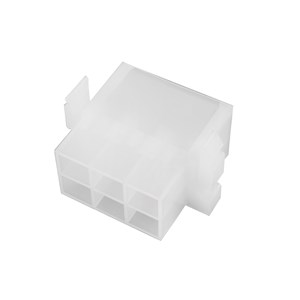

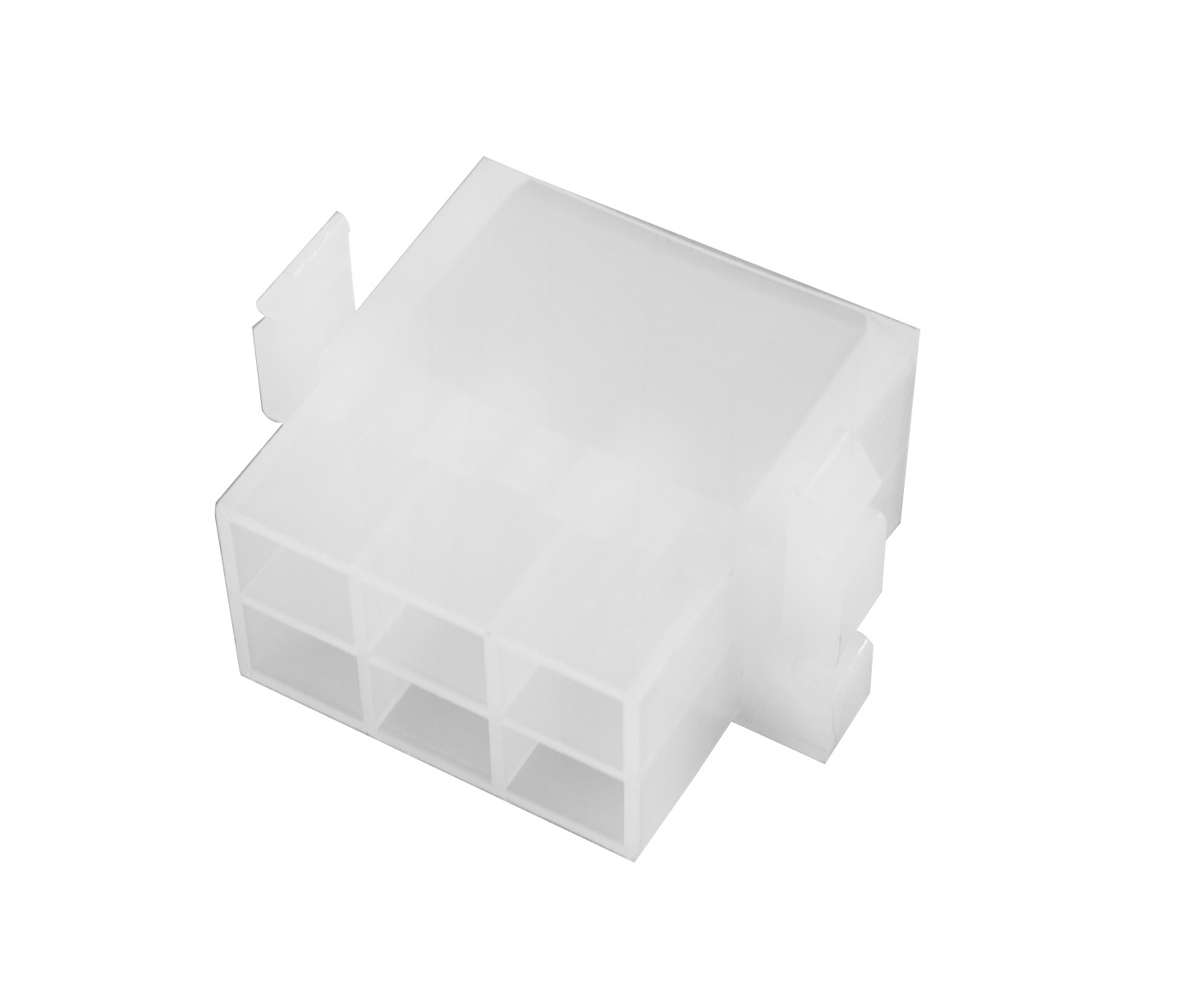

HOUSING 6-POL FEMALE WITH WINGS
408-6 F
- Availability:
-
Yes
- Total: 1
Related items
Kopplingsblock
408-serien
Kopplingsblock som används tillsammans med 6.3 x 0.8 mm flatstift och flatstiftshylsor med nabb (B 409/410/411 H & B 409/410/411 FL).
Material: Nylon PA 6.6
Märkspänning: 230 V AC
Färg: Naturfärgade
M=Male, används med flatstiftshylsor.
F=Female, används med flatstift.
Det 2-poliga kontaktblocket finns i 2 varianter.
F & M ligger kontakterna på samma håll.
FS & MS ligger kontakterna i T-form.
Det 6-poliga kontaktblocket finns i 2 varianter.
Med (F & M) resp. utan vingar (FU & MU).
- Total: 1
Product Properties
| Number of poles | 6 . |
|---|---|
| Model | Bushing |
| Insulation | Fully isolated |
| Colour insulation | Other |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Material | Other |
| Type of connector block | Stiftdon |
Dimensions
| MOQ | 10 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 1.5-6 mm² |
| AWG-range | 10-16 . |
| Plug dimensions | Other |
Logistics
| Barcode | 733117615777 |
|---|---|
| Country of origin | TR |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Stock code | 408-6 F |
| Taric code | 85389099 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Connector blocks |
| Alternative SKU | 408-6F |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
