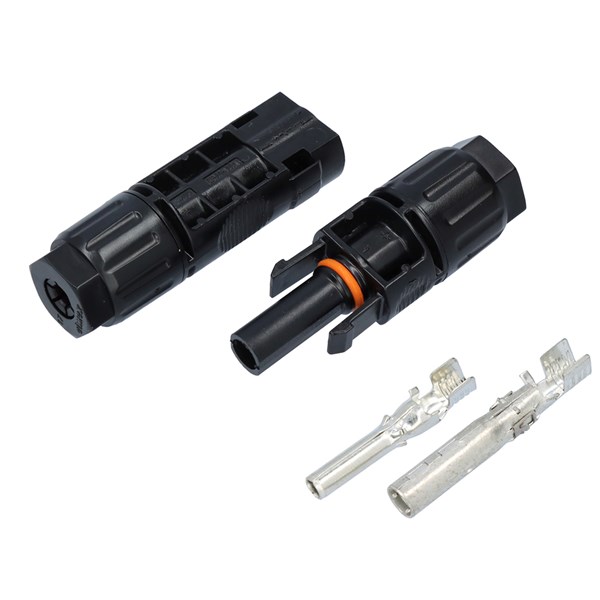

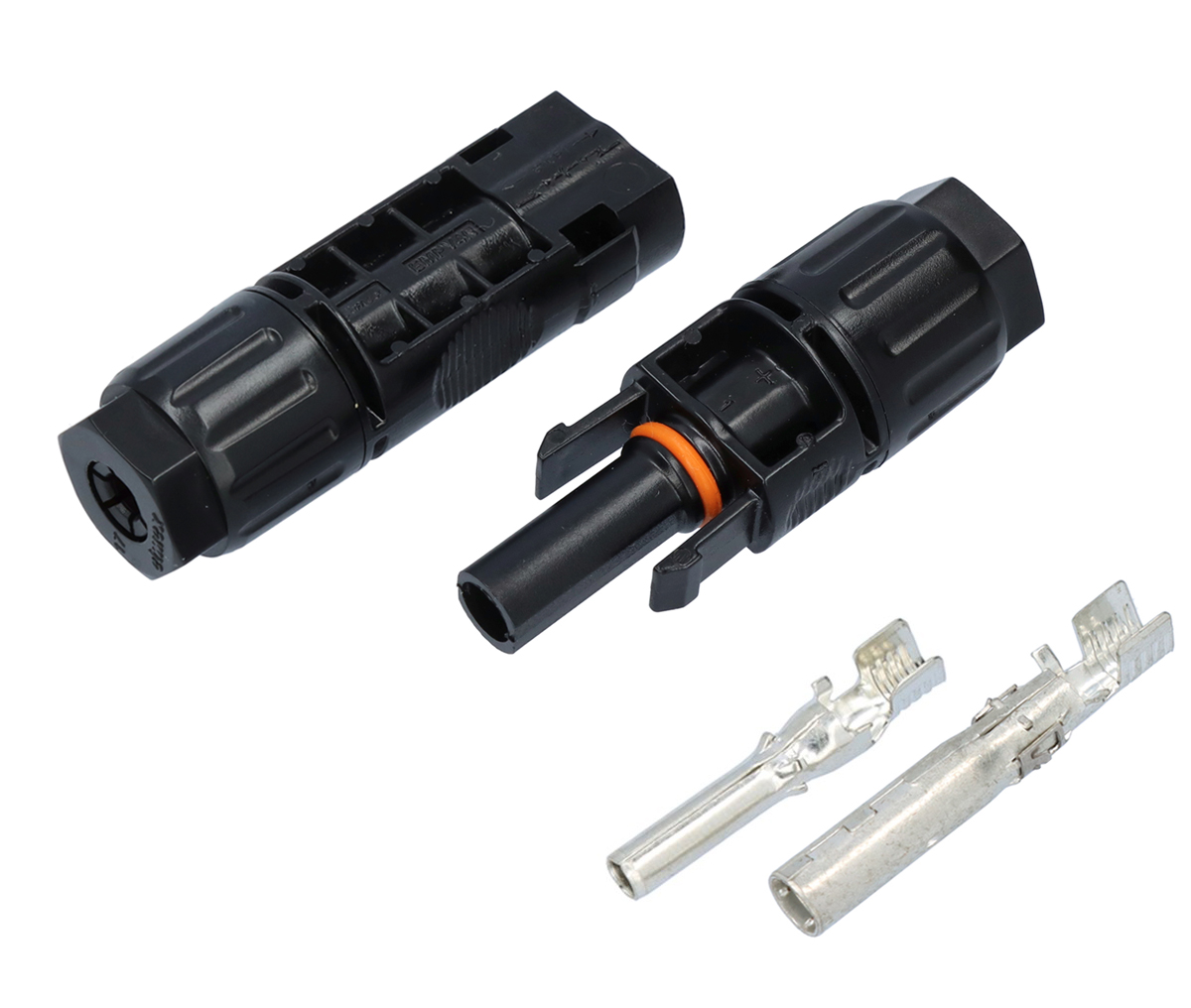

Solar cell connectors, MC4
Solar panel connectors.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
Technical properties
- Housing material:
- Plastic
- Rated current:
- 54 A
- Rated voltage:
- 1500 V
- Ambient temperature:
- -40-85 °C
- Type of housing:
- Straight
- Coating housing:
- Plastic-coated
- Type of locking:
- Double locking levers
- Screened:
- No
- With status indication:
- No
- Degree of protection (IP), mounted:
- IP68
- Material of contact surface:
- Brass
- With protective conductor:
- No
- Rated impulse sparkover voltage:
- 16 kV
- Rated insulation voltage:
- 8000 V
- Contact type:
- Bus, Pin
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Tillbehör för Installation av solceller
Dimensions
- Total: 2
| Product Description | For cable outer diameter | Weight | MOQ | Unit | Rated voltage | Connectable conductor cross section fine-strand without cable end sleeve | Connectable conductor cross section solid-core | Connectable conductor cross section multi-wired | Ambient temperature | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SOLAR CELL CONNECTORS MC4, 2 PARTS HOUSING FOR PIN & PIN, 4-6mm² 1500V (FT-03) | 2.5-6 mm | 10.5 g | 10 . | pcs | 1500 V | 2.5-6 mm² | 2.5-6 mm² | 2.5-6 mm² | -40-85 °C |
Yes
|
|
|
| SOLAR CELL CONNECTORS MC4, 2 PARTS SOCKET HOUSING & SOCKET, 4-6mm², 1500V (FT-03) | 2.5-6 mm | 9.1 g | 10 . | pcs | 1500 V | 2.5-6 mm² | 2.5-6 mm² | 2.5-6 mm² | -40-85 °C |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Degree of protection (IP), mounted | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| SOLAR CELL CONNECTORS MC4, 2 PARTS HOUSING FOR PIN & PIN, 4-6mm² 1500V (FT-03) | IP68 |
|
Yes
|
|
|
| SOLAR CELL CONNECTORS MC4, 2 PARTS SOCKET HOUSING & SOCKET, 4-6mm², 1500V (FT-03) | IP68 |
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Housing material | Rated current | Rated voltage | Ambient temperature | Type of housing | Coating housing | Type of locking | Screened | With status indication | Degree of protection (IP), mounted | Material of contact surface | With protective conductor | Rated impulse sparkover voltage | Rated insulation voltage | Contact type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SOLAR CELL CONNECTORS MC4, 2 PARTS HOUSING FOR PIN & PIN, 4-6mm² 1500V (FT-03) | Plastic | 54 A | 1500 V | -40-85 °C | Straight | Plastic-coated | Double locking levers | No | No | IP68 | Brass | No | 16 kV | 8000 V | Pin |
Yes
|
|
|
| SOLAR CELL CONNECTORS MC4, 2 PARTS SOCKET HOUSING & SOCKET, 4-6mm², 1500V (FT-03) | Plastic | 54 A | 1500 V | -40-85 °C | Straight | Plastic-coated | Double locking levers | No | No | IP68 | Brass | No | 16 kV | 8000 V | Bus |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SOLAR CELL CONNECTORS MC4, 2 PARTS HOUSING FOR PIN & PIN, 4-6mm² 1500V (FT-03) | EC002635 - Circular connector for field assembly (industrial connector) | 9.0 |
|
Solar Cell Connectors | SCK2023 ENR2023V SKV2024ERIK1 | MC4SD61500V |
Yes
|
|
|
| SOLAR CELL CONNECTORS MC4, 2 PARTS SOCKET HOUSING & SOCKET, 4-6mm², 1500V (FT-03) | EC002635 - Circular connector for field assembly (industrial connector) | 9.0 |
|
Solar Cell Connectors | SCK2023 ENR2023V SKV2024ERIK1 | MC4HD61500V |
Yes
|
|
|
- Total: 2
