MC4 HD 6 1500V

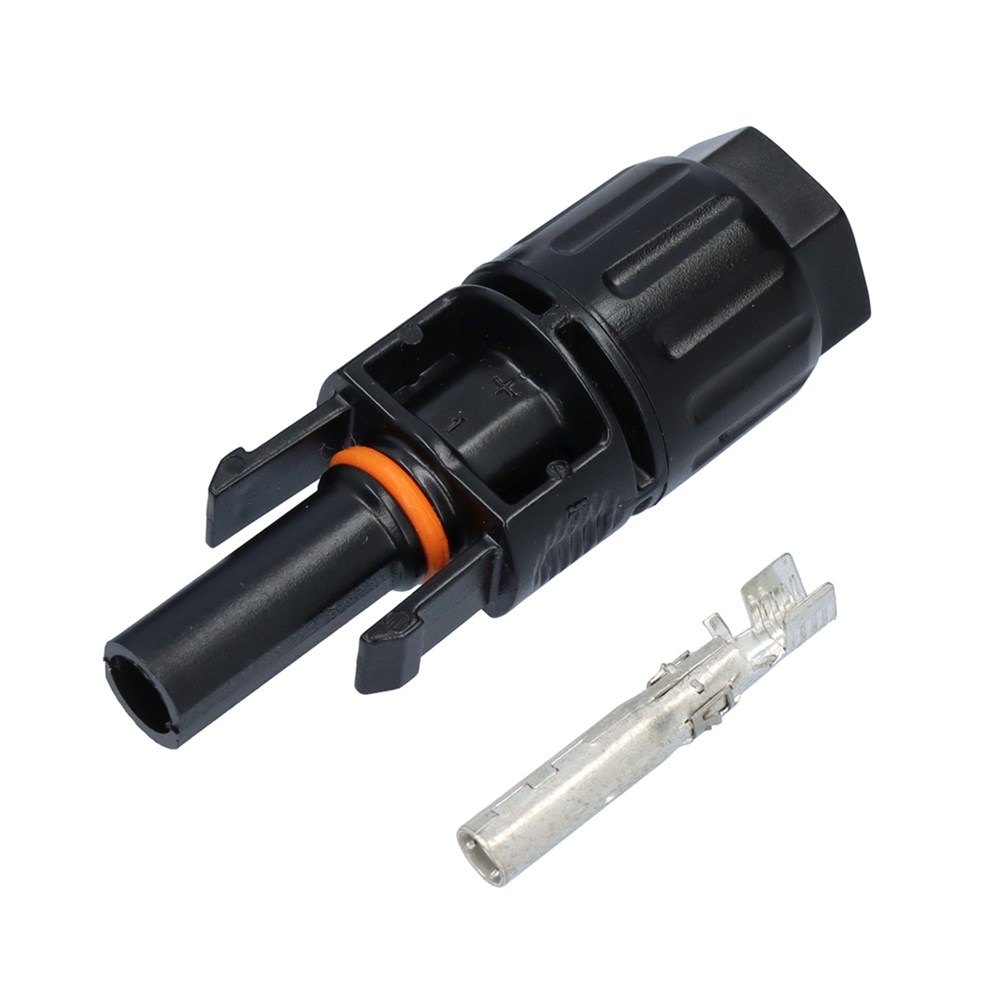

SOLAR CELL CONNECTORS MC4, 2 PARTS SOCKET HOUSING & SOCKET, 4-6mm², 1500V (FT-03)
MC4 HD 6 1500V
- Availability:
-
Yes
- Total: 1
Related items
Solar cell connectors, MC4
Solar panel connectors.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
- Total: 1
E2740879
Product Properties
| Housing material | Plastic |
|---|---|
| Rated current | 54 A |
| Rated voltage | 1500 V |
| Ambient temperature | -40-85 °C |
| Type of housing | Straight |
| Coating housing | Plastic-coated |
| Type of locking | Double locking levers |
| Screened | No |
| With status indication | No |
| Degree of protection (IP), mounted | IP68 |
| Material of contact surface | Brass |
| With protective conductor | No |
| Rated impulse sparkover voltage | 16 kV |
| Rated insulation voltage | 8000 V |
| Contact type | Bus |
Dimensions
| For cable outer diameter | 2.5-6 mm |
|---|---|
| Weight | 9.1 g |
| MOQ | 10 . |
| Unit | pcs |
| Rated voltage | 1500 V |
| Connectable conductor cross section fine-strand without cable end sleeve | 2.5-6 mm² |
| Connectable conductor cross section solid-core | 2.5-6 mm² |
| Connectable conductor cross section multi-wired | 2.5-6 mm² |
| Ambient temperature | -40-85 °C |
Logistics
| Barcode | 733117614307 |
|---|---|
| Country of origin | IN |
| E-no | E2740879 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Stock code | MC4 HD 6 1500V |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Degree of protection (IP), mounted | IP68 |
|---|---|
| Inflammability class of insulation material according to with UL94 | V1 |
Other info
| ETIM-Class | EC002635 - Circular connector for field assembly (industrial connector) |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Solar Cell Connectors |
| Search Description | SCK2023 ENR2023V SKV2024ERIK1 |
| Alternative SKU | MC4HD61500V |
Compliance
| CA Proposition 65 | In compliance |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
