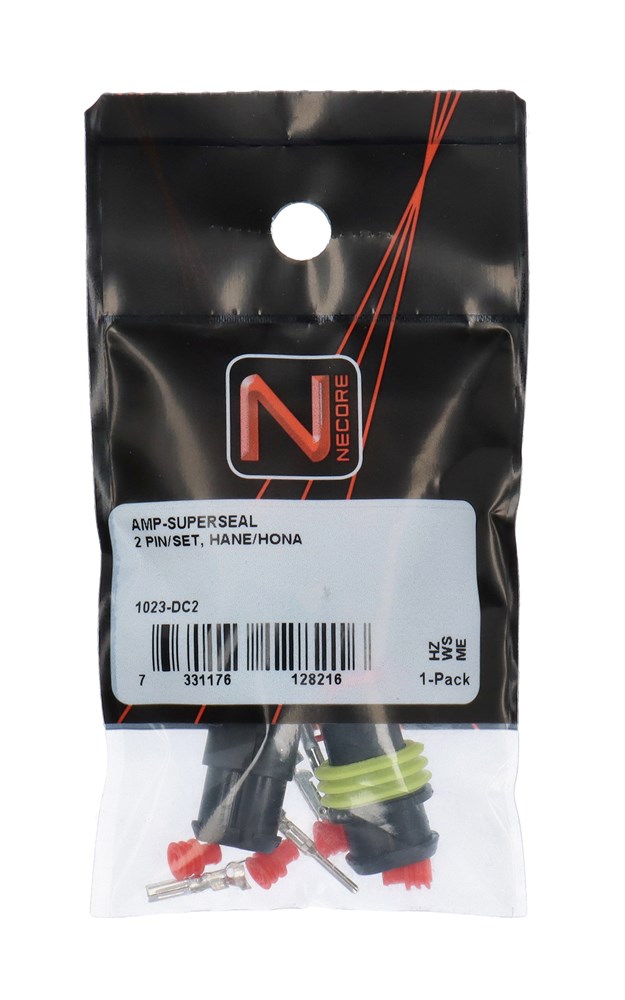

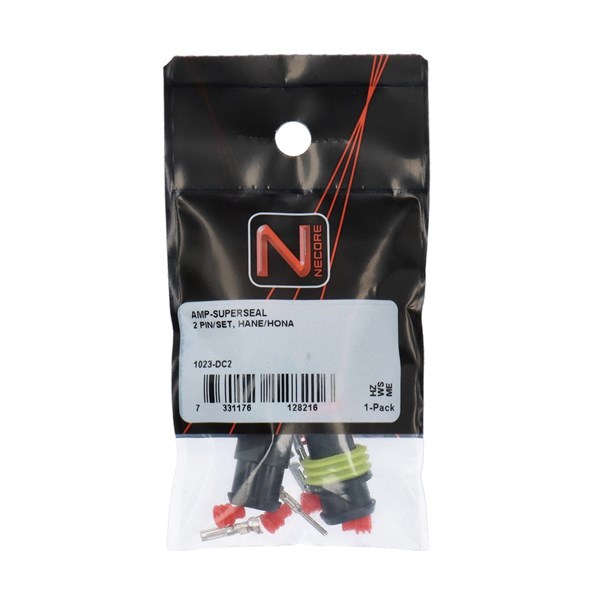

AMP Superseal 1.5
Vattentäta kontaktdon.

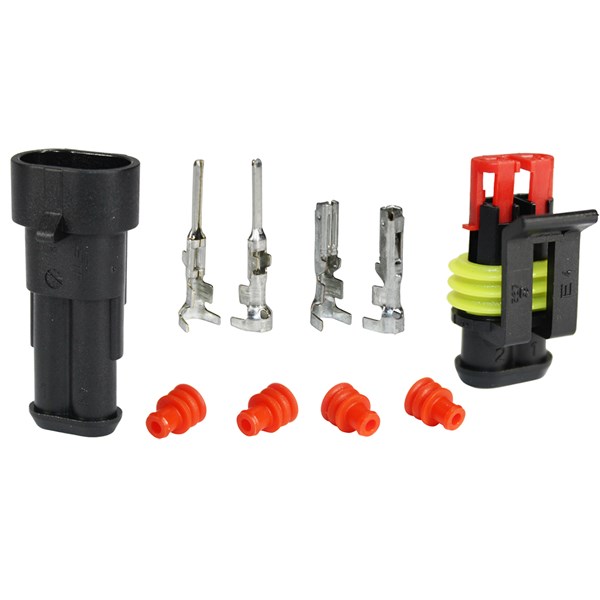

Levereras i sats med han och honkontakt.
Finns med 1 pol till 5 poler.
Technical properties
- Housing material:
- Polyamide (PA)
- Connection type:
- Crimp
- Rated current:
- 14 A
- Rated voltage:
- 24 V
- Contact material:
- Other
- Surface treatment contacts:
- Tinned
- Type of locking:
- Integrated in plug-in connector
- Degree of protection (IP):
- IP67
- Model:
- Other
- Pole codification:
- 1, 2
- Number of connections per pole:
- 1 .
- Max. continuous temperature resistance contact part:
- -40-125 °C
- Max. continuous temperature resistance strain relief:
- -40-125 °C
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Connection cross section (solid-core) | Connection cross section (fine-strand) | Width | Height | MOQ | Unit | Rated voltage | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AMP-SUPERSEAL 1 pin / set, male/female | 1 . | pcs |
Yes
|
|
|
||||||
| AMP-SUPERSEAL 2 pin / set, male/female | 1.5 mm² | 1.5 mm² | 17 mm | 9.3 mm | 1 . | pcs | 24 V | 42 mm |
Yes
|
|
|
| AMP-SUPERSEAL 3 pin / set, male/female | 1 . | pcs |
Yes
|
|
|
||||||
| AMP-SUPERSEAL 4 pin / set, male/female | 1 . | pcs |
Yes
|
|
|
||||||
| AMP-SUPERSEAL 5 pin / set, male/female | 1 . | pcs |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| AMP-SUPERSEAL 1 pin / set, male/female |
Yes
|
|
|
|
| AMP-SUPERSEAL 2 pin / set, male/female | IP67 |
Yes
|
|
|
| AMP-SUPERSEAL 3 pin / set, male/female |
Yes
|
|
|
|
| AMP-SUPERSEAL 4 pin / set, male/female |
Yes
|
|
|
|
| AMP-SUPERSEAL 5 pin / set, male/female |
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Housing material | Connection type | Rated current | Rated voltage | Contact material | Surface treatment contacts | Type of locking | Degree of protection (IP) | Model | Pole codification | Number of connections per pole | Max. continuous temperature resistance contact part | Max. continuous temperature resistance strain relief | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AMP-SUPERSEAL 1 pin / set, male/female |
Yes
|
|
|
|||||||||||||
| AMP-SUPERSEAL 2 pin / set, male/female | Polyamide (PA) | Crimp | 14 A | 24 V | Other | Tinned | Integrated in plug-in connector | IP67 | Other | 1, 2 | 1 . | -40-125 °C | -40-125 °C |
Yes
|
|
|
| AMP-SUPERSEAL 3 pin / set, male/female |
Yes
|
|
|
|||||||||||||
| AMP-SUPERSEAL 4 pin / set, male/female |
Yes
|
|
|
|||||||||||||
| AMP-SUPERSEAL 5 pin / set, male/female |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| AMP-SUPERSEAL 1 pin / set, male/female | EC002560 - Plug-in connector for plug-in building installation | 9.0 | AMP Superseal | AMP SUPERSEAL 1.5 | 1023-DC1 |
Yes
|
|
|
| AMP-SUPERSEAL 2 pin / set, male/female | EC002560 - Plug-in connector for plug-in building installation | 9.0 | AMP Superseal | AMP SUPERSEAL 1.5 | 1023-DC2 |
Yes
|
|
|
| AMP-SUPERSEAL 3 pin / set, male/female | EC002560 - Plug-in connector for plug-in building installation | 9.0 | AMP Superseal | AMP SUPERSEAL 1.5 | 1023-DC3 |
Yes
|
|
|
| AMP-SUPERSEAL 4 pin / set, male/female | EC002560 - Plug-in connector for plug-in building installation | 9.0 | AMP Superseal | AMP SUPERSEAL 1.5 | 1023-DC4 |
Yes
|
|
|
| AMP-SUPERSEAL 5 pin / set, male/female | EC002560 - Plug-in connector for plug-in building installation | 9.0 | AMP Superseal | AMP SUPERSEAL 1.5 | 1023-DC5 |
Yes
|
|
|
- Total: 5
