360 view
20HPS
SPLIT BOLT CONNECTOR 16-70mm2, AWG 2/0-6
20HPS
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
Product Properties
| Material main conductor | Aluminium/copper |
|---|---|
| Material branch conductor | Aluminium/copper |
| Terminal insulated | No |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Type of connection | Screwed connection |
| Max Temp | 150 °C |
| Surface protection | Tinned |

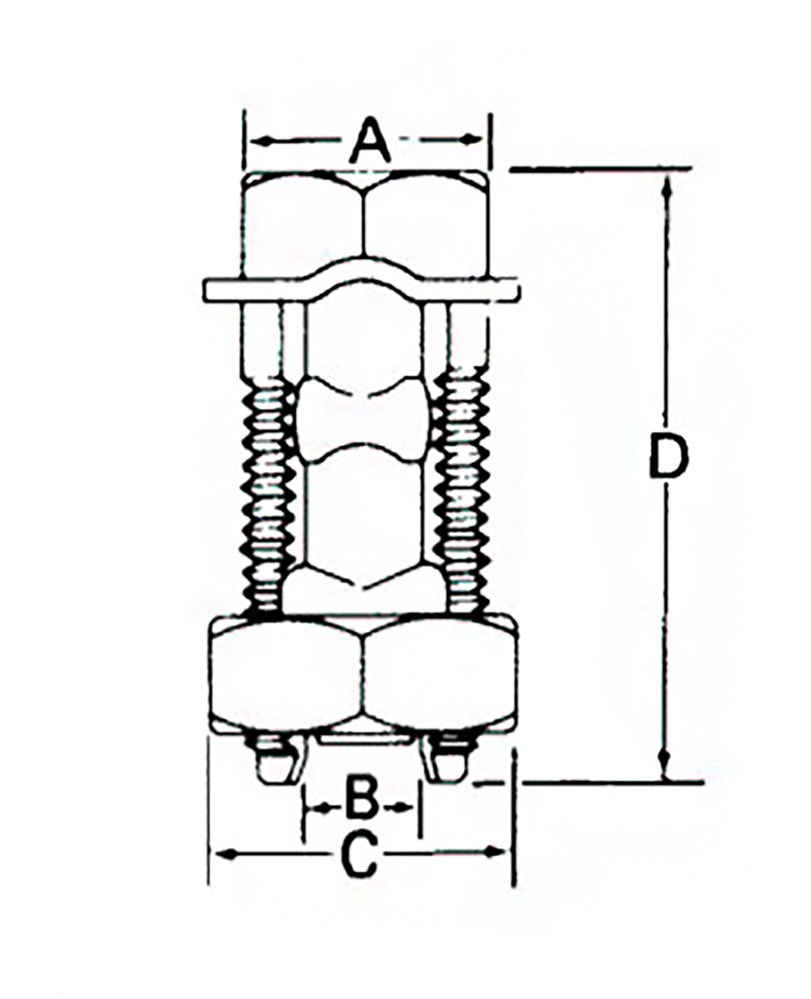

Dimensions
| A | 22.2 mm |
|---|---|
| B | 11.3 mm |
| C | 27 mm |
| D | 52.4 mm |
| MOQ | 25 . |
| Unit | pcs |
Logistics
| Barcode | 541436313880 |
|---|---|
| Country of origin | MX |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 25 . |
| Stock code | 20HPS |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001062 - Branch terminal |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Screw Connections & Clamps |
| Search Description | SPLIT BOLT CONNECTOR |
| Alternative SKU | 20HPS |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Generate Datasheet:
