E 06 511 22

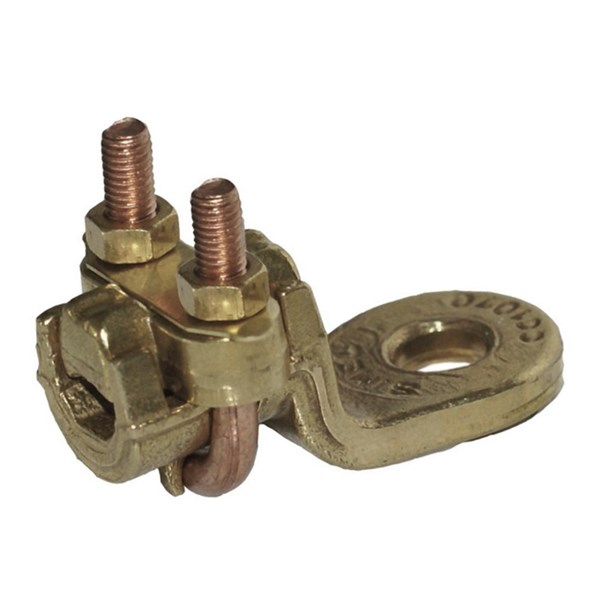

KLÄMKABELSKO BRONS, 10-70mm2, HÅL=10.5mm, 2170 A
E 06 511 22
- Availability:
-
Yes
- Total: 1
Related items
Klämkabelskor
Bolted cable lugs of copper
The terminal is constructed in principle as Al-lug. Connection plate can be drilled to fit the larger bolts.
Material: Contact Upper, contact base: Hot-pressed electrolytic copper
Bolts and washers: Bronze
Tightening torque: 22 Nm
- Total: 1
E0651122
Product Properties
| Material conductor | Copper |
|---|---|
| Max Temp | 150 °C |
| Surface protection | Untreated |
Dimensions
| MOQ | 5 . |
|---|---|
| Unit | pcs |
| Nominal cross section aluminium, RM | 10-70 mm² |
| Nominal cross section aluminium, RE | 10-70 mm² |
| Nominal cross section aluminium, SM | 10-70 mm² |
| Bolt dimension (metric) | 10 . |
| Nominal cross section aluminium, SE | 10-70 mm² |
Logistics
| Barcode | 733117619246 |
|---|---|
| Country of origin | DE |
| E-no | E0651122 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 5 . |
| Stock code | E 06 511 22 |
| Taric code | 85359000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001154 - Screw cable lug |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | TE Connectivity |
| Product Group | Bolted Cable Lugs |
| Search Description | 2170-A, 256410-000, 709608-2 |
| Alternative SKU | E0651122 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| Link to manufacturer COC | https://www.te.com/commerce/alt/SinglePartSearch.do?PN=709608-2 |
| REACH | Yes. CAS 7439-92-1, < 4 % |
| RoHS | RoHS 3 (2015/863) |
| US TSCA | No (5 PBT Subs, Feb 2021) |
