Grenklämmor

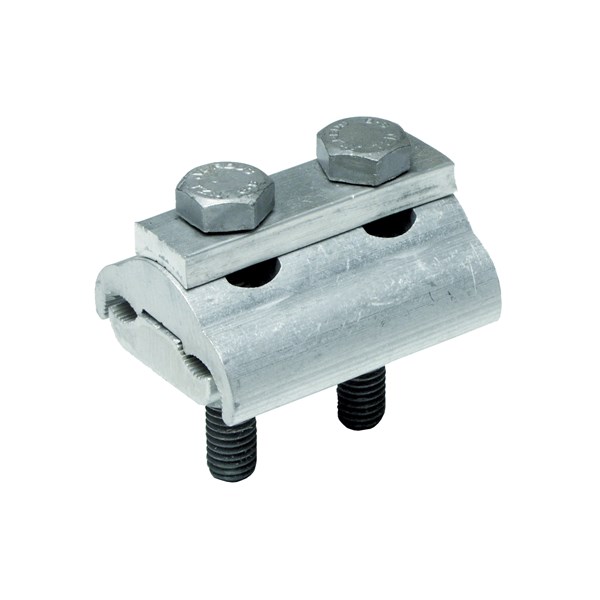

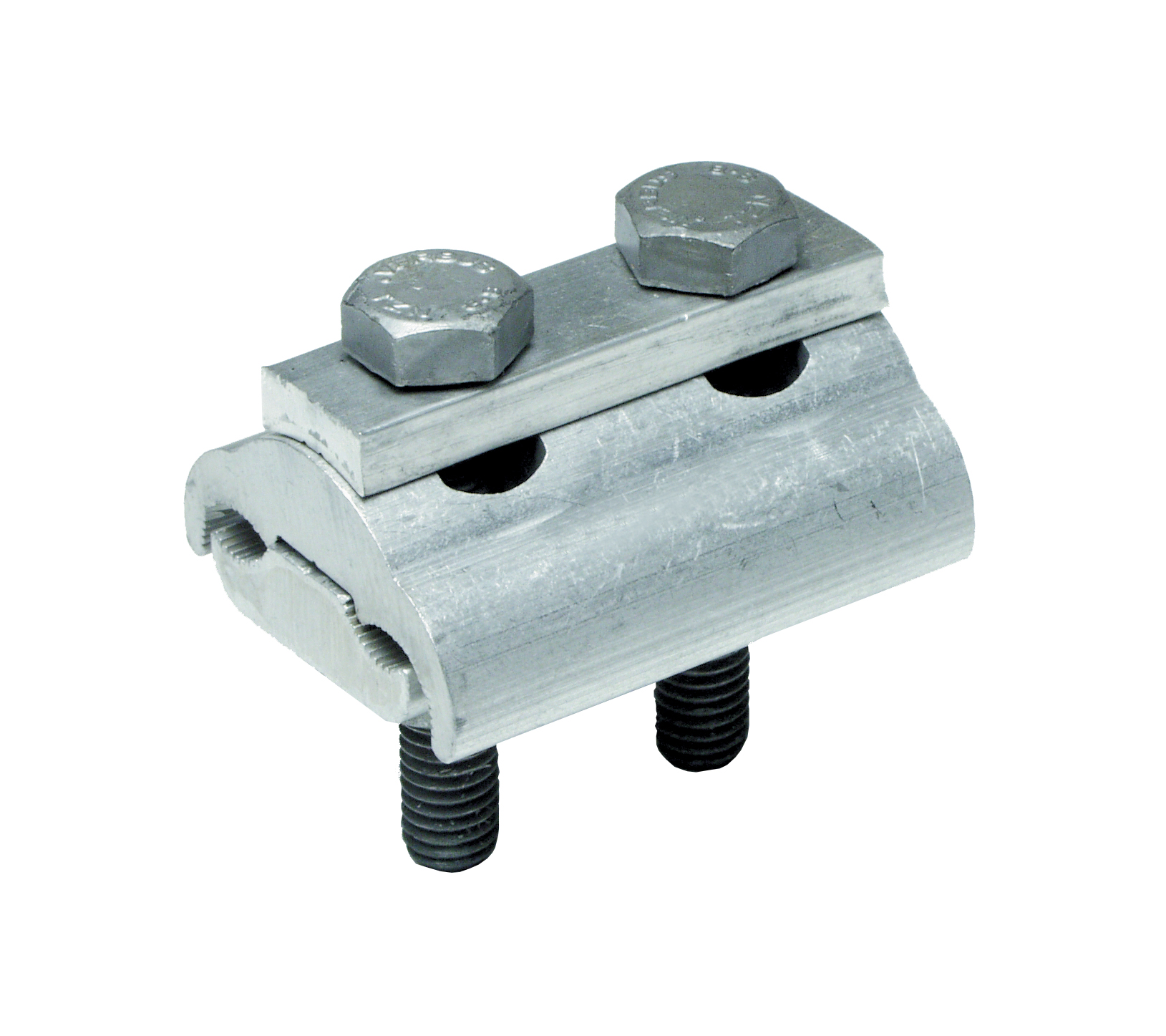

Grenklämma av aluminium
Ledarspårens rillor tränger lätt igenom ledarens oxidskikt, därigenom ökas kontaktytan väsentligt vilket underlättar strömflödet.
Material:
Bultar: Varmförzinkat stål
Brickor: Varmförzinkat stål
Ã…tdragningsmoment: 22 Nm
Technical properties
- Material main conductor:
- Aluminium
- Material branch conductor:
- Aluminium
- Terminal insulated:
- No
- Clamping channel opening main conductor:
- Both sides open
- Clamping channel opening branch conductor:
- Both sides open
- Type of connection:
- Screwed connection
- Max Temp:
- 150 °C
- Surface protection:
- Bare
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| GRENKLÄMMA, 16-95 mm², 2xM8 | 1 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 25-150 mm², 2xM10 | 50 . | pcs |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| GRENKLÄMMA, 16-95 mm², 2xM8 |
Yes
|
|
|
| GRENKLÄMMA, 25-150 mm², 2xM10 |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Material main conductor | Material branch conductor | Terminal insulated | Clamping channel opening main conductor | Clamping channel opening branch conductor | Type of connection | Max Temp | Surface protection | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRENKLÄMMA, 16-95 mm², 2xM8 | Aluminium | Aluminium | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 25-150 mm², 2xM10 | Aluminium | Aluminium | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| GRENKLÄMMA, 16-95 mm², 2xM8 | EC001062 - Branch terminal | 7.0 |
|
Screw Connections & Clamps | 206428-000 HEL-3590 | E0651020 |
Yes
|
|
|
| GRENKLÄMMA, 25-150 mm², 2xM10 | EC001062 - Branch terminal | 7.0 |
|
Screw Connections & Clamps | 622662-000 HEL-3592 | E0651022 |
No
|
|
|
- Total: 2
