KST 95

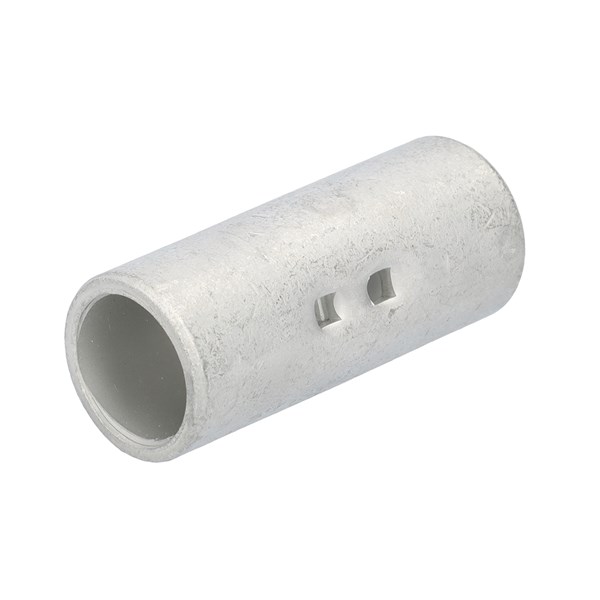

SPLICE KST 95mm2
KST 95
- Availability:
-
Yes
- Total: 1
Related items
KST - Copper connectors 10-500mm²
Copper tube splices for the Nordic market. For stranded (class 5) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: T 25 10
T = KST // 25 = 25 wire // 10 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
- Total: 1
E0847224
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | DIN-version |
| Max. current (Imax) | 288 A |
| Number of branches | 0 N/A |
| Insulation | None |
| Colour insulation | N/A |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 35 kV |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Series | KRT/KST(10-500mm2) |
Product video
Dimensions
| ID | 13.5 mm |
|---|---|
| OD | 18 mm |
| L | 60 mm |
| MOQ | 50 . |
| Unit | pcs |
| Nominal cross section | 95 mm² |
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117612474 |
|---|---|
| Country of origin | CN |
| E-no | E0847224 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Stock code | KST 95 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to DNV | Yes |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2
Conflict Minerals Reporting Template Version 6.31_Approved
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Copper tube Splices |
| Alternative SKU | KST95 |
| E-no | E0847224 |
