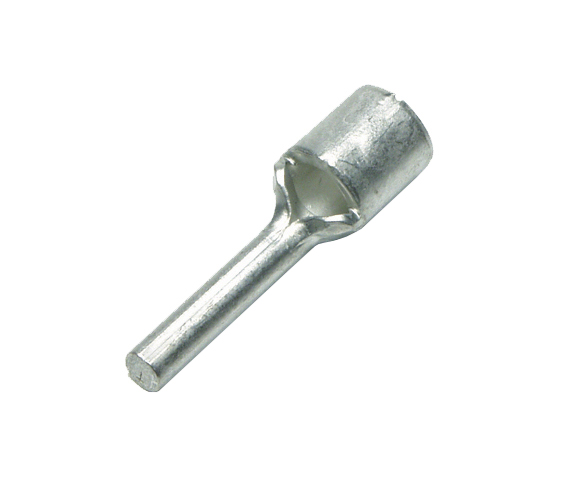

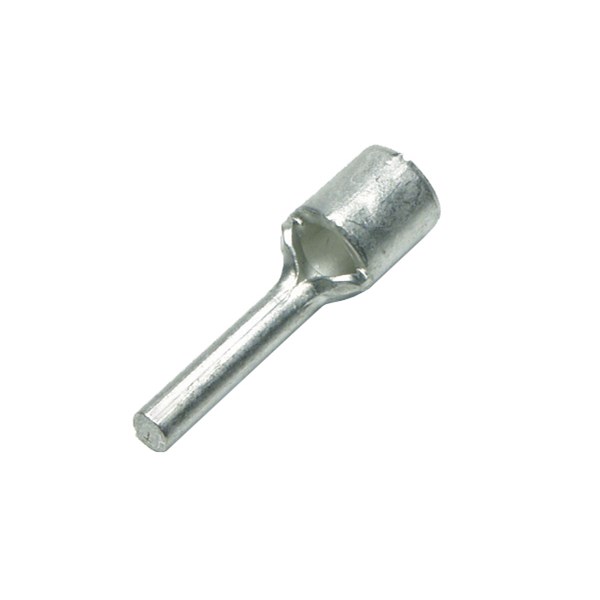

Pin terminal - Round
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 27 A, 19 A, 16 A, 37 A, 48 A
- Flange shape:
- Pin shape
- According to DIN:
- Yes, No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
Show more
Item List
- Total: 9
- Total: 9
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 9
| Product Description | H | ØD | Ød1 | E | F | L | W | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 0.3-0.75mm2 | 1.2 mm | 2 mm | 1 mm | 4 mm | 10 mm | 14 mm | 1.2 mm | 100 . | pcs | 0.3-0.75 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1mm2 | 100 . | pcs | 0.5-1 mm² |
Yes
|
|
|
|||||||
| UNINSULATED PIN TERMINAL 0.5-1.65mm2 | 1.8 mm | 3.4 mm | 1.7 mm | 5 mm | 12 mm | 17 mm | 1.9 mm | 100 . | pcs | 0.5-1.65 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.75-1.5mm2 | 2000 . | pcs | 0.75-1.5 mm² |
Yes
|
|
|
|||||||
| UNINSULATED PIN TERMINAL 1.04-2.63mm2 | 1.8 mm | 4.1 mm | 2.4 mm | 5 mm | 12 mm | 17 mm | 1.9 mm | 100 . | pcs | 1.04-2.63 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 1.5mm2 | 3.4 mm | 1.5 mm | 4.7 mm | 12.7 mm | 17.4 mm | 1.8 mm | 100 . | pcs | 1.5 mm² |
Yes
|
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 2.5mm2 | 1.8 mm | 4 mm | 2.5 mm | 4.7 mm | 12.7 mm | 17.4 mm | 1.8 mm | 100 . | pcs | 2.5 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.5-4.0mm2 | 2.5 mm | 5.4 mm | 3 mm | 6 mm | 13 mm | 19 mm | 2.7 mm | 100 . | pcs | 2.5-4 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.63-6.64mm2 | 2.6 mm | 5.7 mm | 3.7 mm | 6 mm | 14 mm | 20 mm | 2.7 mm | 100 . | pcs | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 9
Similar Options
Approvals
- Total: 9
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 0.3-0.75mm2 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1mm2 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1.65mm2 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.75-1.5mm2 |
Yes
|
|
|
|||
| UNINSULATED PIN TERMINAL 1.04-2.63mm2 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 1.5mm2 | E44245 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 2.5mm2 | E44245 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.5-4.0mm2 | E44245 |
|
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.63-6.64mm2 | E42024 |
|
|
Yes
|
|
|
- Total: 9
Technical Properties
- Total: 9
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 0.3-0.75mm2 | No | 16 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1mm2 | No | 16 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1.65mm2 | No | 19 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.75-1.5mm2 | No | 19 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 1.04-2.63mm2 | No | 27 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 1.5mm2 | No | 27 A | Pin shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 2.5mm2 | No | 27 A | Pin shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.5-4.0mm2 | No | 37 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.63-6.64mm2 | No | 48 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
- Total: 9
Other information
- Total: 9
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 0.3-0.75mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | JST, 1407100 , PC-0.5 | B0819SR |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | JST, PC-1.25-F10 | B1519SR-10 |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.5-1.65mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | JST, 1409100 , PC-1.25 | B1519SR |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 0.75-1.5mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | 45701.201.184 |
Yes
|
|
|
|
| UNINSULATED PIN TERMINAL 1.04-2.63mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | JST, 01417100 , PC-2 | B2519SR |
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 1.5mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | NICHIFU, TC-1 | 03013 |
Yes
|
|
|
| UNINSULATED PIN TERMINAL, DIN 46230 2.5mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | NICHIFU, TC-2.5 | 03001 |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.5-4.0mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | NICHIFU, TC 3.5U | B4030SR |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 2.63-6.64mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | JST, 01420100 , PC-5.5 | B4630SR |
Yes
|
|
|
- Total: 9
