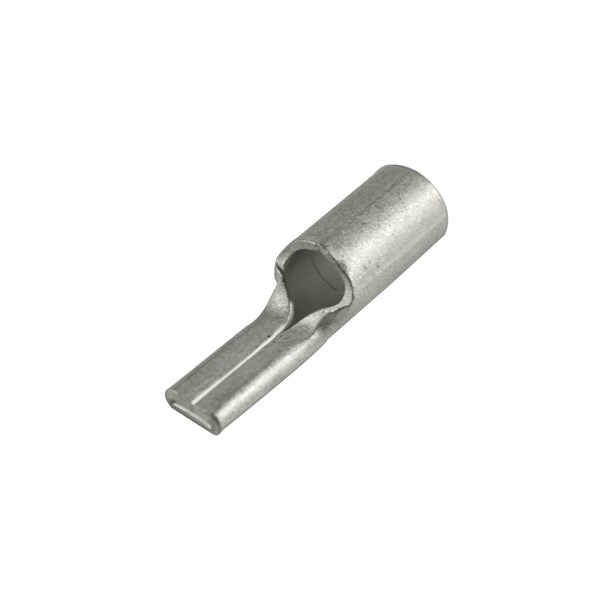

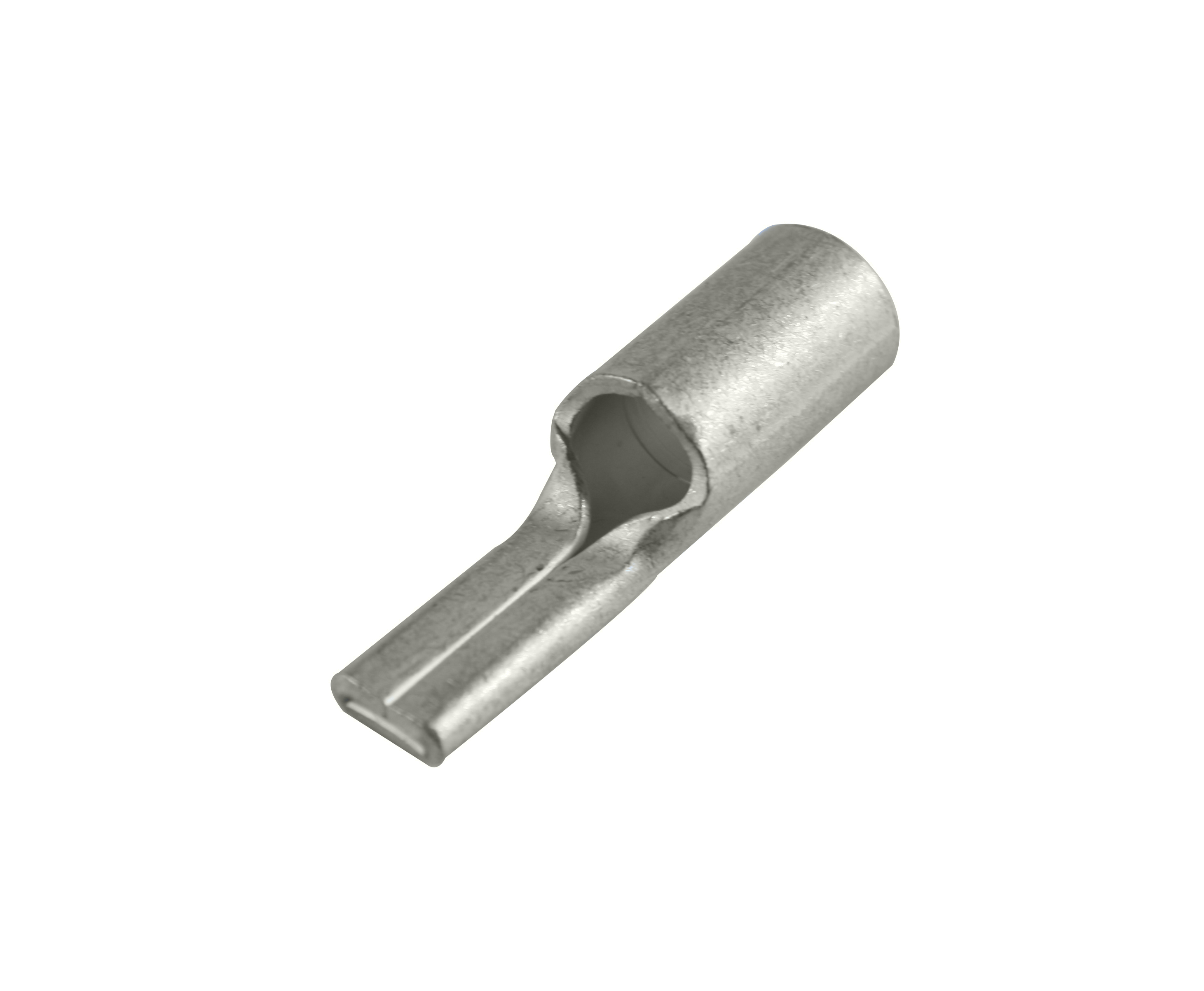

Pin terminal - Flat
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 115 A, 62 A, 88 A, 160 A, 235 A, 255 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity - Cable lugs
Dimensions
- Total: 8

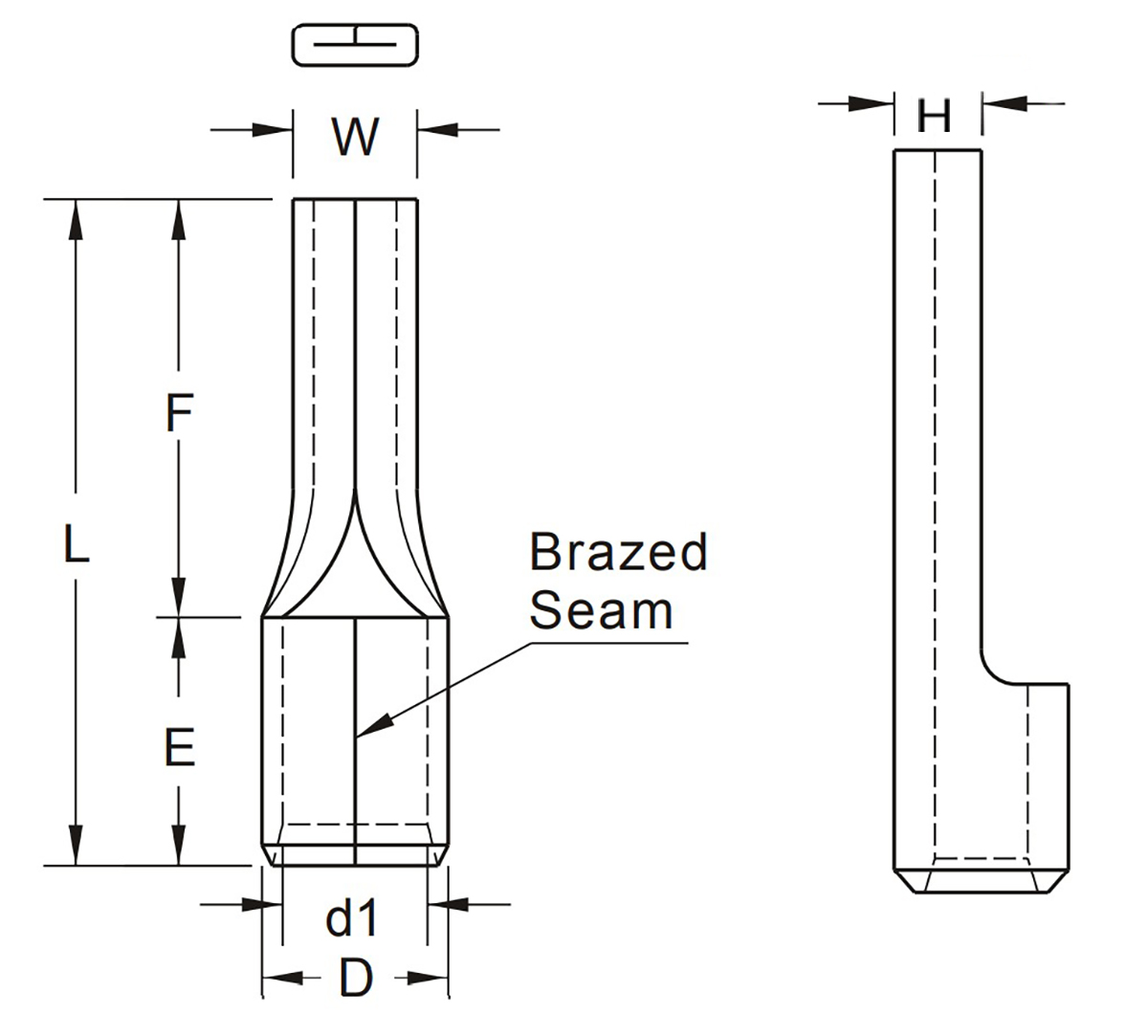

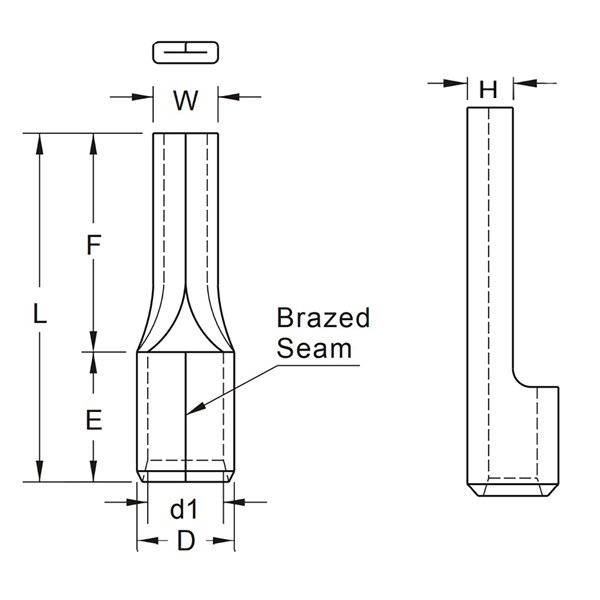

| Product Description | H | ØD | Ød1 | E | F | L | W | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 25-35mm2 | 3.2 mm | 11.8 mm | 8.5 mm | 16 mm | 24.5 mm | 40.5 mm | 8 mm | 100 . | pcs | 25-35 mm² |
No
|
|
|
| UNINSULATED PIN TERMINAL 35-50mm2 | 3.7 mm | 13.6 mm | 9.9 mm | 19 mm | 26 mm | 45 mm | 9.5 mm | 100 . | pcs | 35-50 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 70-95mm2 | 5.3 mm | 18.8 mm | 13.8 mm | 24 mm | 31 mm | 55 mm | 12.5 mm | 25 . | pcs | 70-95 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 6-10mm2 | 2 mm | 6.6 mm | 4.6 mm | 8 mm | 14.5 mm | 22.5 mm | 4.2 mm | 100 . | pcs | 6-10 mm² |
No
|
|
|
| UNINSULATED PIN TERMINAL 10-16mm2 | 2.5 mm | 8.5 mm | 6 mm | 10 mm | 16 mm | 26 mm | 5.5 mm | 100 . | pcs | 10-16 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 50-70mm2 | 4.1 mm | 15.6 mm | 11.7 mm | 24 mm | 31 mm | 55 mm | 11 mm | 50 . | pcs | 50-70 mm² |
No
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 | 2.6 mm | 9.5 mm | 7 mm | 13.5 mm | 20 mm | 33.5 mm | 6.8 mm | 100 . | pcs | 16-25 mm² |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 | 2.6 mm | 9.5 mm | 7 mm | 13.5 mm | 20 mm | 33.5 mm | 6.8 mm | 100 . | pcs | 16-25 mm² |
No
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 25-35mm2 |
|
No
|
|
|
| UNINSULATED PIN TERMINAL 35-50mm2 |
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 70-95mm2 |
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 6-10mm2 |
No
|
|
|
|
| UNINSULATED PIN TERMINAL 10-16mm2 |
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 50-70mm2 |
|
No
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 |
|
Yes
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 |
|
No
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 25-35mm2 | No | 160 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
No
|
|
|
| UNINSULATED PIN TERMINAL 35-50mm2 | No | 160 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 70-95mm2 | No | 255 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 6-10mm2 | No | 62 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
No
|
|
|
| UNINSULATED PIN TERMINAL 10-16mm2 | No | 88 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 50-70mm2 | No | 235 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
No
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 | No | 115 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 | No | 115 A | Pin shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper |
No
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED PIN TERMINAL 25-35mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 3581, 03007.311.011 | B3520SF |
No
|
|
|
| UNINSULATED PIN TERMINAL 35-50mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 5095, 03008.311.011 | B5020SF |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 70-95mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 9595, 03010.311.011 | B9525SF |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 6-10mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 1045 ST, 03004.311.011 | B1012SF |
No
|
|
|
| UNINSULATED PIN TERMINAL 10-16mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 1658 ST, 03017.311.011 | B1613SF |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 50-70mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 7095, 03009.311.011 | B7025SF |
No
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B 2568, 03006.311.011 | B2515SF |
Yes
|
|
|
| UNINSULATED PIN TERMINAL 16-25mm2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Pin Terminals | B2568 |
No
|
|
|
- Total: 8
