Thomas & Betts

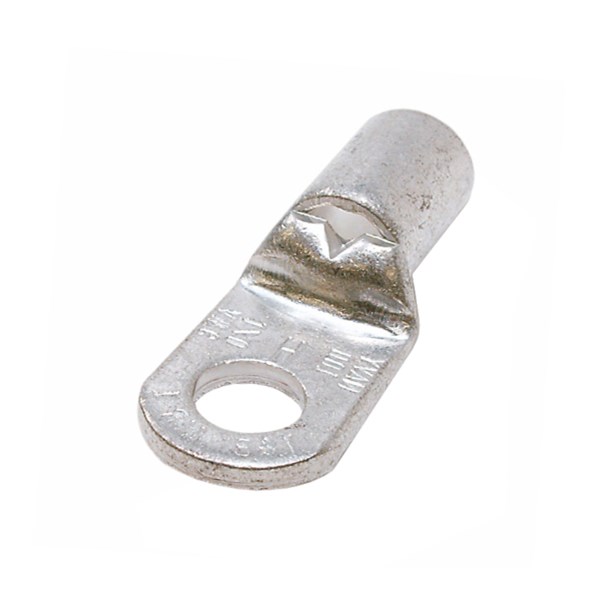

Oisolerade ringkabelskor
Material: Koppar
Ytbehandling: Förtent
Temperaturområde: Upp till 150° C
Tjocklek: D
Fabrikat: Thomas & Betts
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 235 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material:
- Copper
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL, STA-KON WIRE RANGE 3/0, STUD SIZE 3/8 | 5 . | pcs | 10.5 . | 60-95 mm² |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| UNINSULATED RING TERMINAL, STA-KON WIRE RANGE 3/0, STUD SIZE 3/8 |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL, STA-KON WIRE RANGE 3/0, STUD SIZE 3/8 | No | 235 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | Copper |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL, STA-KON WIRE RANGE 3/0, STUD SIZE 3/8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | K30-38, 7TAI029590R0040 | K30-38 |
No
|
|
|
- Total: 1
