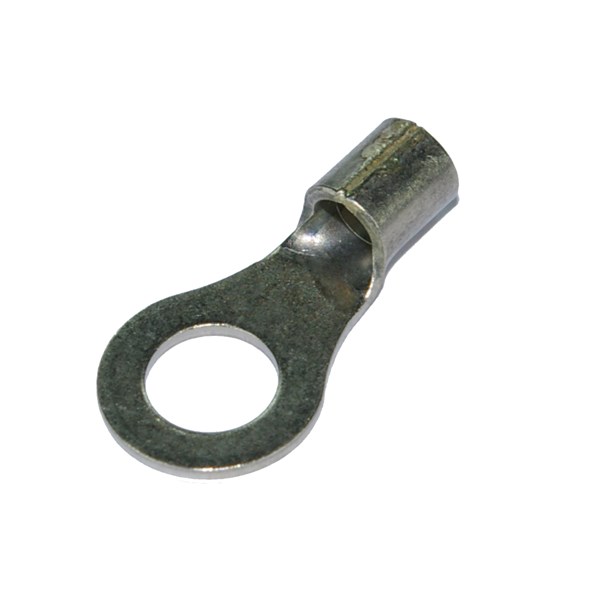

Ringkabelskor (svetsad)

BN-serien

Material: Nickel
Temperaturområde: Upp till 400° C
Svetsad hals

Show item list

Technical properties

Reel/roll packaging:: No
Max. current (Imax):: 62 A, 88 A, 19 A, 115 A, 27 A, 160 A, 48 A
Flange shape:: Ring shape
According to DIN:: No
Insulation:: None
Colour insulation:: Other
Sleeve form:: Short
Suitable for solid cores:: Yes
Suitable for stranded conductors:: Yes
Suitable for fine strand conductors:: Yes
Suitable for high temperatures (to 650 °C):: No
Suitable for insulated varnish:: No
Suitable for round conductors:: Yes
Suitable for flat conductors:: No
Surface protection:: Nickel-plated
Operating temperature:: -55-400 °C
Material:: Nickel
Neck type:: Welded

Item List

Page size:

Total: 18

BN 1532 R

OISOLERAD RINGKABELSKO, 0.5-1.6mm2, M3, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 1543 R

OISOLERAD RINGKABELSKO, 0.5-1.6mm2, M4, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 1553 R

OISOLERAD RINGKABELSKO, 0.5-1.6mm2, M5, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 2543 R

OISOLERAD RINGKABELSKO, 1.0-2.6mm2, M4, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 2553 R

OISOLERAD RINGKABELSKO, 1.0-2.6mm2, M5, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 2565 R

OISOLERAD RINGKABELSKO, 1.0-2.6mm2, M6, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 6043 R

OISOLERAD RINGKABELSKO, 2.6-6.6mm2, M4, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 6053 R

OISOLERAD RINGKABELSKO, 2.6-6.6mm2, M5, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 6065 R

OISOLERAD RINGKABELSKO, 2.6-6.6mm2, M6, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 6085 R

OISOLERAD RINGKABELSKO, 2.6-6.6mm2, M8, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 1053 R

OISOLERAD RINGKABELSKO, 6.6-10.5mm2, M5, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 1065 R

OISOLERAD RINGKABELSKO, 6.6-10.5mm2, M6, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 1085 R

OISOLERAD RINGKABELSKO, 6.6-10.5mm2, M8, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 1010 R

OISOLERAD RINGKABELSKO, 6.6-10.5mm2, M10, NICKEL

Availability:: No
Delivery date:: 6/23/2025

BN 14-6

OISOLERAD RINGKABELSKO, 10.5-16.8mm2, M6, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 14-8

OISOLERAD RINGKABELSKO, 10.5-16.8mm2, M8, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 22-8

OISOLERAD RINGKABELSKO, 16.8-26.7mm2, M8, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

BN 38-10

OISOLERAD RINGKABELSKO, 26.7-42.4mm2, M10, NICKEL

Availability:: Yes
Delivery date:: 12/23/2024

Total: 18

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

CE Declaration of Conformity - Cable lugs

Dimensions

Page size:

Total: 18

Product Description	Stock code	HS	ID	OD	T	P1	L	N	W	MOQ	Unit	Bolt dimension (metric)	Nominal cross section	Availability
UNINSULATED RING TERMINAL 0.5-1.6mm2, M3, NICKEL	BN 1532 R	3.2 mm	1.7 mm	3.4 mm	0.8 mm	4 mm	11.5 mm	4.8 mm	5.5 mm	100 .	pcs	3 .	0.5-1.6 mm²	Yes
UNINSULATED RING TERMINAL 0.5-1.6mm2, M4, NICKEL	BN 1543 R	4.3 mm	1.7 mm	3.4 mm	0.8 mm	7 mm	15.8 mm	4.8 mm	8 mm	100 .	pcs	4 .	0.5-1.6 mm²	Yes
UNINSULATED RING TERMINAL 0.5-1.6mm2, M5, NICKEL	BN 1553 R	5.3 mm	1.7 mm	3.4 mm	0.8 mm	7 mm	15.8 mm	4.8 mm	8 mm	100 .	pcs	5 .	0.5-1.6 mm²	Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M4, NICKEL	BN 2543 R	4.3 mm	2.3 mm	4.1 mm	0.8 mm	6.3 mm	14.4 mm	4.8 mm	6.6 mm	100 .	pcs	4 .	1-2.6 mm²	Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M5, NICKEL	BN 2553 R	5.3 mm	2.3 mm	4.1 mm	0.8 mm	7.8 mm	16.8 mm	4.8 mm	8.5 mm	100 .	pcs	5 .	1-2.6 mm²	Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M6, NICKEL	BN 2565 R	6.4 mm	2.3 mm	4.1 mm	0.8 mm	11 mm	21.8 mm	4.8 mm	12 mm	100 .	pcs	6 .	1-2.6 mm²	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M4, NICKEL	BN 6043 R	4.3 mm	3.4 mm	5.6 mm	1 mm	8.3 mm	19.5 mm	6.5 mm	9.5 mm	100 .	pcs	4 .	2.6-6.6 mm²	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M5, NICKEL	BN 6053 R	5.3 mm	3.4 mm	5.6 mm	1 mm	8.3 mm	19.5 mm	6.5 mm	9.5 mm	100 .	pcs	5 .	2.6-6.6 mm²	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M6, NICKEL	BN 6065 R	6.4 mm	3.4 mm	5.6 mm	1 mm	10.5 mm	23 mm	6.5 mm	12 mm	100 .	pcs	6 .	2.6-6.6 mm²	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M8, NICKEL	BN 6085 R	8.4 mm	3.4 mm	5.6 mm	1 mm	14 mm	28 mm	6.5 mm	15 mm	100 .	pcs	8 .	2.6-6.6 mm²	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M5, NICKEL	BN 1053 R	5.3 mm	4.5 mm	7.1 mm	1.2 mm	9.1 mm	23.5 mm	8.4 mm	12 mm	100 .	pcs	5 .	6.6-10.5 mm²	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M6, NICKEL	BN 1065 R	6.4 mm	4.5 mm	7.1 mm	1.2 mm	9.1 mm	23.5 mm	8.4 mm	12 mm	100 .	pcs	6 .	6.6-10.5 mm²	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M8, NICKEL	BN 1085 R	7.9 mm	4.5 mm	7.1 mm	1.2 mm	13.6 mm	29.5 mm	8.4 mm	15 mm	100 .	pcs	8 .	6.6-10.5 mm²	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M10, NICKEL	BN 1010 R	10.6 mm	4.5 mm	7.1 mm	1.2 mm	13.6 mm	29.5 mm	8.4 mm	15 mm	100 .	pcs	10 .	6.6-10.5 mm²	No
UNINSULATED RING TERMINAL 10.5-16.8mm2, M6, NICKEL	BN 14-6	6.4 mm	5.7 mm	9 mm	1.7 mm	11.5 mm	27.6 mm	10.1 mm	12 mm	100 .	pcs	6 .	10.5-16.8 mm²	Yes
UNINSULATED RING TERMINAL 10.5-16.8mm2, M8, NICKEL	BN 14-8	8.4 mm	5.7 mm	9 mm	1.7 mm	14.3 mm	32.3 mm	10.1 mm	16 mm	100 .	pcs	8 .	10.5-16.8 mm²	Yes
UNINSULATED RING TERMINAL 16.8-26.7mm2, M8, NICKEL	BN 22-8	8.4 mm	7.6 mm	11.6 mm	1.9 mm	14 mm	33 mm	11.8 mm	16.5 mm	100 .	pcs	8 .	16.8-26.7 mm²	Yes
UNINSULATED RING TERMINAL 26.7-42.4mm2, M10, NICKEL	BN 38-10	10.5 mm	9.3 mm	13.4 mm	2.1 mm	18.6 mm	42.1 mm	12.8 mm	21.9 mm	100 .	pcs	10 .	26.7-42.4 mm²	Yes

Total: 18

Similar Options

Approvals

Page size:

Total: 18

Product Description	Stock code	UL-File No.	Approved according to CE	Availability
UNINSULATED RING TERMINAL 0.5-1.6mm2, M3, NICKEL	BN 1532 R	E44245		Yes
UNINSULATED RING TERMINAL 0.5-1.6mm2, M4, NICKEL	BN 1543 R	E44245		Yes
UNINSULATED RING TERMINAL 0.5-1.6mm2, M5, NICKEL	BN 1553 R	E44245		Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M4, NICKEL	BN 2543 R	E44245		Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M5, NICKEL	BN 2553 R	E44245		Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M6, NICKEL	BN 2565 R	E44245		Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M4, NICKEL	BN 6043 R	E44245		Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M5, NICKEL	BN 6053 R	E44245		Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M6, NICKEL	BN 6065 R	E44245		Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M8, NICKEL	BN 6085 R	E44245		Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M5, NICKEL	BN 1053 R	E44245		Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M6, NICKEL	BN 1065 R	E44245		Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M8, NICKEL	BN 1085 R	E44245		Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M10, NICKEL	BN 1010 R	E44245		No
UNINSULATED RING TERMINAL 10.5-16.8mm2, M6, NICKEL	BN 14-6	E44245	No	Yes
UNINSULATED RING TERMINAL 10.5-16.8mm2, M8, NICKEL	BN 14-8	E44245	No	Yes
UNINSULATED RING TERMINAL 16.8-26.7mm2, M8, NICKEL	BN 22-8	E44245	No	Yes
UNINSULATED RING TERMINAL 26.7-42.4mm2, M10, NICKEL	BN 38-10	E44245	No	Yes

Total: 18

Technical Properties

Page size:

Total: 18

Product Description	Stock code	Reel/roll packaging	Max. current (Imax)	Flange shape	According to DIN	Insulation	Colour insulation	Sleeve form	Suitable for solid cores	Suitable for stranded conductors	Suitable for fine strand conductors	Suitable for high temperatures (to 650 °C)	Suitable for insulated varnish	Suitable for round conductors	Suitable for flat conductors	Surface protection	Operating temperature	Material	Neck type	Availability
UNINSULATED RING TERMINAL 0.5-1.6mm2, M3, NICKEL	BN 1532 R	No	19 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 0.5-1.6mm2, M4, NICKEL	BN 1543 R	No	19 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 0.5-1.6mm2, M5, NICKEL	BN 1553 R	No	19 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M4, NICKEL	BN 2543 R	No	27 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M5, NICKEL	BN 2553 R	No	27 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 1.0-2.6mm2, M6, NICKEL	BN 2565 R	No	27 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M4, NICKEL	BN 6043 R	No	48 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M5, NICKEL	BN 6053 R	No	48 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M6, NICKEL	BN 6065 R	No	48 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 2.6-6.6mm2, M8, NICKEL	BN 6085 R	No	48 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M5, NICKEL	BN 1053 R	No	62 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M6, NICKEL	BN 1065 R	No	62 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M8, NICKEL	BN 1085 R	No	62 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 6.6-10.5mm2, M10, NICKEL	BN 1010 R	No	62 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	No
UNINSULATED RING TERMINAL 10.5-16.8mm2, M6, NICKEL	BN 14-6	No	88 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 10.5-16.8mm2, M8, NICKEL	BN 14-8	No	88 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 16.8-26.7mm2, M8, NICKEL	BN 22-8	No	115 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes
UNINSULATED RING TERMINAL 26.7-42.4mm2, M10, NICKEL	BN 38-10	No	160 A	Ring shape	No	None	Other	Short	Yes	Yes	Yes	No	No	Yes	No	Nickel-plated	-55-400 °C	Nickel	Welded	Yes

Total: 18
