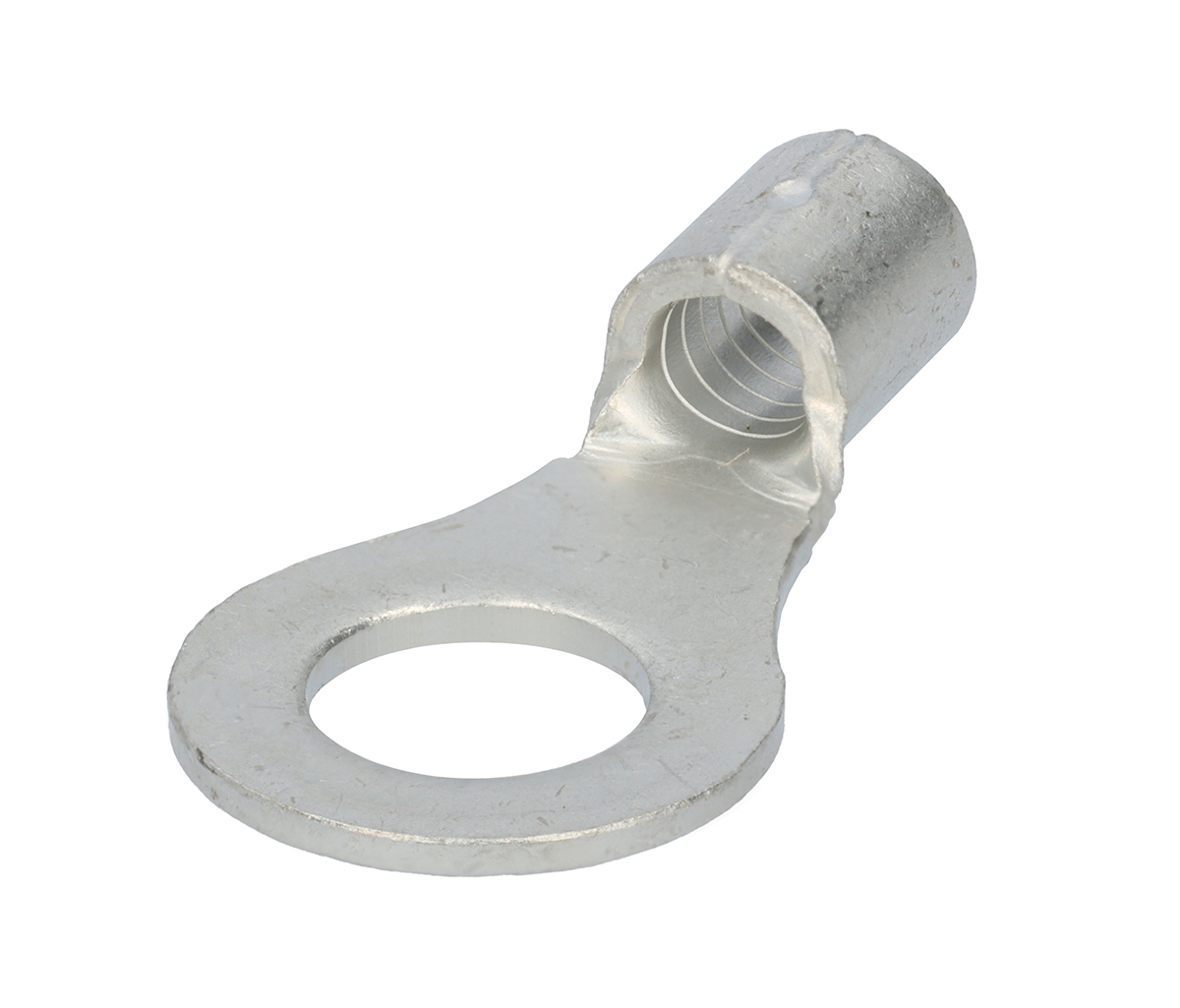

Ringkabelskor (svetsad)
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 16 A, 62 A, 27 A, 37 A, 48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
- Neck type:
- Welded
Show more
Item List
- Total: 48
- Total: 48
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity - Cable lugs
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 48

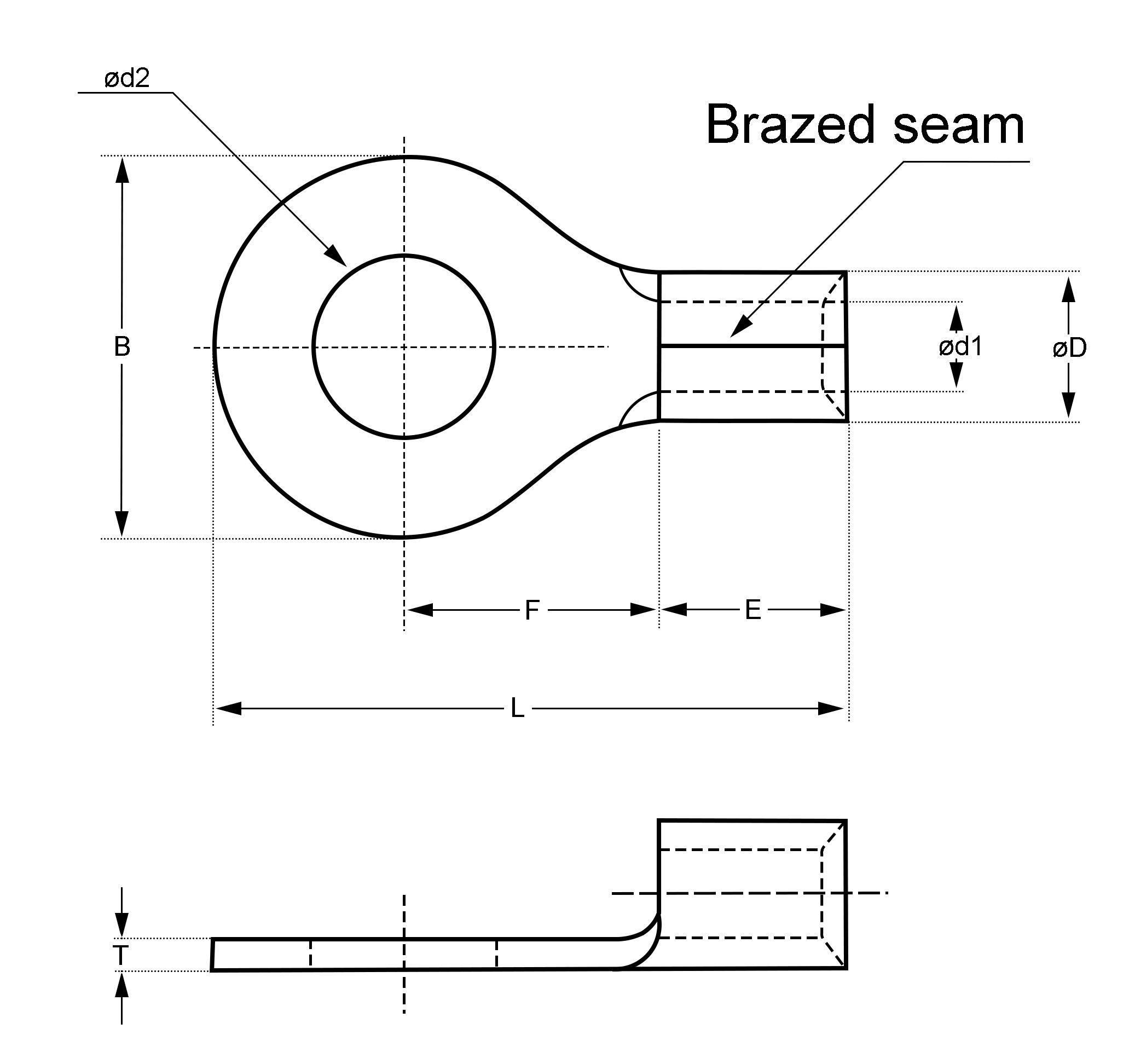

| Product Description | B | ØD | Ød1 | Ød2 | E | F | T | L | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M2, | 5.2 mm | 2.3 mm | 1 mm | 2.3 mm | 4.5 mm | 4.5 mm | 0.5 mm | 12.1 mm | 100 . | pcs | 2 . | 0.3-0.8 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M3 | 5.2 mm | 2.2 mm | 1.2 mm | 3.2 mm | 4.5 mm | 4.9 mm | 0.5 mm | 12 mm | 100 . | pcs | 3 . | 0.3-0.8 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M4 | 6.6 mm | 2.2 mm | 1.2 mm | 4.3 mm | 4.5 mm | 7.2 mm | 0.5 mm | 15 mm | 100 . | pcs | 4 . | 0.3-0.8 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M5 | 8 mm | 2.2 mm | 1.2 mm | 5.3 mm | 4.5 mm | 7 mm | 0.5 mm | 15.5 mm | 100 . | pcs | 5 . | 0.3-0.8 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M4 | 12 mm | 7.1 mm | 4.5 mm | 4.3 mm | 8.4 mm | 9.1 mm | 1.2 mm | 23.5 mm | 100 . | pcs | 4 . | 6.6-10.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M5 | 12 mm | 7.1 mm | 4.5 mm | 5.3 mm | 8.4 mm | 9.1 mm | 1.2 mm | 23.5 mm | 100 . | pcs | 5 . | 6.6-10.5 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M6 | 12 mm | 7.1 mm | 4.5 mm | 6.4 mm | 8.4 mm | 9.1 mm | 1.2 mm | 23.5 mm | 100 . | pcs | 6 . | 6.6-10.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M8 | 15 mm | 7.1 mm | 4.5 mm | 8.5 mm | 8.4 mm | 13.6 mm | 1.2 mm | 29.5 mm | 100 . | pcs | 8 . | 6.6-10.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M12 | 19 mm | 4.2 mm | 2.6 mm | 12.7 mm | 4.5 mm | 14.5 mm | 0.8 mm | 28.5 mm | 100 . | pcs | 12 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M4 | 8 mm | 5 mm | 2.7 mm | 4.3 mm | 6 mm | 8.2 mm | 1 mm | 17.9 mm | 100 . | pcs | 4 . | 2.5-4 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M5 | 9.6 mm | 5 mm | 2.7 mm | 5.3 mm | 6 mm | 9.2 mm | 1 mm | 20 mm | 100 . | pcs | 5 . | 2.5-4 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M6 | 12 mm | 5 mm | 2.7 mm | 6.4 mm | 6 mm | 9.2 mm | 1 mm | 21.3 mm | 100 . | pcs | 6 . | 2.5-4 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M10 | 15 mm | 5.6 mm | 3.4 mm | 10.8 mm | 6.5 mm | 14 mm | 1 mm | 28 mm | 100 . | pcs | 10 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M12 | 19.2 mm | 5.6 mm | 3.4 mm | 12.7 mm | 6.5 mm | 16.4 mm | 1 mm | 32.5 mm | 100 . | pcs | 12 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4 | 9.5 mm | 5.6 mm | 3.4 mm | 4.3 mm | 6.5 mm | 8.3 mm | 1 mm | 19.5 mm | 100 . | pcs | 4 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4 (B=9.0mm) | 9 mm | 5.6 mm | 3.4 mm | 4.3 mm | 6.5 mm | 8.3 mm | 1 mm | 18.2 mm | 100 . | pcs | 4 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4(B=7.0mm) | 7 mm | 5.6 mm | 3.4 mm | 4.3 mm | 6.5 mm | 7.2 mm | 1 mm | 17.2 mm | 100 . | pcs | 4 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M5 | 9.5 mm | 5.6 mm | 3.4 mm | 5.3 mm | 6.5 mm | 8.3 mm | 1 mm | 19.5 mm | 100 . | pcs | 5 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M6 | 12 mm | 5.6 mm | 3.4 mm | 6.4 mm | 6.5 mm | 10.5 mm | 1 mm | 23 mm | 100 . | pcs | 6 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M8 | 15 mm | 5.6 mm | 3.4 mm | 8.4 mm | 6.5 mm | 14 mm | 1 mm | 28 mm | 100 . | pcs | 8 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M14 | 22 mm | 5.6 mm | 3.4 mm | 14.3 mm | 6.5 mm | 18 mm | 1 mm | 35.5 mm | 100 . | pcs | 14 . | 2.6-6.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M10 | 15 mm | 7.1 mm | 4.5 mm | 10.5 mm | 8.4 mm | 13.6 mm | 1.2 mm | 29.5 mm | 100 . | pcs | 10 . | 6.6-10.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M8 | 13.5 mm | 5.1 mm | 2.8 mm | 8.4 mm | 6 mm | 11.5 mm | 1 mm | 25.5 mm | 100 . | pcs | 8 . | 2.5-4 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M4 | 9 mm | 7.1 mm | 4.5 mm | 4.3 mm | 6.2 mm | 5.8 mm | 1.2 mm | 16.5 mm | 100 . | pcs | 4 . | 6.6-10.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M3 | 5.2 mm | 2 mm | 1 mm | 3.2 mm | 4 mm | 5.8 mm | 0.5 mm | 12.4 mm | 100 . | pcs | 3 . | 0.2-0.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M4 | 6.6 mm | 2 mm | 1 mm | 4.3 mm | 4 mm | 7.7 mm | 0.5 mm | 15 mm | 100 . | pcs | 4 . | 0.2-0.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M5 | 8 mm | 2 mm | 1 mm | 5.3 mm | 4 mm | 7 mm | 0.5 mm | 15 mm | 100 . | pcs | 5 . | 0.2-0.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M3 | 5.5 mm | 3.4 mm | 1.7 mm | 3.2 mm | 4.8 mm | 4 mm | 0.8 mm | 11.5 mm | 100 . | pcs | 3 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M3.5 | 6.6 mm | 3.4 mm | 1.7 mm | 3.7 mm | 4.8 mm | 6.3 mm | 0.8 mm | 14.4 mm | 100 . | pcs | 3.5 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M4 | 8 mm | 3.4 mm | 1.7 mm | 4.3 mm | 4.8 mm | 7 mm | 0.8 mm | 15.8 mm | 100 . | pcs | 4 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, NARROW | 6.6 mm | 3.4 mm | 1.7 mm | 4.3 mm | 4.8 mm | 6.3 mm | 0.8 mm | 14.4 mm | 100 . | pcs | 4 . | 0.5-1 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M5 | 8 mm | 3.4 mm | 1.7 mm | 5.3 mm | 4.8 mm | 7 mm | 0.8 mm | 15.8 mm | 100 . | pcs | 5 . | 0.3-1.6 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M6 | 11.6 mm | 3.4 mm | 1.7 mm | 6.4 mm | 4.8 mm | 11.1 mm | 0.8 mm | 21.7 mm | 100 . | pcs | 6 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M8 | 11.6 mm | 3.4 mm | 1.7 mm | 8.4 mm | 4.8 mm | 11.1 mm | 0.8 mm | 21.7 mm | 100 . | pcs | 8 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M10 | 13.6 mm | 3.4 mm | 1.7 mm | 10.5 mm | 4.8 mm | 13.9 mm | 0.8 mm | 25.5 mm | 100 . | pcs | 10 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M12 | 19 mm | 3.4 mm | 1.7 mm | 13 mm | 4.8 mm | 16.7 mm | 0.8 mm | 31 mm | 100 . | pcs | 12 . | 0.3-1.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M3 | 8.5 mm | 4.1 mm | 2.3 mm | 3.2 mm | 4.8 mm | 7.8 mm | 0.8 mm | 16.8 mm | 100 . | pcs | 3 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M3, NARROW | 5.5 mm | 4.1 mm | 2.3 mm | 3.2 mm | 4.8 mm | 5.6 mm | 0.8 mm | 13.2 mm | 100 . | pcs | 3 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M3.5 | 6.6 mm | 4.1 mm | 2.3 mm | 3.7 mm | 4.8 mm | 6.3 mm | 0.8 mm | 14.4 mm | 100 . | pcs | 3.5 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M4 | 6.6 mm | 4.1 mm | 2.3 mm | 4.3 mm | 4.8 mm | 6.3 mm | 0.8 mm | 14.4 mm | 100 . | pcs | 4 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M4, WIDE | 8.5 mm | 4.1 mm | 2.3 mm | 4.3 mm | 4.8 mm | 7.8 mm | 0.8 mm | 16.8 mm | 100 . | pcs | 4 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M5 | 8.5 mm | 4.1 mm | 2.3 mm | 5.3 mm | 4.8 mm | 7.8 mm | 0.8 mm | 16.8 mm | 100 . | pcs | 5 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, WIDE | 9.5 mm | 4.1 mm | 2.3 mm | 5.3 mm | 4.8 mm | 7.3 mm | 0.8 mm | 16.8 mm | 100 . | pcs | 5 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M6 | 12 mm | 4.1 mm | 2.3 mm | 6.4 mm | 4.8 mm | 11 mm | 0.8 mm | 21.8 mm | 100 . | pcs | 6 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M8 | 12 mm | 4.1 mm | 2.3 mm | 8.4 mm | 4.8 mm | 11 mm | 0.8 mm | 21.8 mm | 100 . | pcs | 8 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M10 | 13.6 mm | 4.1 mm | 2.3 mm | 10.5 mm | 4.8 mm | 13.9 mm | 0.8 mm | 25.5 mm | 100 . | pcs | 10 . | 1-2.6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-6.0mm2, M3, NARROW | 7.2 mm | 5.6 mm | 3.4 mm | 3.7 mm | 6.2 mm | 5.9 mm | 1 mm | 15.7 mm | 100 . | pcs | 3 . | 2.5-6 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-6.0mm2, M4, NARROW | 7.2 mm | 5.6 mm | 3.4 mm | 4.3 mm | 6.2 mm | 5.9 mm | 1 mm | 15.7 mm | 100 . | pcs | 4 . | 2.5-6 mm² |
Yes
|
|
|
- Total: 48
Similar Options
Approvals
- Total: 48
- Total: 48
Technical Properties
- Total: 48
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M2, | No | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M3 | No | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M4 | No | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M5 | No | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M4 | No | 62 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M5 | No | 62 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M6 | No | 62 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M8 | No | 62 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M12 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M4 | No | 37 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M5 | No | 37 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M6 | No | 37 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M10 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M12 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4 (B=9.0mm) | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4(B=7.0mm) | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M5 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M6 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M8 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M14 | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M10 | No | 62 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M8 | No | 37 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M4 | No | 62 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M3 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M4 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M5 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M3 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M3.5 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M4 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, NARROW | No | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M5 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M6 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M8 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M10 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M12 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M3 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M3, NARROW | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M3.5 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M4 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M4, WIDE | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M5 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, WIDE | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M6 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M8 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M10 | No | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-6.0mm2, M3, NARROW | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-6.0mm2, M4, NARROW | No | 48 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
- Total: 48
Other information
- Total: 48
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M2, | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 0.3-2 | B0822R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 0.3-3 | B0832R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 0.5-4 | B0843R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.8mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 0.5-5 | B0853R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 8-4 | B1043R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 8-5 | B1053R |
No
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 8-6 | B1065R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 8-8 | B1085R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 2-12 | B2513R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 3.5-4 | B4043R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 3.5-5S | B4053R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 3.5-6L | B4065R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-10 | B6010R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-12 | B6013R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-4 | B6043R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4 (B=9.0mm) | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-4S | B6043RM |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M4(B=7.0mm) | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-4N | B6043RNS |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-5 | B6053R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-6 | B6065R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-8 | B6085R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.6-6.6mm2, M14 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 5.5-14 | B6015R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 8-10 | B1010R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-4.0mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | NICHIFU, 3.5-8 | B4085R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 6.6-10.5mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02000100 , 8-NK4 | B1043RS |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01001104 , 0.5-3 | B0532R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01004100 , 0.5-4 | B0543R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.5mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01006100 , 0.5-5 | B0553R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01022500 , 1.25-3 | B1532R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01025500 , 1.25-M3 | B1537R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01030500 , 1.25-4 | B1543R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, NARROW | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01032100 , 1.25-M4 | B1543RS |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01033500 , 1.25-5 | B1553R |
No
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01035100 , 1.25-6 | B1565R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01036100 , 1.25-8 | B1585R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01037100 , 1.25-10 | B1510R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-1.6mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01038100 , 1.25-12 | B1513R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01113100 , 2-3 | B2532R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M3, NARROW | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01117100 , 2-MS3 | B2532RS |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01115500 , 2-M3 | B2537R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01123100 , 2-M4 | B2543R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M4, WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01122500 , 2-4 | B2543RB |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01127100 , 2-M5 | B2553R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01125500 , 2-5 | B2553RB |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01128500 , 2-6 | B2565R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01129500 , 2-8 | B2585R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.6mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01130100 , 2-10 | B2510R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-6.0mm2, M3, NARROW | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01220100 , 5.5-S3 | B6032RS |
Yes
|
|
|
| UNINSULATED RING TERMINAL 2.5-6.0mm2, M4, NARROW | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01223100 , 5.5-S4 | B6043RS |
Yes
|
|
|
- Total: 48
Back to top
Do you need help finding the right product or other advice contact us.
