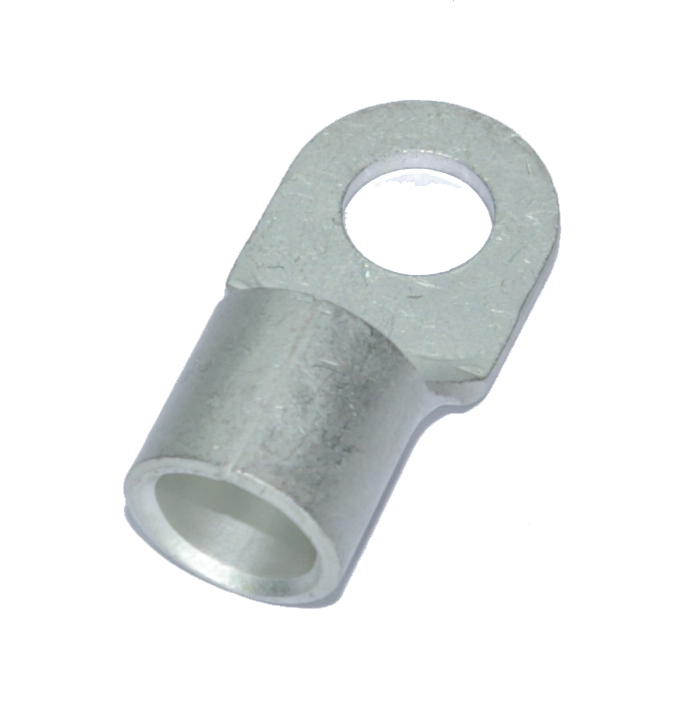

DIN-kabelskor (Svetsad)
DIN-kabelskor (plåtkabelskor)
Material: 99.9% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
Serien uppfyller måttstandard: DIN 46234
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 27 A, 48 A, 62 A, 88 A, 115 A, 160 A, 235 A, 255 A, 300 A, 395 A, 400 A, 470 A
- Flange shape:
- Ring shape
- According to DIN:
- Yes
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
- Neck type:
- Welded
Show more
Item List
- Total: 58
- Total: 58
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Dimensions
- Total: 58
Product Description | HS | ID | OD | T | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M2.5 | 2.7 mm | 1.6 mm | 0.8 mm | 11 mm | 5 mm | 6 mm | 100 . | pcs | 2.5 . | 1.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M3 | 3.2 mm | 1.6 mm | 0.8 mm | 11 mm | 5 mm | 6 mm | 100 . | pcs | 3 . | 1.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M3.5 | 3.7 mm | 1.6 mm | 0.8 mm | 11 mm | 5 mm | 6 mm | 100 . | pcs | 3.5 . | 1.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M4 | 4.3 mm | 1.6 mm | 0.8 mm | 12 mm | 5 mm | 8 mm | 100 . | pcs | 4 . | 1.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M5 | 5.3 mm | 1.6 mm | 0.8 mm | 13 mm | 5 mm | 10 mm | 100 . | pcs | 5 . | 1.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M6 | 6.5 mm | 1.6 mm | 0.8 mm | 17 mm | 5 mm | 12 mm | 100 . | pcs | 6 . | 1.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M3 | 3.2 mm | 2.3 mm | 0.8 mm | 11 mm | 5 mm | 6 mm | 100 . | pcs | 3 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M4 | 4.3 mm | 2.3 mm | 0.8 mm | 12 mm | 5 mm | 8 mm | 100 . | pcs | 4 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M5 | 5.3 mm | 2.3 mm | 0.8 mm | 14 mm | 5 mm | 10 mm | 100 . | pcs | 5 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M6 | 6.5 mm | 2.3 mm | 0.8 mm | 16 mm | 5 mm | 11 mm | 100 . | pcs | 6 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M8 | 8.4 mm | 2.3 mm | 0.8 mm | 17 mm | 5 mm | 14 mm | 100 . | pcs | 8 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M10 | 10.5 mm | 2.3 mm | 0.8 mm | 20 mm | 5 mm | 18 mm | 100 . | pcs | 10 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M12 | 13 mm | 2.3 mm | 0.8 mm | 20 mm | 5 mm | 18 mm | 100 . | pcs | 12 . | 2.5 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M4 | 4.3 mm | 3.6 mm | 1 mm | 14 mm | 6 mm | 8 mm | 100 . | pcs | 4 . | 6 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M5 | 5.3 mm | 3.6 mm | 1 mm | 15 mm | 6 mm | 10 mm | 100 . | pcs | 5 . | 6 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M6 | 6.5 mm | 3.6 mm | 1 mm | 16 mm | 6 mm | 11 mm | 100 . | pcs | 6 . | 6 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M8 | 8.4 mm | 3.6 mm | 1 mm | 19 mm | 6 mm | 14 mm | 100 . | pcs | 8 . | 6 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M10 | 10.5 mm | 3.6 mm | 1 mm | 21 mm | 6 mm | 18 mm | 100 . | pcs | 10 . | 6 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M5 | 5.3 mm | 4.5 mm | 1.1 mm | 16 mm | 8 mm | 10 mm | 100 . | pcs | 5 . | 10 mm² |
No
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M6 | 6.5 mm | 4.5 mm | 1.1 mm | 17 mm | 8 mm | 11 mm | 100 . | pcs | 6 . | 10 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M8 | 8.4 mm | 4.5 mm | 1.1 mm | 20 mm | 8 mm | 14 mm | 100 . | pcs | 8 . | 10 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M10 | 10.5 mm | 4.5 mm | 1.1 mm | 21 mm | 8 mm | 18 mm | 100 . | pcs | 10 . | 10 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M12 | 13 mm | 4.5 mm | 1.1 mm | 23 mm | 8 mm | 22 mm | 100 . | pcs | 12 . | 10 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M5 | 5.3 mm | 5.8 mm | 1.2 mm | 20 mm | 10 mm | 11 mm | 100 . | pcs | 5 . | 16 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M6 | 6.5 mm | 5.8 mm | 1.2 mm | 20 mm | 10 mm | 11 mm | 100 . | pcs | 6 . | 16 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M8 | 8.4 mm | 5.8 mm | 8.5 mm | 1.2 mm | 22 mm | 10 mm | 14 mm | 100 . | pcs | 8 . | 16 mm² |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M10 | 10.5 mm | 5.8 mm | 1.2 mm | 24 mm | 10 mm | 18 mm | 100 . | pcs | 10 . | 16 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M5 | 5.3 mm | 7.5 mm | 1.5 mm | 25 mm | 11 mm | 12 mm | 100 . | pcs | 5 . | 25 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M6 | 6.5 mm | 7.5 mm | 1.5 mm | 25 mm | 11 mm | 12 mm | 100 . | pcs | 6 . | 25 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M8 | 8.4 mm | 7.5 mm | 1.5 mm | 25 mm | 11 mm | 16 mm | 100 . | pcs | 8 . | 25 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M10 | 10.5 mm | 7.5 mm | 1.5 mm | 26 mm | 11 mm | 18 mm | 100 . | pcs | 10 . | 25 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M12 | 13 mm | 7.5 mm | 1.5 mm | 31 mm | 11 mm | 22 mm | 100 . | pcs | 12 . | 25 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M16 | 17 mm | 7.5 mm | 1.5 mm | 35 mm | 11 mm | 28 mm | 100 . | pcs | 16 . | 25 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M6 | 6.5 mm | 9 mm | 1.6 mm | 26 mm | 12 mm | 15 mm | 100 . | pcs | 6 . | 35 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M8 | 8.4 mm | 9 mm | 1.6 mm | 26 mm | 12 mm | 16 mm | 100 . | pcs | 8 . | 35 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M10 | 10.5 mm | 9 mm | 1.6 mm | 27 mm | 12 mm | 18 mm | 100 . | pcs | 10 . | 35 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M12 | 13 mm | 9 mm | 1.6 mm | 31 mm | 12 mm | 22 mm | 100 . | pcs | 12 . | 35 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M16 | 17 mm | 9 mm | 1.6 mm | 36 mm | 12 mm | 28 mm | 100 . | pcs | 16 . | 35 mm² |
No
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M6 | 6.5 mm | 11 mm | 1.8 mm | 34 mm | 16 mm | 18 mm | 50 . | pcs | 6 . | 50 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M8 | 8.4 mm | 11 mm | 1.8 mm | 34 mm | 16 mm | 18 mm | 50 . | pcs | 8 . | 50 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M10 | 10.5 mm | 11 mm | 1.8 mm | 34 mm | 16 mm | 18 mm | 50 . | pcs | 10 . | 50 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M12 | 13 mm | 11 mm | 1.8 mm | 36 mm | 16 mm | 22 mm | 50 . | pcs | 12 . | 50 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M6 | 6.5 mm | 13 mm | 2 mm | 38 mm | 18 mm | 22 mm | 50 . | pcs | 6 . | 70 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M8 | 8.4 mm | 13 mm | 2 mm | 38 mm | 18 mm | 22 mm | 25 . | pcs | 8 . | 70 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M10 | 10.5 mm | 13 mm | 2 mm | 38 mm | 18 mm | 22 mm | 50 . | pcs | 10 . | 70 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M12 | 13 mm | 13 mm | 2 mm | 38 mm | 18 mm | 22 mm | 50 . | pcs | 12 . | 70 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M8 | 8.4 mm | 15 mm | 2.5 mm | 42 mm | 20 mm | 24 mm | 25 . | pcs | 8 . | 95 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M10 | 10.5 mm | 15 mm | 2.5 mm | 42 mm | 20 mm | 24 mm | 25 . | pcs | 10 . | 95 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M12 | 13 mm | 15 mm | 2.5 mm | 42 mm | 20 mm | 24 mm | 25 . | pcs | 12 . | 95 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M16 | 17 mm | 15 mm | 2.5 mm | 44 mm | 20 mm | 28 mm | 25 . | pcs | 16 . | 95 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M8 | 8.4 mm | 16.5 mm | 3 mm | 44 mm | 22 mm | 24 mm | 25 . | pcs | 8 . | 120 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M10 | 10.5 mm | 16.5 mm | 3 mm | 44 mm | 22 mm | 24 mm | 25 . | pcs | 10 . | 120 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M12 | 13 mm | 16.5 mm | 3 mm | 44 mm | 22 mm | 24 mm | 25 . | pcs | 12 . | 120 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 150mm2, M12 | 13 mm | 19 mm | 3.2 mm | 50 mm | 24 mm | 30 mm | 25 . | pcs | 12 . | 150 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 185mm2, M12 | 13 mm | 21 mm | 3.5 mm | 50 mm | 28 mm | 36 mm | 25 . | pcs | 12 . | 185 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 185mm2, M16 | 17 mm | 21 mm | 3.5 mm | 50 mm | 28 mm | 36 mm | 25 . | pcs | 16 . | 185 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 240mm2, M12 | 13 mm | 23.5 mm | 4 mm | 56 mm | 32 mm | 38 mm | 10 . | pcs | 12 . | 240 mm² |
Yes
|
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 240mm2, M16 | 17 mm | 23.5 mm | 4 mm | 56 mm | 32 mm | 38 mm | 10 . | pcs | 16 . | 240 mm² |
Yes
|
|
|
- Total: 58
Similar Options
Approvals
- Total: 58
- Total: 58
Technical Properties
- Total: 58
Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M2.5 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M3 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M3.5 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M4 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M5 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M6 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M3 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M4 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M5 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M6 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M8 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M10 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M12 | No | 27 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M4 | No | 48 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M5 | No | 48 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M6 | No | 48 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M8 | No | 48 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M10 | No | 48 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M5 | No | 62 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M6 | No | 62 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M8 | No | 62 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M10 | No | 62 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M12 | No | 62 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M5 | No | 88 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M6 | No | 88 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M8 | No | 88 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M10 | No | 88 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M5 | No | 115 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M6 | No | 115 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M8 | No | 115 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M10 | No | 115 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M12 | No | 115 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M16 | No | 115 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M6 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M8 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M10 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M12 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M16 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M6 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M8 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M10 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M12 | No | 160 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M6 | No | 235 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M8 | No | 235 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M10 | No | 235 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M12 | No | 235 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M8 | No | 255 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M10 | No | 255 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M12 | No | 255 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M16 | No | 255 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M8 | No | 300 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M10 | No | 300 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M12 | No | 300 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 150mm2, M12 | No | 395 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 185mm2, M12 | No | 400 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 185mm2, M16 | No | 400 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 240mm2, M12 | No | 470 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 240mm2, M16 | No | 470 A | Ring shape | Yes | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
- Total: 58
Other information
- Total: 58
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M2.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01759100 , GS2.5-1 | 03400 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01761100 , GS3-1 | 03401 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01763100 , GS3.5-1 | 03402 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01766100 , GS4-1 | 03403 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01767100 , GS5-1 | 03404 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 1.5mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01769100 , GS6-1 | 03472 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01786100 , GS3-2.5 | 03405 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01789100 , GS4-2.5 | 03406 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01791100 , GS5-2.5 | 03407 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01793100 , GS6-2.5 | 03408 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01795100 , GS8-2.5 | 03409 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01796100 , GS10-2.5 | 03475 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 2.5mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01797100 , GS12-2.5 | 03481 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01811100 , GS4-6 | 03410 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 1812100 , GS5-6 | 03411 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 1813100 , GS6-6 | 03412 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 1814100 , GS8-6 | 03413 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 6.0mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 01815100 , GS10-6 | 03414 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 2201100 , GS5-10 | 03415 |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 2202100 , GS6-10 | 03416 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 2203100 , GS8-10 | 03417 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 2204100 , GS10-10 | 03418 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 10mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02205100 , GS12-10 | 03419 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02216100 , GS5-16 | 03420 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02217100 , GS6-16 | 03421 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 2218100 , GS8-16 | 03422 |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 16mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 2219100 , GS10-16 | 03423 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02229100 , GS5-25 | 03425 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02230100 , GS6-25 | 03426 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02232100 , GS8-25 | 03427 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02233100 , GS10-25 | 03428 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02234100 , GS12-25 | 03429 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 25mm2, M16 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02236100 , GS16-25 | 03430 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02242100 , GS6-35 | 03431 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02244100 , GS8-35 | 03432 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02245100 , GS10-35 | 03433 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02246100 , GS12-35 | 03434 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 35mm2, M16 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 02247100 , GS16-35 | 03435 |
No
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 03306100 , GS6-50 | 03565 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 03307100 , GS8-50 | 03436 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 03308100 , GS10-50 | 03437 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 50mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3309100 , GS12-50 | 03438 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3320100 , GS6-70 | 03498 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3321100 , GS8-70 | 03485 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3322100 , GS10-70 | 03440 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 70mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3323100 , GS12-70 | 03441 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3330100 , GS8-95 | 03443-8 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3331100 , GS10-95 | 03443 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3332100 , GS12-95 | 03444 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 95mm2, M16 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 03334100 , GS16-95 | 03445 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3348100 , GS8-120 | 03496 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3349100 , GS10-120 | 03446 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 120mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 3350100 , GS12-120 | 03447 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 150mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 04362100 , GS12-150 | 03449 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 185mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 4372100 , GS12-185 | 03451 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 185mm2, M16 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 4373100 , GS16-185 | 03452 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 240mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 04383130 , GS12-240 | 03453 |
Yes
|
|
|
UNINSULATED RING TERMINAL, DIN 46234 240mm2, M16 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | JST, 4384100 , GS16-240 | 03454 |
Yes
|
|
|
- Total: 58
Back to top
Do you need help finding the right product or other advice contact us.
