BR 2553 R

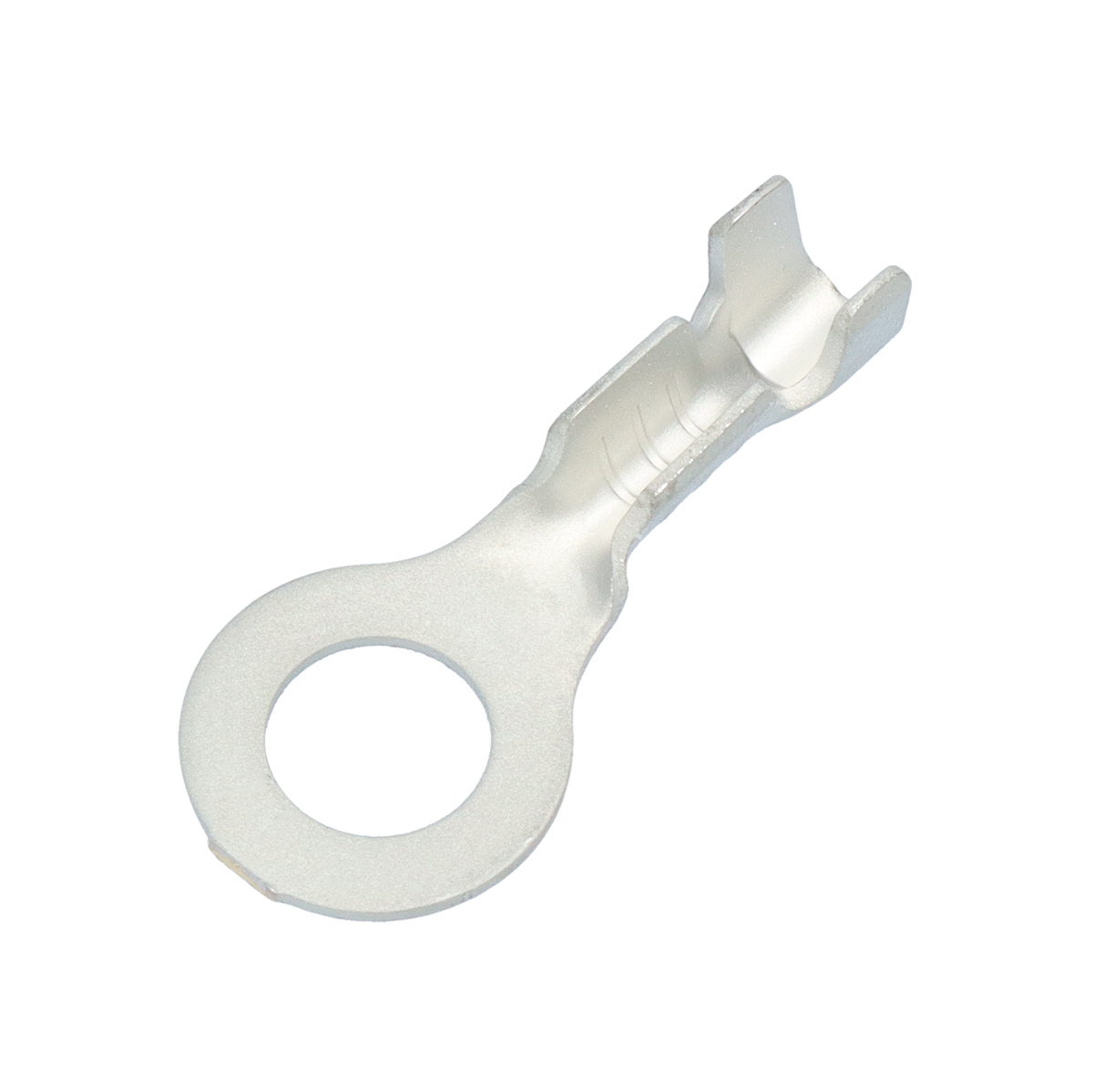

UNINSULATED RING TERMINAL 1.0-2.5mm2, M5
BR 2553 R
- Availability:
-
Yes
- Total: 1
Related items
Ringkabelskor (rullpress)
BR-serien
Material: Mässing
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Rullpressning (open barrel)
- Total: 1
Product Properties
| Reel/roll packaging | No |
|---|---|
| Max. current (Imax) | 27 A |
| Flange shape | Ring shape |
| According to DIN | No |
| Insulation | None |
| Colour insulation | Other |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Operating temperature | -55-110 °C |
| Material | Brass |
| Neck type | Open barrel crimp |
Dimensions
| D | 5.3 mm |
|---|---|
| E | 17 mm |
| L | 21 mm |
| W | 8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 5 . |
| Nominal cross section | 1-2.5 mm² |
Logistics
| Barcode | 733117613668 |
|---|---|
| Country of origin | BE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | BR 2553 R |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Ring Terminals - Roller pressed |
| Search Description | JST, 66586700 , BRB-2.5T-M5 |
| Alternative SKU | BR2553R |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| PFAS | No PFAS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
