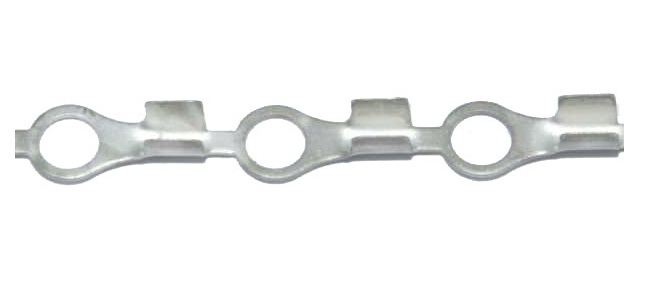

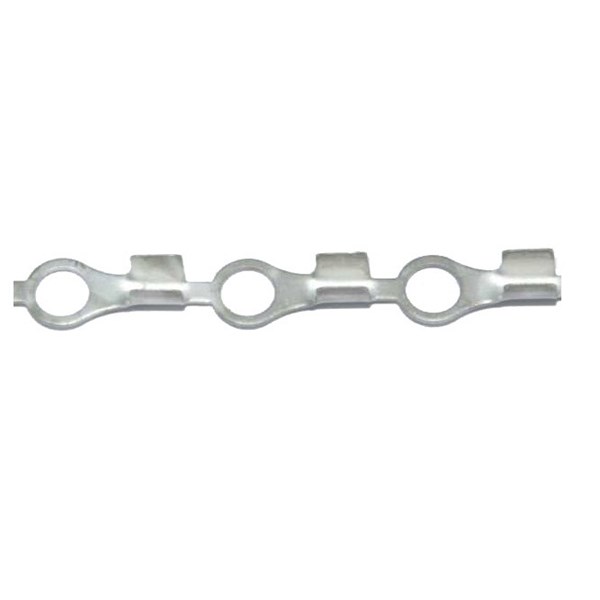

Ringkabelskor (rullpress), Bandvara
Bandvara
Temperaturområde: Upp till 110° C
Technical properties
- Reel/roll packaging:
- Yes
- Max. current (Imax):
- 16 A, 19 A, 27 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Bare, Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Brass
- Neck type:
- Open barrel crimp
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 7
| Product Description | HS | E | T | L | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | 7500 . | pcs | 4 . | 0.5-2 mm² |
Yes
|
|
|
|||||
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, BB 1543 R WIDE | 4.3 mm | 17 mm | 0.6 mm | 21.75 mm | 9.5 mm | 4000 . | pcs | 4 . | 0.5-1 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, BB 2553 R NO PLATING | 5.3 mm | 17 mm | 0.6 mm | 21.75 mm | 9.5 mm | 4000 . | pcs | 5 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M3, BB 0532 R | 15000 . | pcs |
No
|
|
|
|||||||
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M5, BB 0853 R NO PLATING | 7500 . | pcs | 5 . | 0.3-0.75 mm² |
Yes
|
|
|
|||||
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R NO PLATING | 7500 . | pcs | 4 . | 0.5-2 mm² |
Yes
|
|
|
|||||
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | 5000 . | pcs | 4 . | 0.5-2 mm² |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | UL-File No. | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, BB 1543 R WIDE | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, BB 2553 R NO PLATING | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M3, BB 0532 R | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M5, BB 0853 R NO PLATING | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R NO PLATING | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | E42024 |
|
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | Yes | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, BB 1543 R WIDE | Yes | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, BB 2553 R NO PLATING | Yes | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Bare | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M3, BB 0532 R | Yes | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | Brass | Open barrel crimp |
No
|
|
|
||
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M5, BB 0853 R NO PLATING | Yes | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Bare | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R NO PLATING | Yes | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | Yes | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 35094200 , SRA-51-4 | SRA-51T-4 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, BB 1543 R WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | X0120900 , SRB-1.0T-M4-W9.5 | SRB1.0TM4W9.5 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.0-2.5mm2, M5, BB 2553 R NO PLATING | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | X0109400 , SRB-2.5-M5 | SRB2.5-M5 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M3, BB 0532 R | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 35038200 , SRA-20T-3.2 | SRA-20T-3.2 |
No
|
|
|
| UNINSULATED RING TERMINAL 0.3-0.75mm2, M5, BB 0853 R NO PLATING | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 35086000 | SRA-21-H5 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R NO PLATING | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 35094000 | SRA-51-4 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-2.0mm2, M4, BB 2543 R | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 35104200 , SRB-51T-4 | SRB51T-4 |
Yes
|
|
|
- Total: 7
