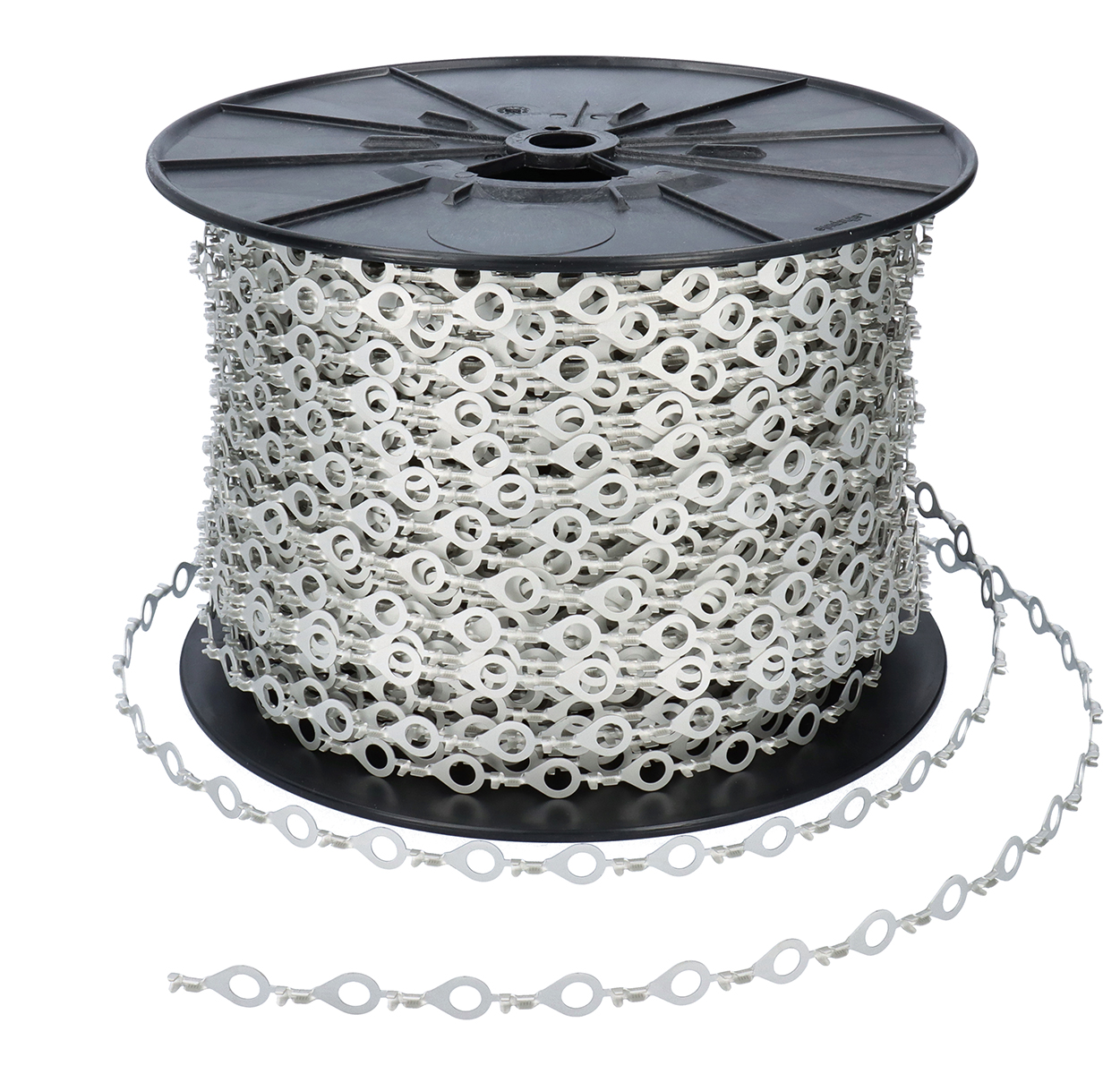

Ringkabelskor (rullpress), bandvara
Temperaturområde: Upp till 110° C
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
- Neck type:
- Open barrel crimp
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

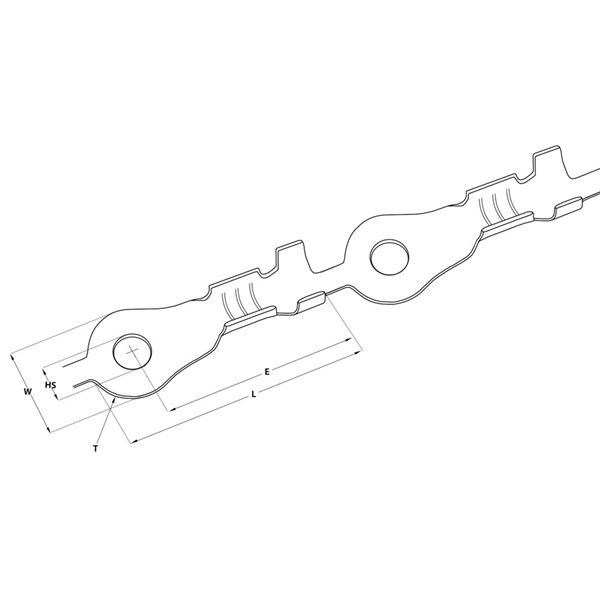

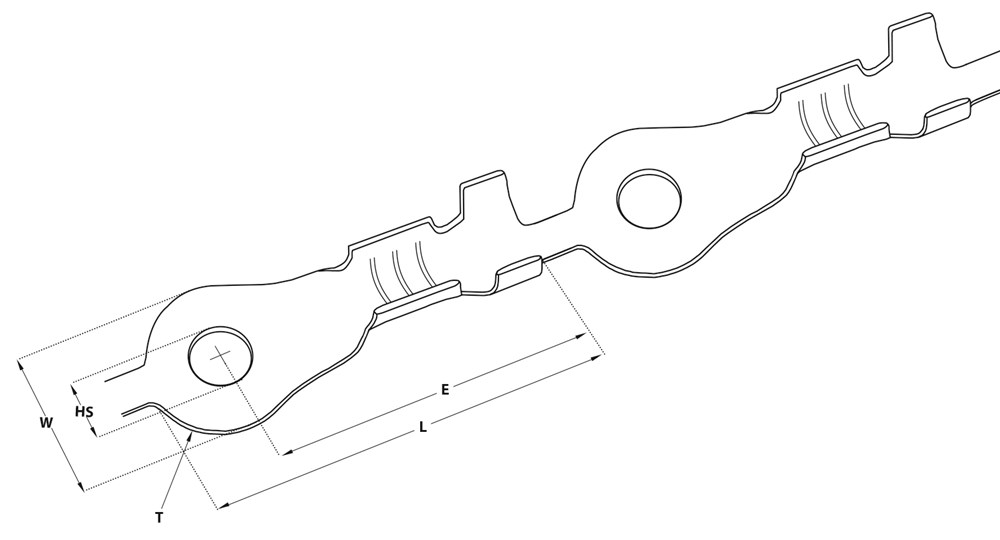

Dimensions
- Total: 1
| Product Description | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 | 40000 . | pcs | 4 . | 0.2-0.6 mm² |
No
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Open barrel crimp |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 42508-2 |
No
|
|
|
- Total: 1
