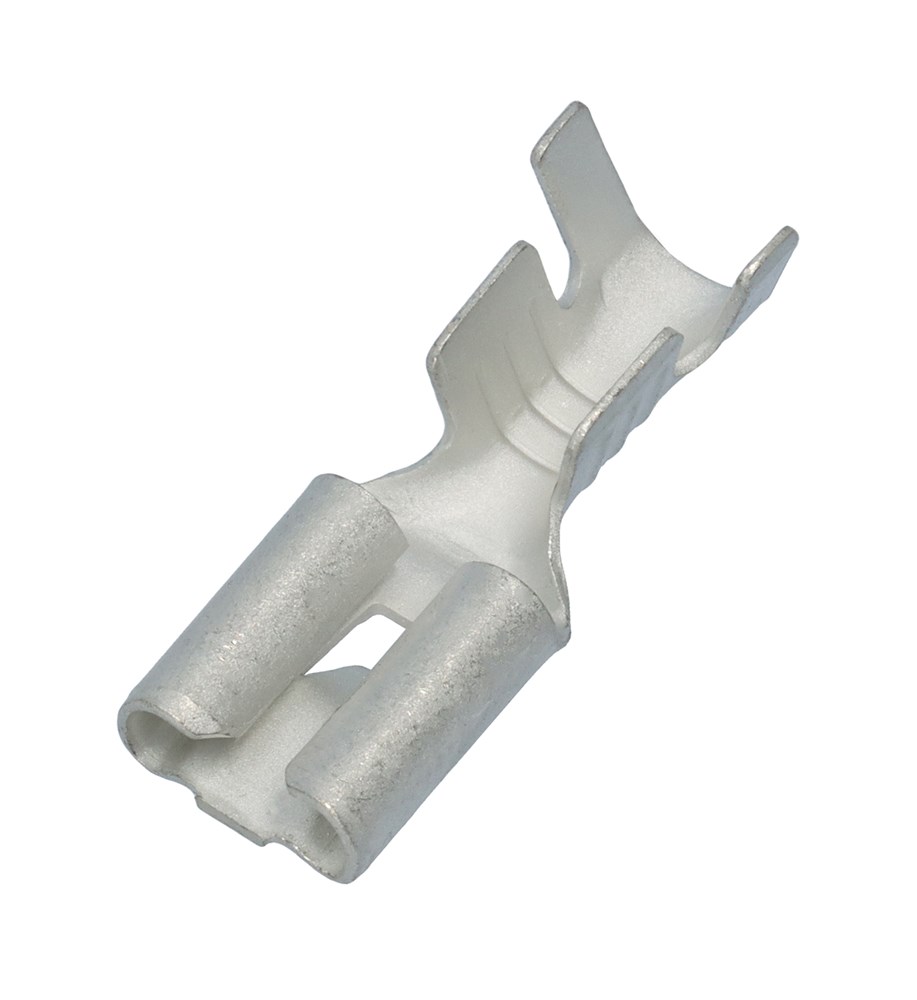

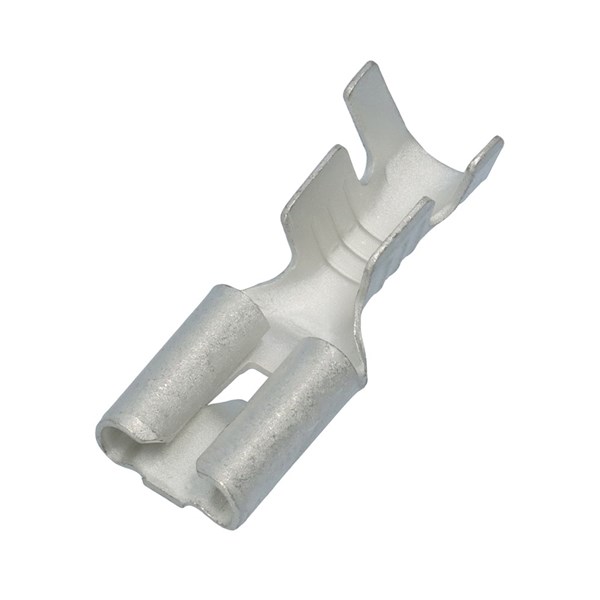

B 2504 FLN-8
UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 4.8x0.8mm
B 2504 FLN-8
- Availability:
-
Yes
- Total: 1
Related items
Flatstiftshylsor med nabb
B-serien
Material: Mässing
Ytbehandling: > 4µ Sn
Temperaturområde: -10 - 110°C
Rullpressning (open barrel)
- Total: 1
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 15 A |
| Insulation | Not isolated |
| Colour insulation | Other |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Other |
| Material | Brass |
| Neck type | Open barrel crimp |
| Packaging | Loose piece |
Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 1-2.5 mm² |
| Plug dimensions | Flat 4.8x0.8 mm |
Logistics
| Barcode | 733117613551 |
|---|---|
| Country of origin | TR |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | B 2504 FLN-8 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Receptacle - for snap on housing |
| Alternative SKU | B2504FLN-8 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN Export Control Code Number | EAR99 |
