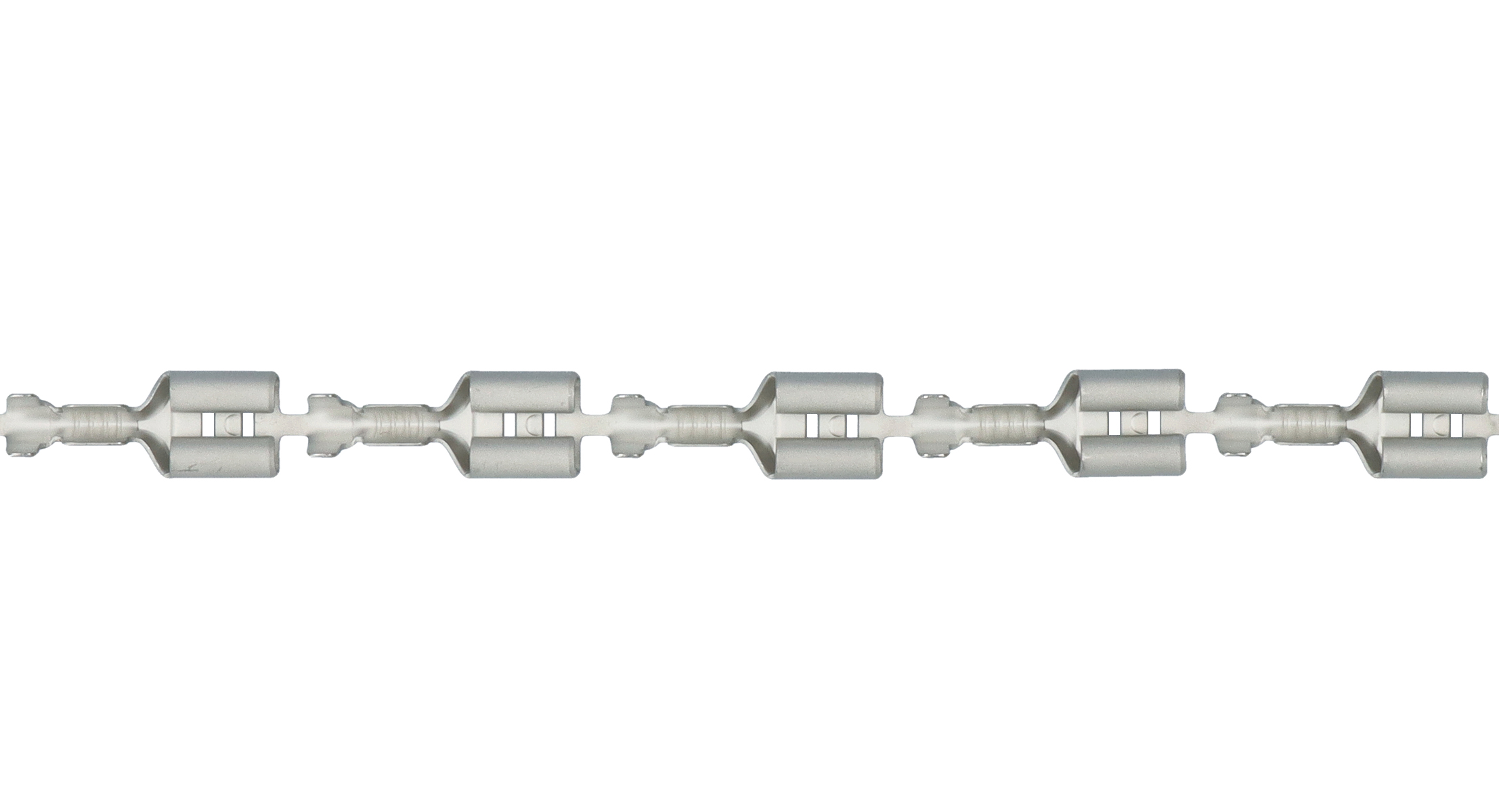

Flatstiftshylsor - Bandvara
Material:
B 2507 FL SILVER: Silverplätterad mässing
BB-serien: Förtent mässing
STO-xxT-110N: Förtent mässing
STO-x.x-xxxN: Oförtent mässing
Temperaturområde: -10 - 110°C
Passande pressverktyg för STO-serien från JST är YC-041 (STO-01T-110N) och YC-062 (STO-41T-110N). Se länk nedan.
Technical properties
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 24 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -10-110 °C
- Material:
- Brass
- Neck type:
- Open barrel crimp
- Packaging:
- Tape on Reel
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE REEL, BB 1507 FL OF, 0.5-1.0mm2, 6.3x0.8mm | 5000 . | pcs | 0.5-1 mm² | Flat 6.3x0.8 mm |
No
|
|
|
| UNINSULATED RECEPTACLE REEL, BB 4607 FL OF, 2.5-6.0mm2, 6.3x0.8mm | 4000 . | pcs | 2.5-6 mm² | Flat 6.3x0.8 mm |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | UL-File No. | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE REEL, BB 1507 FL OF, 0.5-1.0mm2, 6.3x0.8mm | E70188 |
|
No
|
|
|
| UNINSULATED RECEPTACLE REEL, BB 4607 FL OF, 2.5-6.0mm2, 6.3x0.8mm | E70188 |
|
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Neck type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE REEL, BB 1507 FL OF, 0.5-1.0mm2, 6.3x0.8mm | Bushing | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Tape on Reel |
No
|
|
|
| UNINSULATED RECEPTACLE REEL, BB 4607 FL OF, 2.5-6.0mm2, 6.3x0.8mm | Bushing | 24 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Tape on Reel |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE REEL, BB 1507 FL OF, 0.5-1.0mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - Reel | 36902600 | STO-1.0-250N |
No
|
|
|
| UNINSULATED RECEPTACLE REEL, BB 4607 FL OF, 2.5-6.0mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - Reel | 66539600 | STO-6.0-250N |
No
|
|
|
- Total: 2
