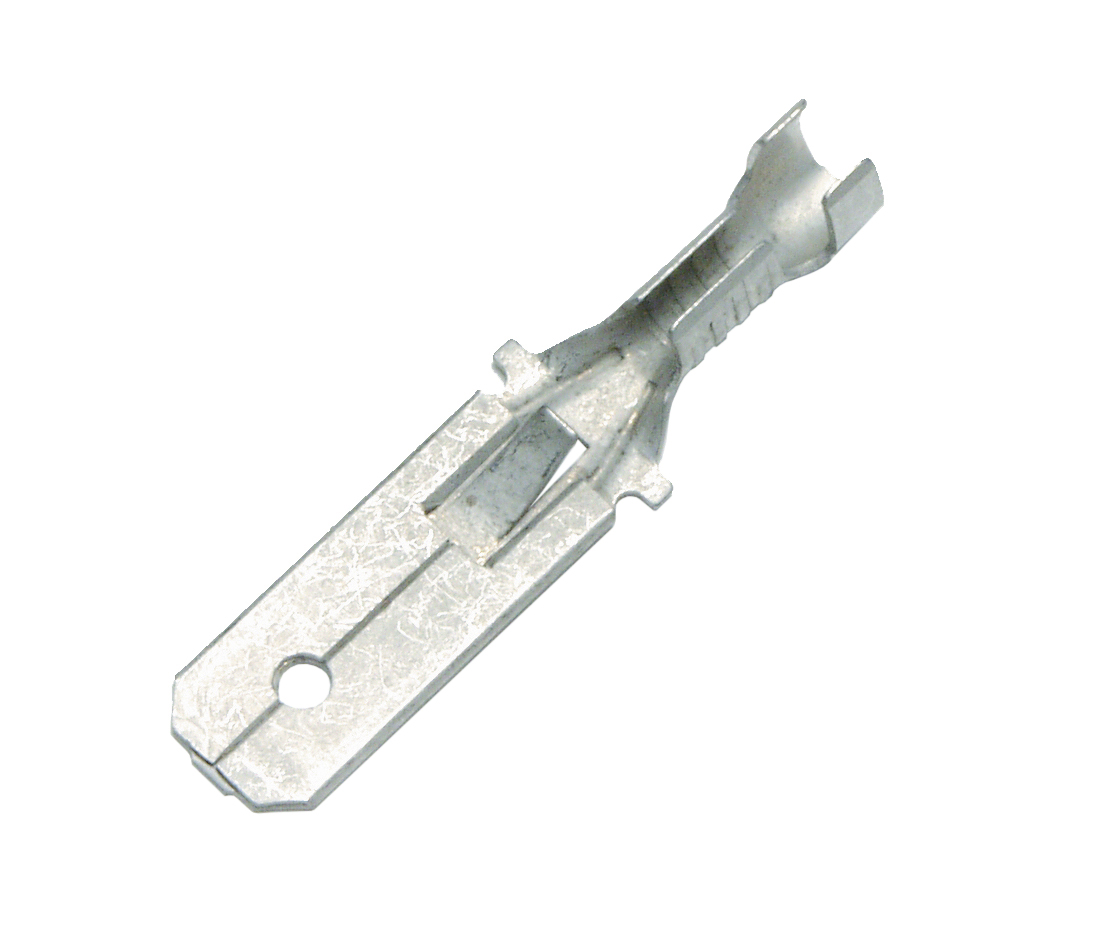

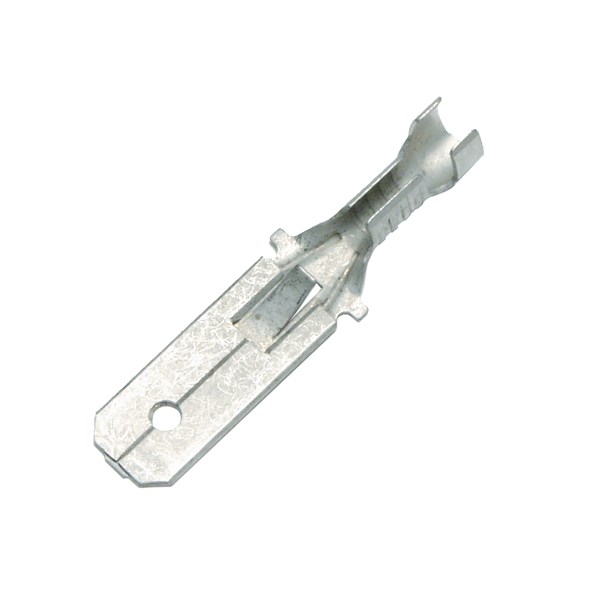

Flatstift med nabb
B-serien
Material: Mässing
Ytbehandling: > 4µ Sn
Temperaturområde: -10 - 110°C
Rullpressning (open barrel)
Technical properties
- Model:
- Plug
- Max. current (Imax):
- 8 A, 10 A, 15 A, 24 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -10-110 °C
- Material:
- Brass
- Neck type:
- Open barrel crimp
- Packaging:
- Loose piece
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity - Cable lugs
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 10
- Total: 10
Similar Options
Approvals
- Total: 10
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 2.8x0.8mm, STRAIGHT LEG |
Yes
|
|
|
|||
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 4.8x0.8mm, STRAIGHT LEG |
Yes
|
|
|
|||
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | E70188 |
|
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm |
|
Yes
|
|
|
||
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm |
|
Yes
|
|
|
||
| UNINSULATED TAB + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, STRAIGHT LEG |
|
Yes
|
|
|
||
| UNINSULATED TAB + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm |
Yes
|
|
|
|||
| UNINSULATED TAB + LOCKING LIP 1.5-2.5mm2, 6.3x0.8mm, PRE-ROLLED LEG |
|
Yes
|
|
|
||
| UNINSULATED TAB + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, PRE-ROLLED LEG |
|
Yes
|
|
|
||
| UNINSULATED TAB + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, STRAIGHT LEG |
|
Yes
|
|
|
- Total: 10
Technical Properties
- Total: 10
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Neck type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 2.8x0.8mm, STRAIGHT LEG | Plug | 8 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 4.8x0.8mm, STRAIGHT LEG | Plug | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | Plug | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | Plug | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | Plug | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, STRAIGHT LEG | Plug | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm | Plug | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 1.5-2.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | Plug | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, PRE-ROLLED LEG | Plug | 24 A | Not isolated | Other | No | No | Other | Brass |
Yes
|
|
|
|||
| UNINSULATED TAB + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, STRAIGHT LEG | Plug | 24 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 2.8x0.8mm, STRAIGHT LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | 05628.123.011 |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 4.8x0.8mm, STRAIGHT LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | 06015.123.111 |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | 36943600 | LIM-1.0T-250D |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | B409H |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 0.5-1.0mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | B409HESPA |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, STRAIGHT LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | B410H |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | 36943800 | LIM-2.5T-250D |
Yes
|
|
|
| UNINSULATED TAB + LOCKING LIP 1.5-2.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | B410HESPA |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | B411HESPA |
Yes
|
|
|
|
| UNINSULATED TAB + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, STRAIGHT LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for crimping | B411H |
Yes
|
|
|
- Total: 10
