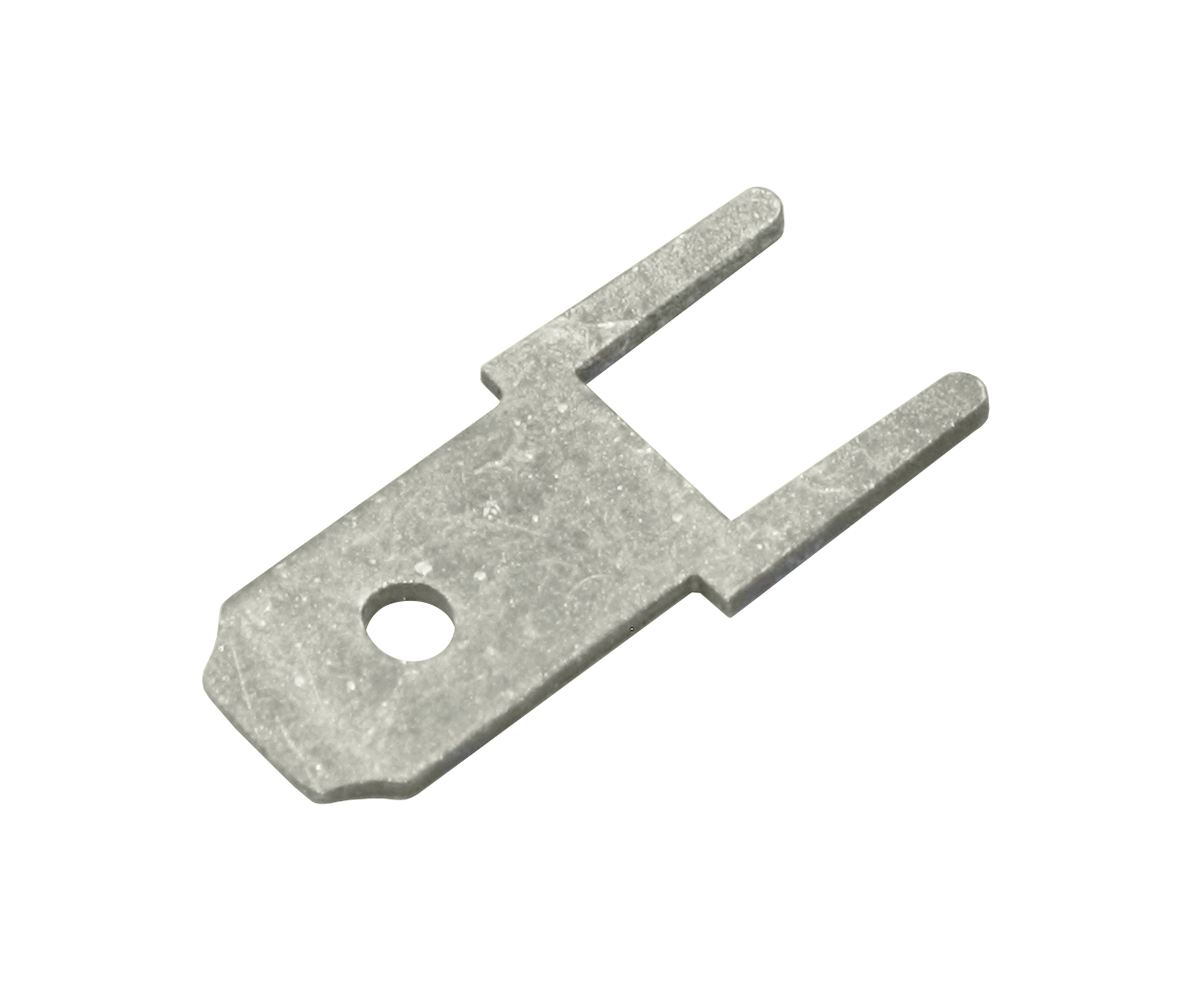

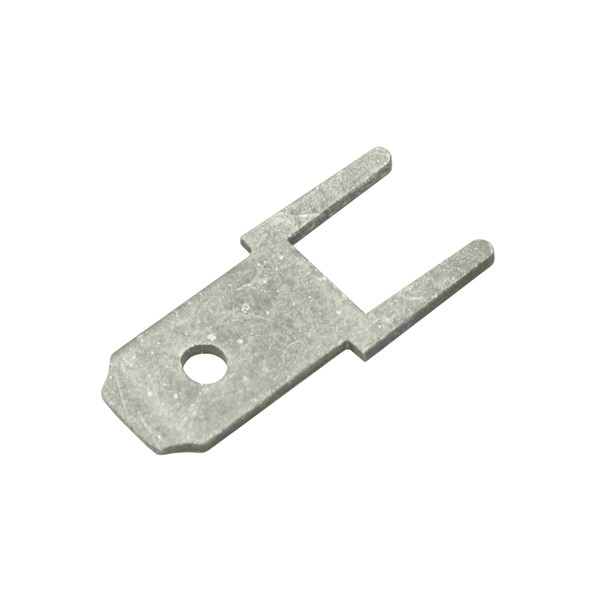

Flatstift (lödning)
Rak, 1 x flatstift, 2 LS (lödstift)
Ytbehandling: > 3mc Sn
Technical properties
- Model:
- Plug
- Max. current (Imax):
- 24 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -40-110 °C
- Material:
- Brass
- Packaging:
- Loose piece
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents

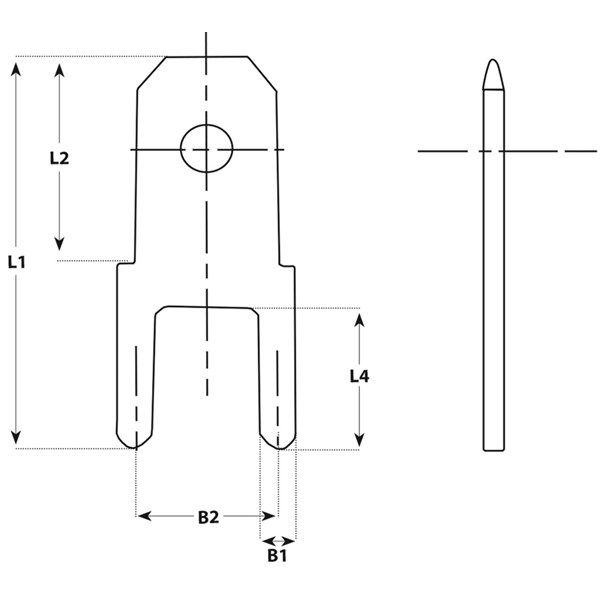

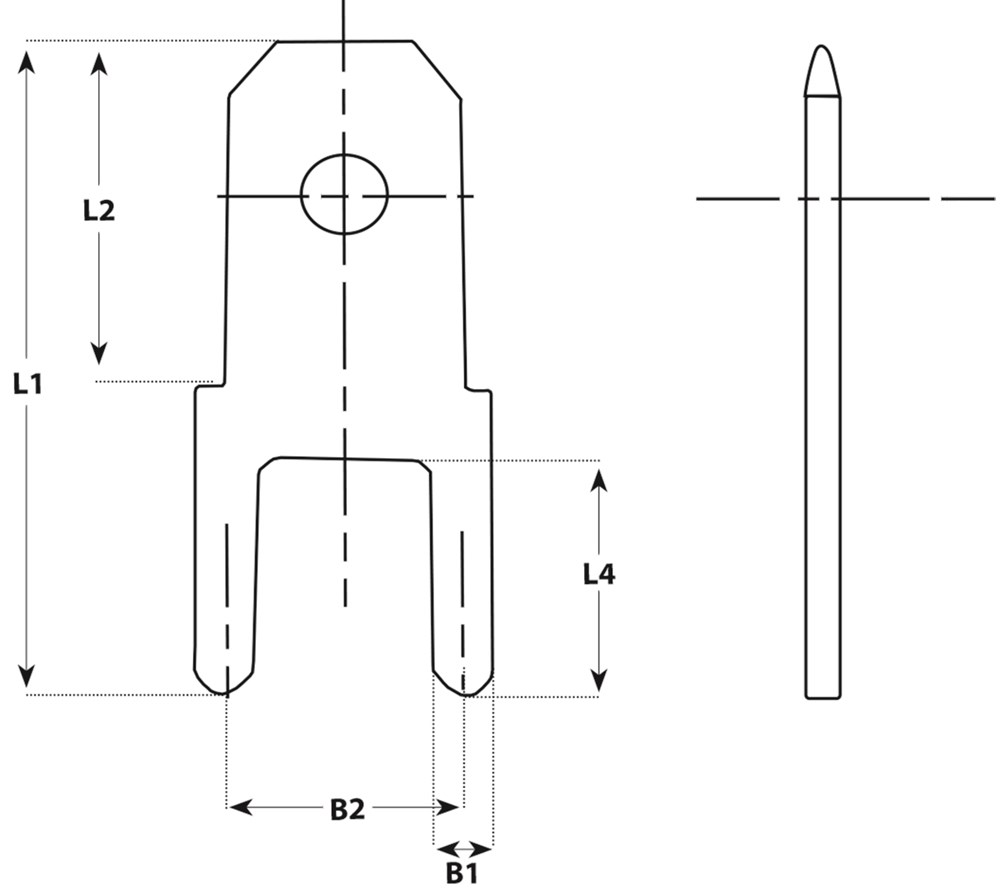

Dimensions
- Total: 2
| Product Description | B2 | B1 | L1 | L2 | L4 | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.8mm), 2 LS | 5 mm | 1.2 mm | 13.5 mm | 7.3 mm | 5 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 4.8x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.5mm), 2 LS | 5 mm | 1.2 mm | 13.5 mm | 7.3 mm | 5.6 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 4.8x0.5 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.8mm), 2 LS |
Yes
|
|
|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.5mm), 2 LS |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.8mm), 2 LS | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.5mm), 2 LS | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.8mm), 2 LS | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for soldering | 17094.123.025 |
Yes
|
|
|
| UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(4.8x0.5mm), 2 LS | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for soldering | 17093.123.011 |
Yes
|
|
|
- Total: 2
