DS 4652 SK-25

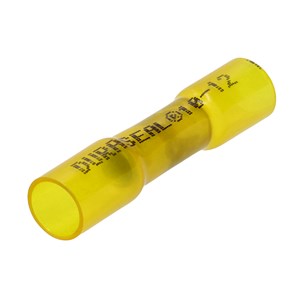

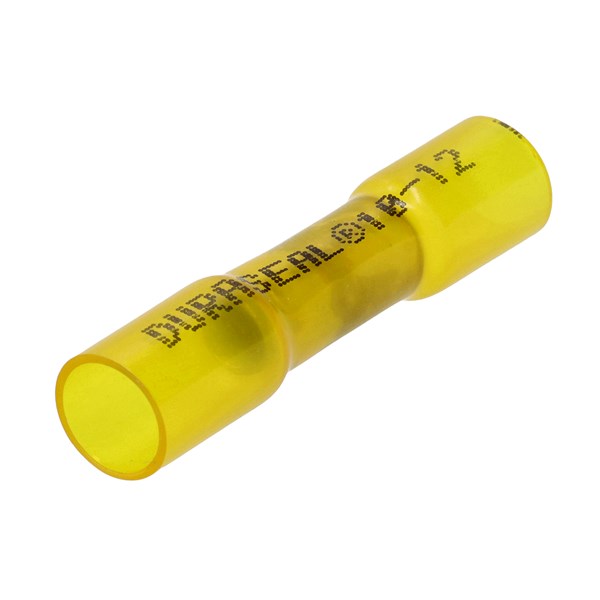

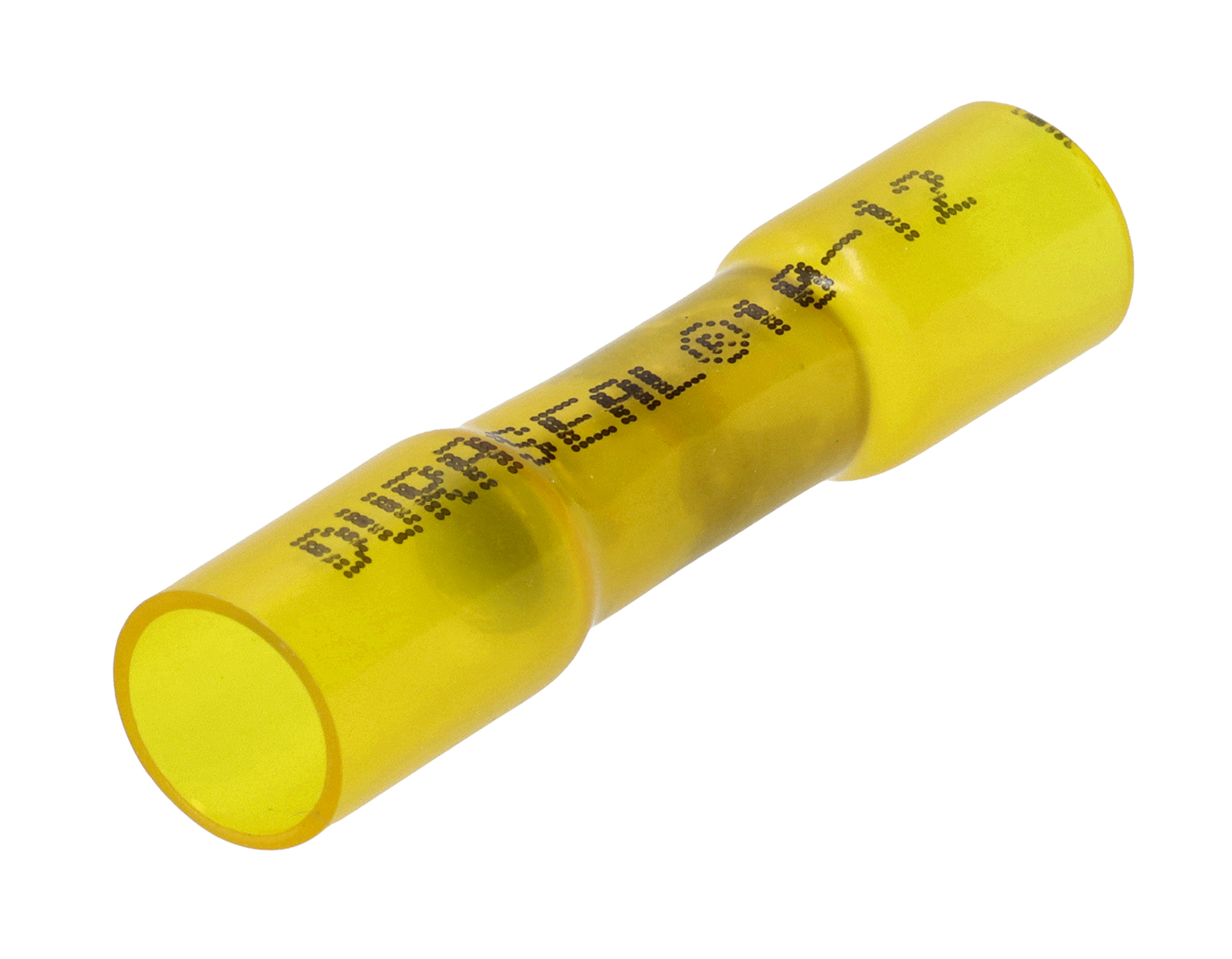

SHRINK INSULATED BUTT SPLICE YELLOW, 38mm
DS 4652 SK-25
- Availability:
-
Yes
- Total: 1
Related items
Heat Shrink Butt DS-series
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabricationMarine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyamid (PA) nylon with meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | UL model |
| Number of branches | 0 N/A |
| Insulation | Polyamide (PA) |
| Colour insulation | Yellow |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 600 V |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Material | Copper |
| Voltage max | 600V |
Dimensions
| MOQ | 25 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 4-6.64 mm² |
Logistics
| Barcode | 733117610275 |
|---|---|
| Country of origin | MX |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 25 . |
| Stock code | DS 4652 SK-25 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Heat-Shrink Sealable Crimp Splice |
| Search Description | LIMSKARVHYLSA, EFO2024V |
| Alternative SKU | DS4652SK-25 |
Compliance
| Conflict Minerals | The company's general statement declares compliance with conflict mineral regulations. |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| RoHS | RoHS 3 (2015/863) |
