DS 2505 HO

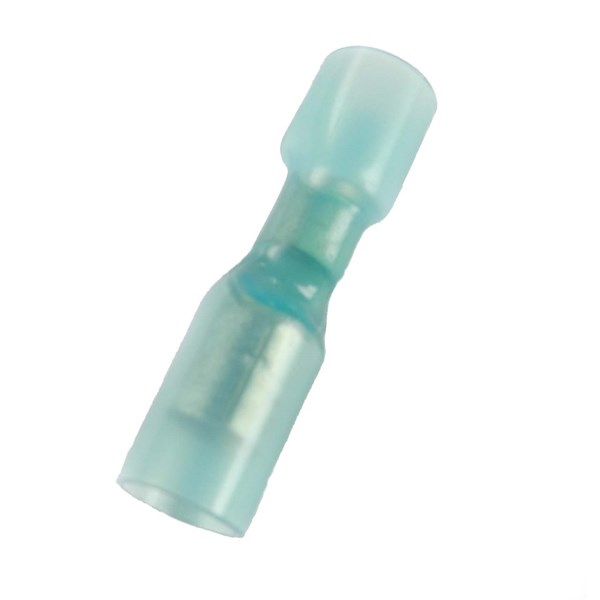

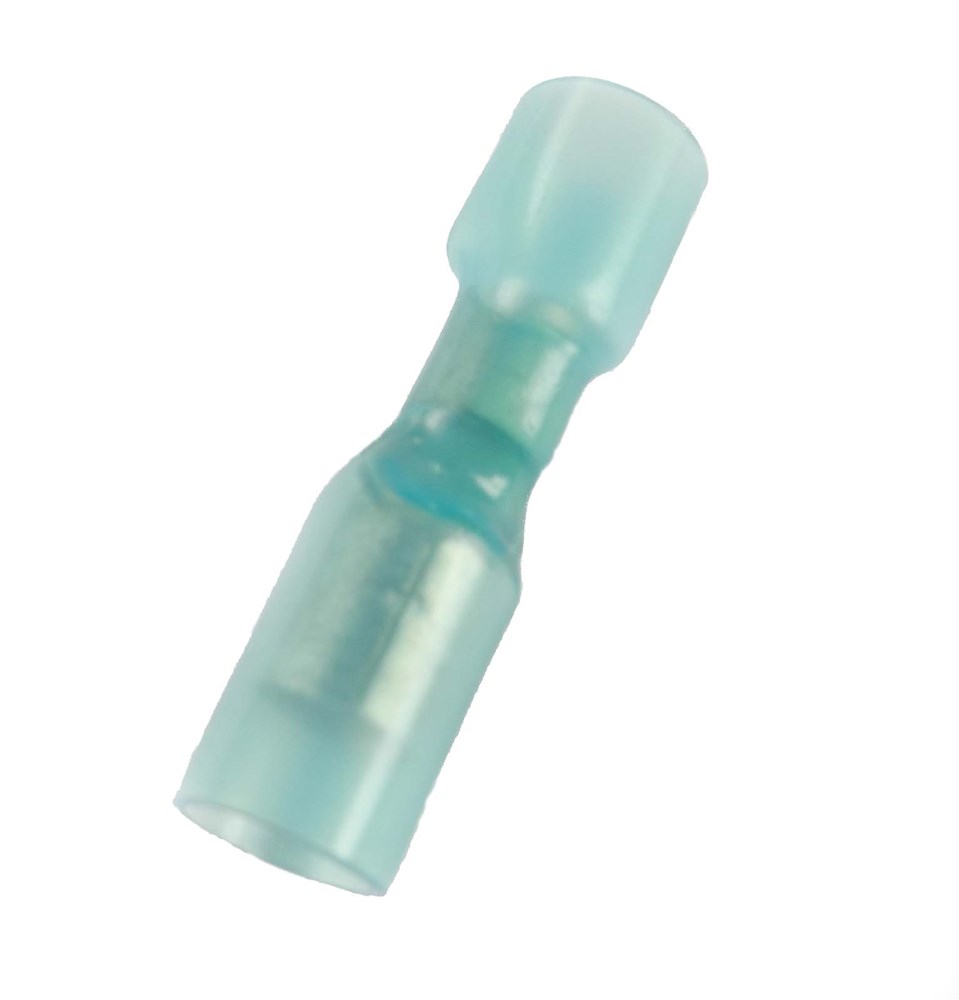

SHRINK INSULATED BULLET FEMALE BLUE, 5mm
DS 2505 HO
- Availability:
-
Yes
- Total: 1
Related items
Heat-shrink insulated Bullet female DS-series
Duraseal krymphylsor DS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
- Total: 1
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 15 A |
| Insulation | Fully isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyethylene (PE) |
| Operating temperature | -55-125 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Loose piece |
Dimensions
| ID | 4.5 mm |
|---|---|
| E | 14 mm |
| L | 29.7 mm |
| W | 5.1 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
| Plug dimensions | Round 5 mm |
Logistics
| Barcode | 733117611746 |
|---|---|
| Country of origin | US |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | DS 2505 HO |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | TE Connectivity |
| Product Group | Heat-shrink insulated Bullet female |
| Search Description | 016529-000 |
| Alternative SKU | DS2505HO |
Compliance
| Iron and Steel Sanction | Complied |
|---|---|
| Link to manufacturer COC | https://www.te.com/commerce/alt/SinglePartSearch.do?PN=016529-000 |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
