360 view
TS 4605 HA

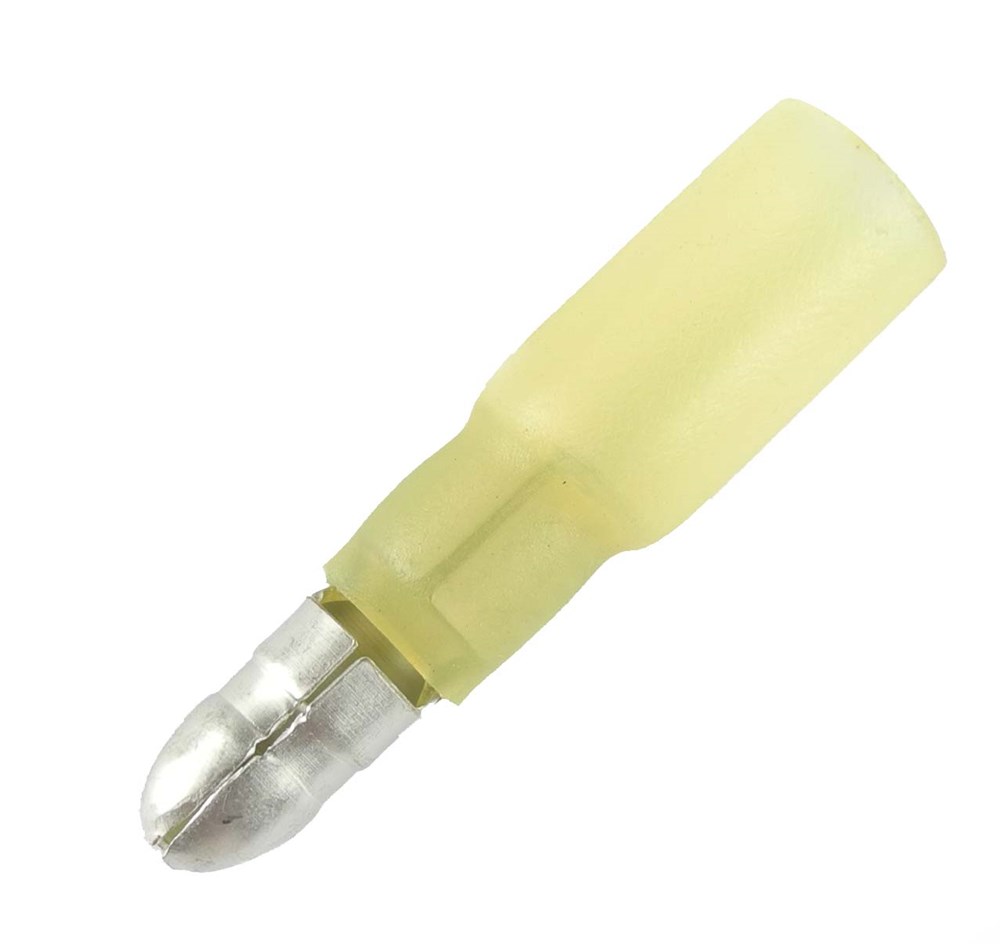

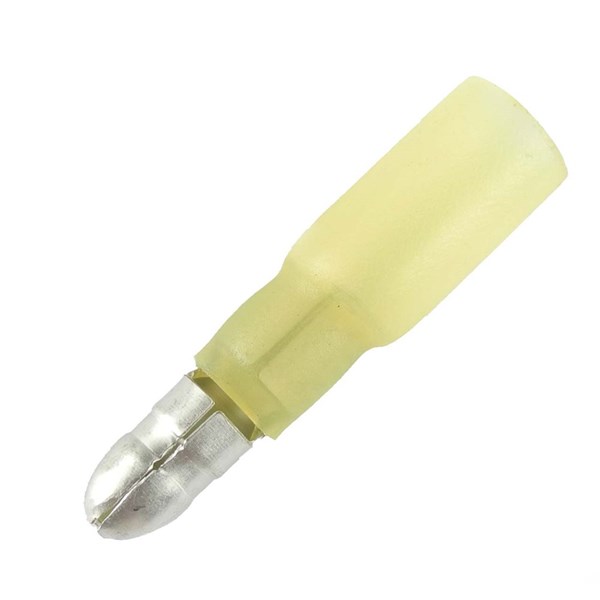

SHRINK INSULATED BULLET MALE YELLOW, 5mm
TS 4605 HA
- Availability:
-
Yes
- Total: 1
Related items

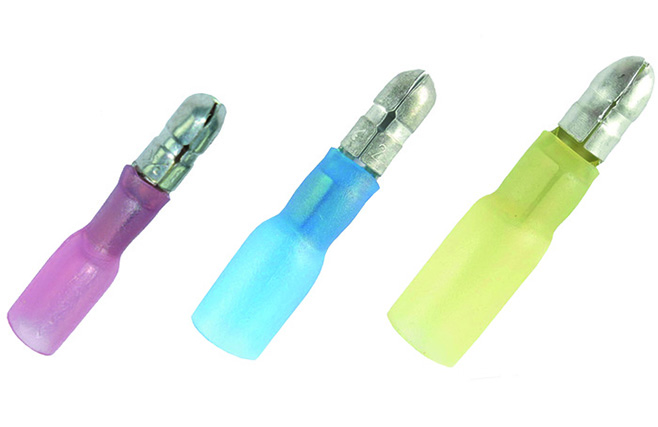

Heat-shrink insulated Bullet male TS-series
Krymphylsor TS-serien "Lågpris"
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 24 A |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyethylene (PE) |
| Operating temperature | -55-125 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Loose piece |

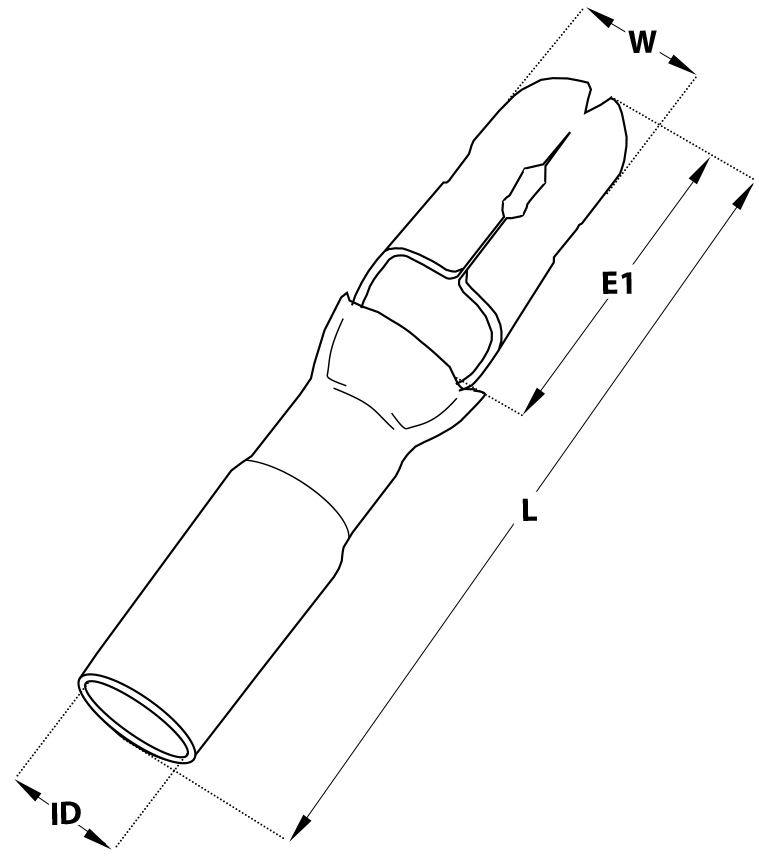

Dimensions
| ID | 6.8 mm |
|---|---|
| L | 30.5 mm |
| W | 5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 4-6 mm² |
| Plug dimensions | Round 5 mm |
Logistics
| Barcode | 733117611030 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | TS 4605 HA |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Heat-shrink insulated Bullet male |
| Alternative SKU | TS4605HA |
Compliance
| CA Proposition 65 | Yes. CAS 7439-92-1 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| PFAS | No PFAS |
| REACH | No SVHC (242 Subs. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
