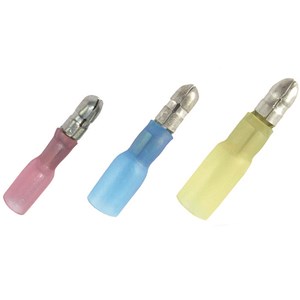

Heat-shrink insulated Bullet male TS-series
Krymphylsor TS-serien "Lågpris"
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Plug
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyethylene (PE)
- Operating temperature:
- -55-125 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Loose piece
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_TS-Series
Conflict Minerals Reporting Template Version 6.31_Approved

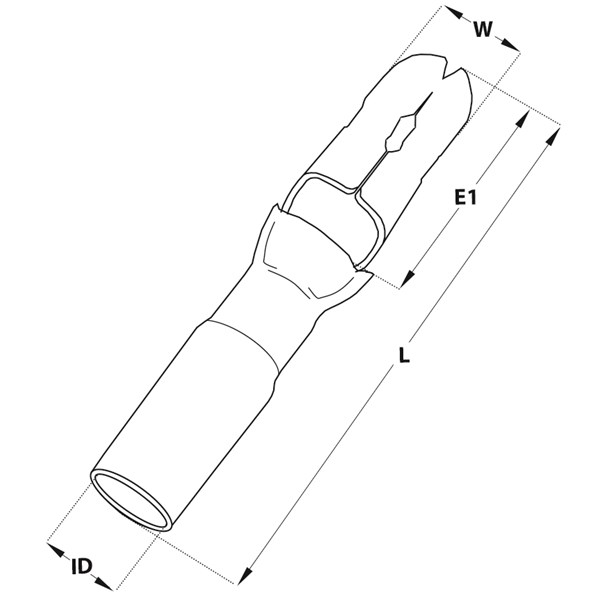

Dimensions
- Total: 4
| Product Description | ID | L | W | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED BULLET MALE RED, 4mm | 4.8 mm | 25.8 mm | 4 mm | 100 . | pcs | 0.5-1.5 mm² | Round 4 mm |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 4mm | 5.8 mm | 25.8 mm | 4 mm | 100 . | pcs | 1.5-2.5 mm² | Round 4 mm |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 5mm | 5.8 mm | 26.8 mm | 5 mm | 100 . | pcs | 1.5-2.5 mm² | Round 5 mm |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE YELLOW, 5mm | 6.8 mm | 30.5 mm | 5 mm | 100 . | pcs | 4-6 mm² | Round 5 mm |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| SHRINK INSULATED BULLET MALE RED, 4mm |
|
|
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 4mm |
|
|
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 5mm |
|
|
Yes
|
|
|
| SHRINK INSULATED BULLET MALE YELLOW, 5mm |
|
|
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Voltage max | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED BULLET MALE RED, 4mm | Yes | Yes | Plug | 10 A | Partially isolated | Red | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 4mm | Yes | Yes | Plug | 15 A | Partially isolated | Blue | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 5mm | Yes | Yes | Plug | 15 A | Partially isolated | Blue | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE YELLOW, 5mm | Yes | Yes | Plug | 24 A | Partially isolated | Yellow | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED BULLET MALE RED, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Heat-shrink insulated Bullet male | TS1504HA |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Heat-shrink insulated Bullet male | TS2504HA |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE BLUE, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Heat-shrink insulated Bullet male | TS2505HA |
Yes
|
|
|
| SHRINK INSULATED BULLET MALE YELLOW, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Heat-shrink insulated Bullet male | TS4605HA |
Yes
|
|
|
- Total: 4
