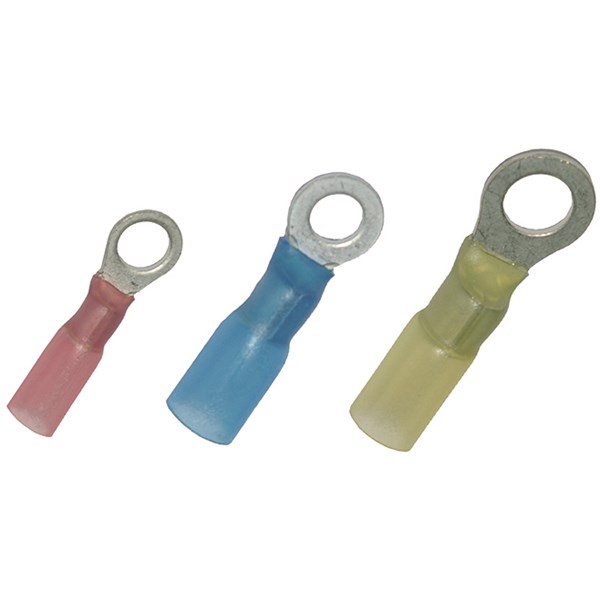

Ringkabelskor TS-Serien

Krymphylsor TS-serien "Lågpris"

Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C

Show item list

Technical properties

Suitable for Class 2 conductor:: Yes
Suitable for Class 5 conductor:: Yes
Reel/roll packaging:: No
Max. current (Imax):: 19 A, 27 A, 48 A
Flange shape:: Ring shape
According to DIN:: No
Insulation:: Polyamide (PA)
Colour insulation:: Red, Blue, Yellow
Sleeve form:: Short
Suitable for solid cores:: No
Suitable for stranded conductors:: Yes
Suitable for fine strand conductors:: Yes
Suitable for high temperatures (to 650 °C):: No
Suitable for insulated varnish:: No
Suitable for round conductors:: Yes
Suitable for flat conductors:: No
Surface protection:: Tinned
Operating temperature:: -55-125 °C
Material:: Copper
Voltage max:: 600V

Item List

Page size:

Total: 19

TS 1532 R

LIMRINGKABELSKO, RÖD, M3

Availability:: Yes
Delivery date:: 12/23/2024

TS 1537 R

LIMRINGKABELSKO, RÖD, M3.5

Availability:: Yes
Delivery date:: 12/23/2024

TS 1543 R

LIMRINGKABELSKO, RÖD, M4

Availability:: Yes
Delivery date:: 12/23/2024

TS 1553 R

LIMRINGKABELSKO, RÖD, M5

Availability:: Yes
Delivery date:: 12/23/2024

TS 1565 R

LIMRINGKABELSKO, RÖD, M6

Availability:: Yes
Delivery date:: 12/23/2024

TS 1585 R

LIMRINGKABELSKO, RÖD, M8

Availability:: Yes
Delivery date:: 12/23/2024

TS 1510 R

LIMRINGKABELSKO, RÖD, M10

Availability:: Yes
Delivery date:: 12/23/2024

TS 2532 R

LIMRINGKABELSKO, BLÅ, M3

Availability:: Yes
Delivery date:: 12/23/2024

TS 2543 R

LIMRINGKABELSKO, BLÅ, M4

Availability:: Yes
Delivery date:: 12/23/2024

TS 2553 R

LIMRINGKABELSKO, BLÅ, M5

Availability:: Yes
Delivery date:: 12/23/2024

TS 2565 R

LIMRINGKABELSKO, BLÅ, M6

Availability:: Yes
Delivery date:: 12/23/2024

TS 2585 R

LIMRINGKABELSKO, BLÅ, M8

Availability:: Yes
Delivery date:: 12/23/2024

TS 2510 R

LIMRINGKABELSKO, BLÅ, M10

Availability:: Yes
Delivery date:: 12/23/2024

TS 4643 R

LIMRINGKABELSKO, GUL, M4

Availability:: Yes
Delivery date:: 12/23/2024

TS 4653 R

LIMRINGKABELSKO, GUL, M5

Availability:: Yes
Delivery date:: 12/23/2024

TS 4665 R

LIMRINGKABELSKO, GUL, M6

Availability:: Yes
Delivery date:: 12/23/2024

TS 4685 R

LIMRINGKABELSKO, GUL, M8

Availability:: Yes
Delivery date:: 12/23/2024

TS 4610 R

LIMRINGKABELSKO, GUL, M10

Availability:: Yes
Delivery date:: 12/23/2024

TS 4613 R

LIMRINGKABELSKO, GUL, M12

Availability:: Yes
Delivery date:: 12/23/2024

Total: 19

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Dimensions

Page size:

Total: 19

Product Description	Stock code	HS	ID	L	W	MOQ	Unit	Bolt dimension (metric)	Nominal cross section	Availability
SHRINK INSULATED RING TERMINAL RED, M3	TS 1532 R	3.2 mm	4 mm	21.5 mm	5.5 mm	100 .	pcs	3 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL RED, M3.5	TS 1537 R	3.7 mm	4 mm	24 mm	6.6 mm	100 .	pcs	3.5 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL RED, M4	TS 1543 R	4.3 mm	4 mm	25.5 mm	8 mm	100 .	pcs	4 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL RED, M5	TS 1553 R	5.3 mm	4 mm	26.7 mm	10 mm	100 .	pcs	5 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL RED, M6	TS 1565 R	6.4 mm	4 mm	30.8 mm	11.6 mm	100 .	pcs	6 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL RED, M8	TS 1585 R	8.4 mm	4 mm	32.4 mm	12.6 mm	100 .	pcs	8 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL RED, M10	TS 1510 R	10 mm	4 mm	35.4 mm	14 mm	100 .	pcs	10 .	0.5-1.5 mm²	Yes
SHRINK INSULATED RING TERMINAL BLUE, M3	TS 2532 R	3.2 mm	4.5 mm	23.4 mm	5.5 mm	100 .	pcs	3 .	1.5-2.5 mm²	Yes
SHRINK INSULATED RING TERMINAL BLUE, M4	TS 2543 R	4.3 mm	4.5 mm	25.5 mm	8 mm	100 .	pcs	4 .	1.5-2.5 mm²	Yes
SHRINK INSULATED RING TERMINAL BLUE, M5	TS 2553 R	5.3 mm	4.5 mm	27.3 mm	9.5 mm	100 .	pcs	5 .	1.5-2.5 mm²	Yes
SHRINK INSULATED RING TERMINAL BLUE, M6	TS 2565 R	6.4 mm	4.5 mm	31 mm	11.6 mm	100 .	pcs	6 .	1.5-2.5 mm²	Yes
SHRINK INSULATED RING TERMINAL BLUE, M8	TS 2585 R	8.4 mm	4.5 mm	32.7 mm	12.6 mm	100 .	pcs	8 .	1.5-2.5 mm²	Yes
SHRINK INSULATED RING TERMINAL BLUE, M10	TS 2510 R	10 mm	4.5 mm	38.6 mm	14 mm	100 .	pcs	10 .	1.5-2.5 mm²	Yes
SHRINK INSULATED RING TERMINAL YELLOW, M4	TS 4643 R	4.3 mm	6.4 mm	32.4 mm	9.5 mm	100 .	pcs	4 .	4-6 mm²	Yes
SHRINK INSULATED RING TERMINAL YELLOW, M5	TS 4653 R	5.3 mm	6.4 mm	31.4 mm	9.5 mm	100 .	pcs	5 .	4-6 mm²	Yes
SHRINK INSULATED RING TERMINAL YELLOW, M6	TS 4665 R	6.4 mm	6.4 mm	35.1 mm	12 mm	100 .	pcs	6 .	4-6 mm²	Yes
SHRINK INSULATED RING TERMINAL YELLOW, M8	TS 4685 R	8.4 mm	6.4 mm	39.7 mm	15 mm	100 .	pcs	8 .	4-6 mm²	Yes
SHRINK INSULATED RING TERMINAL YELLOW, M10	TS 4610 R	10 mm	6.4 mm	40.5 mm	15 mm	100 .	pcs	10 .	4-6 mm²	Yes
SHRINK INSULATED RING TERMINAL YELLOW, M12	TS 4613 R	13 mm	6.4 mm	44.6 mm	19 mm	100 .	pcs	12 .	4-6 mm²	Yes
