TS 1543 G

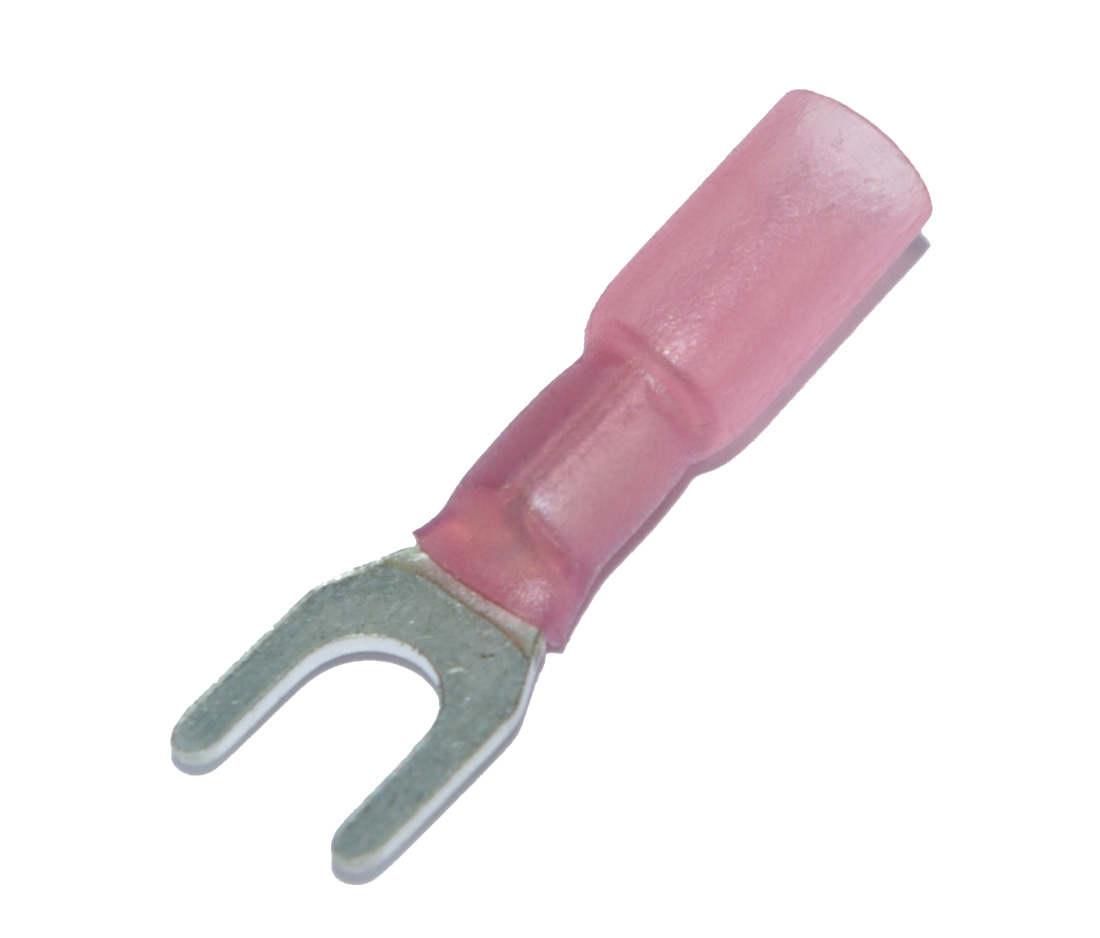

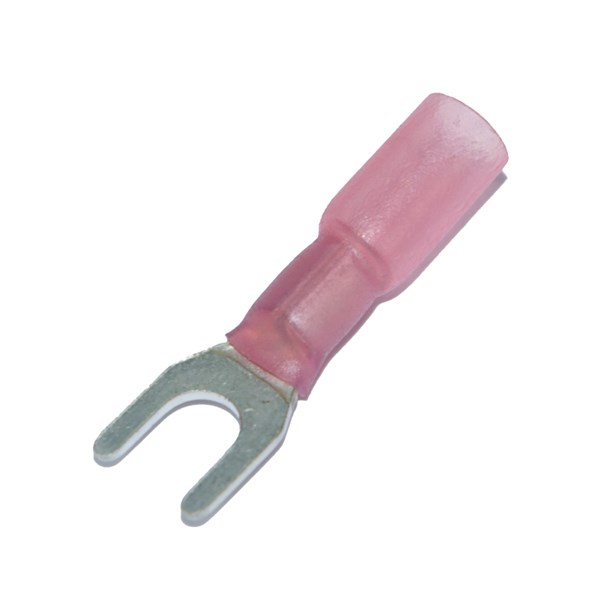

SHRINK INSULATED SPADE TERMINAL RED, M4

Sku

TS 1543 G

Availability:
Yes
  • Total: 1
  • Total: 1
  • Total: 1

Related items

Heat-shrink insulated Spade terminals TS-series

  • Total: 1
Suitable for Class 2 conductor Yes
Suitable for Class 5 conductor Yes
Reel/roll packaging No
Max. current (Imax) 19 A
Flange shape Fork shape
According to DIN No
Insulation Polyamide (PA)
Colour insulation Red
Sleeve form Short
Suitable for solid cores No
Suitable for stranded conductors Yes
Suitable for fine strand conductors Yes
Suitable for high temperatures (to 650 °C) No
Suitable for insulated varnish No
Suitable for round conductors Yes
Suitable for flat conductors No
Surface protection Tinned
Operating temperature -55-125 °C
Material Copper
Voltage max 600V
HS 4.3 mm
ID 4 mm
L 26 mm
W 6.8 mm
MOQ 100 .
Unit pcs
Bolt dimension (metric) 4 .
Nominal cross section 0.5-1.5 mm²
Barcode 733117610997
Country of origin TW
Item status Stock item, normally in stock with reservation for in between sales.
MOQ 100 .
Stock code TS 1543 G
Taric code 85369010
Unit pcs
Approved according to CE Yes
With approval according to UL Yes
ETIM-Class EC001052 - Solderless copper terminals for copper conductors
ETIM-Release 9.0
Trademark NEMIQ
Product Group Heat-shrink insulated Spade termina
Alternative SKU TS1543G
Conflict Minerals The company's general statement declares compliance with conflict mineral regulations.
REACH No SVHC (233 Subs. 17 Jan 2023)
RoHS RoHS 3 (2015/863)
SCIP Not Applicable
