TS 2507 FL-PP10

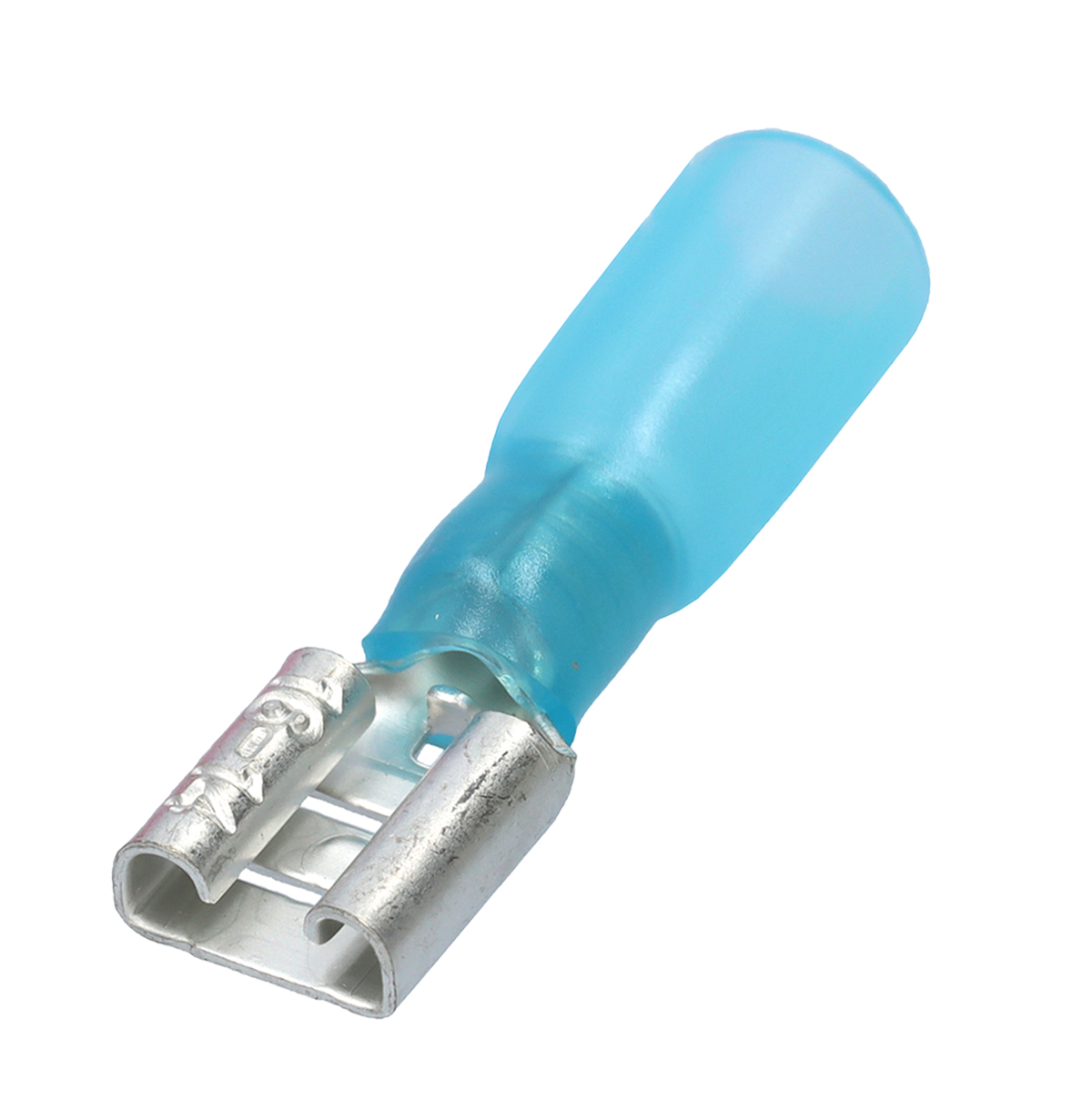

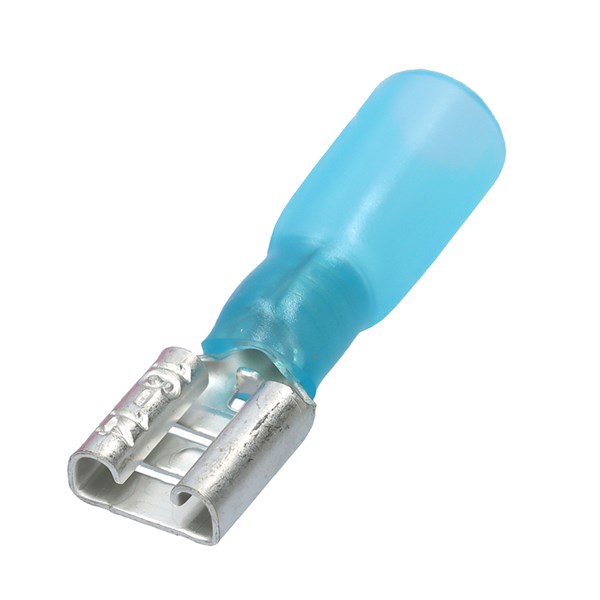

SHRINK INSULATED RECEPTACLE BLUE, 6.3x0.8mm
TS 2507 FL-PP10
- Availability:
-
No
- Total: 1
Related items
Limflatstiftshylsa i Konsumentförpackning
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Max. current (Imax) | 15 A |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyethylene (PE) |
| Operating temperature | -55-125 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Loose piece |

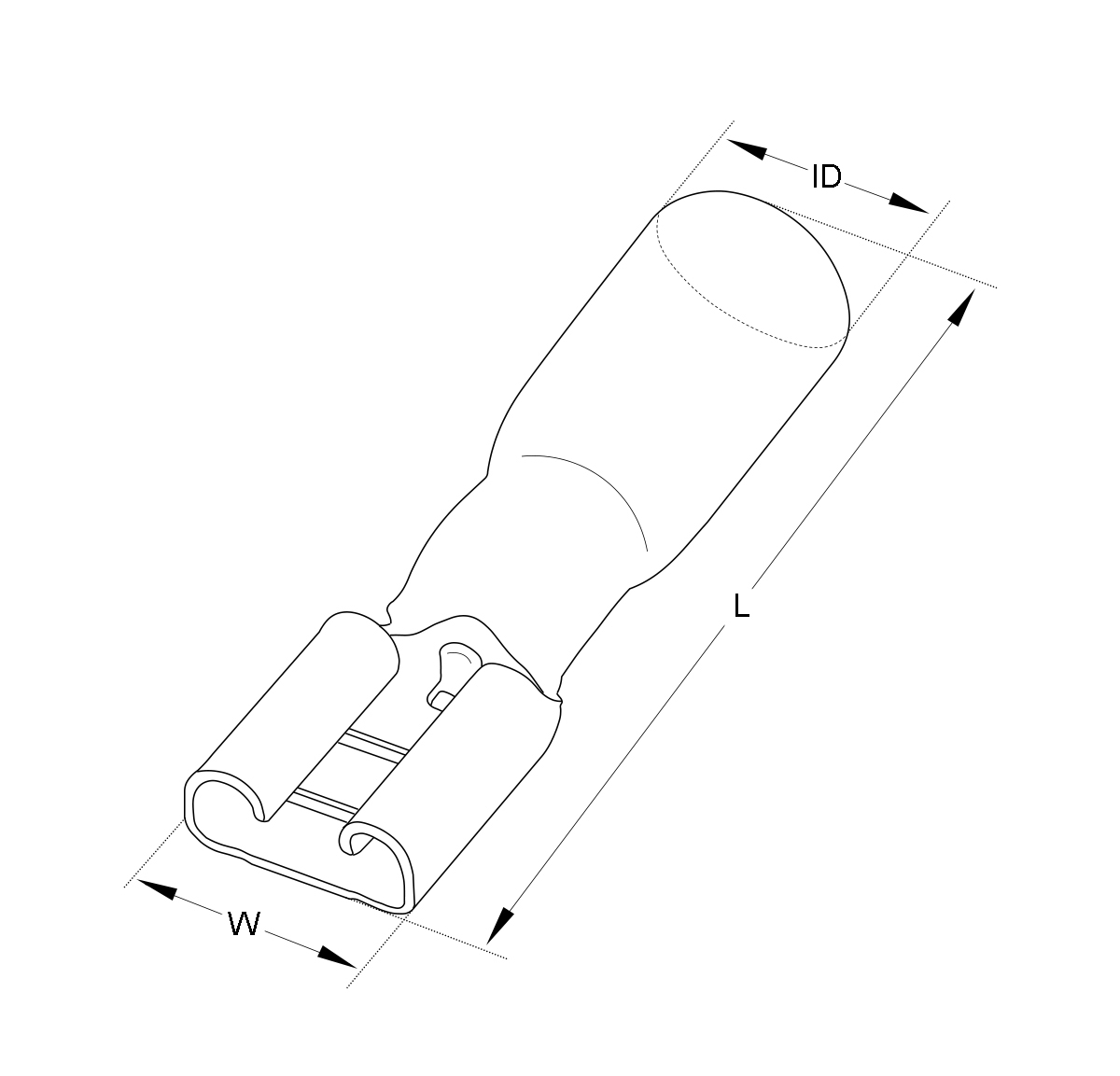

Dimensions
| ID | 5.8 mm |
|---|---|
| L | 26 mm |
| W | 6.6 mm |
| MOQ | 10 . |
| Unit | pck |
| Nominal cross section | 1.5-2.5 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117638067 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Loose piece |
| Stock code | TS 2507 FL-PP10 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Heat-shrink insulated Receptacle |
| Alternative SKU | TS2507FL-PP10 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
