TS 2504 H-8

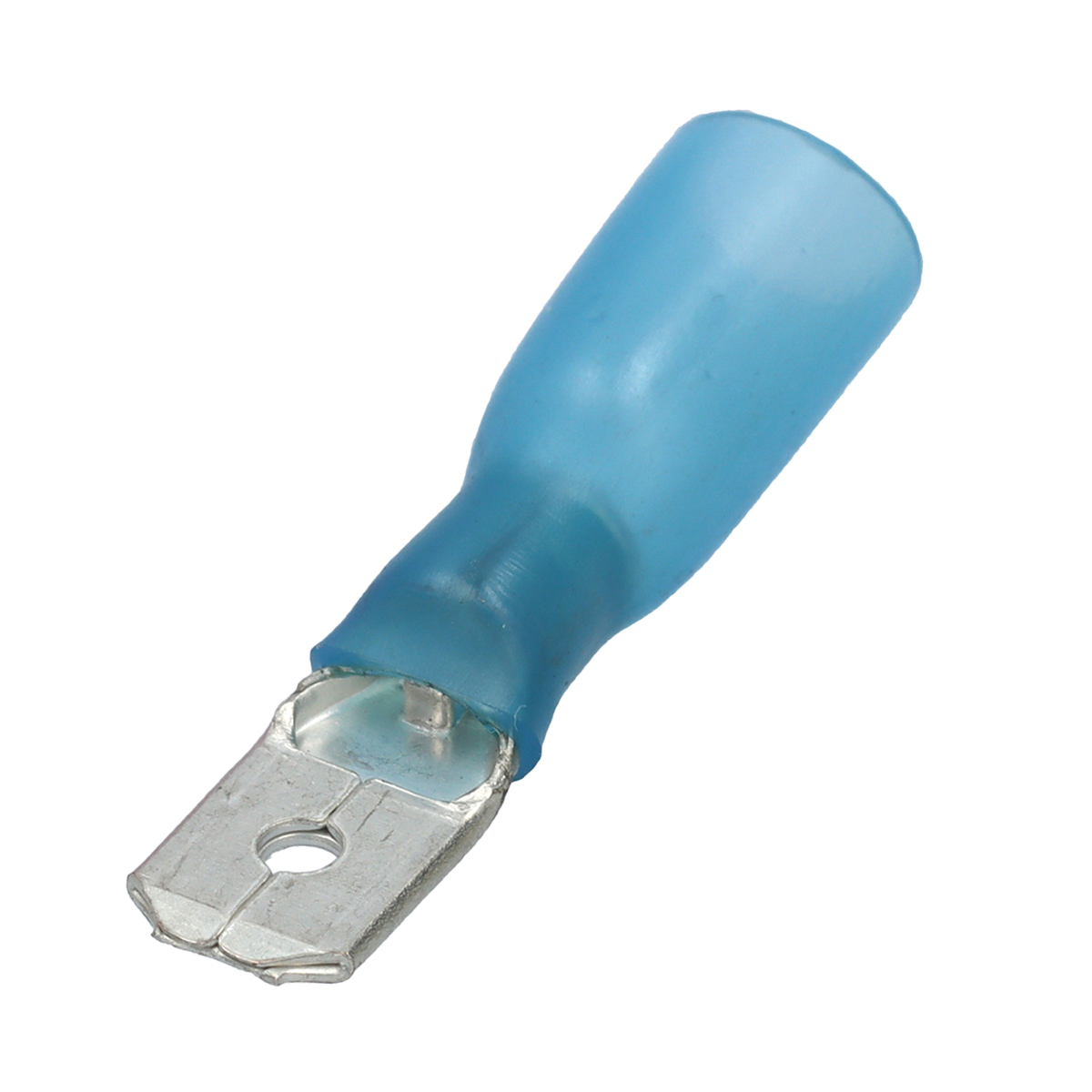

SHRINK INSULATED TAB BLUE, 4.8x0.8mm
TS 2504 H-8
- Availability:
-
Yes
- Total: 1
Related items
Heat-shrink insulated Tab TS-series
Krymphylsor TS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180° C
Temperaturområde: -55° C till +125° C
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 15 A |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyethylene (PE) |
| Operating temperature | -55-125 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Loose piece |
Dimensions
| ID | 5.6 mm |
|---|---|
| L | 26.7 mm |
| W | 4.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.5-2.5 mm² |
| Plug dimensions | Flat 4.8x0.8 mm |
Logistics
| Barcode | 733117611010 |
|---|---|
| Country of origin | TW |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | TS 2504 H-8 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Heat-shrink insulated Tab |
| Alternative SKU | TS2504H-8 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
