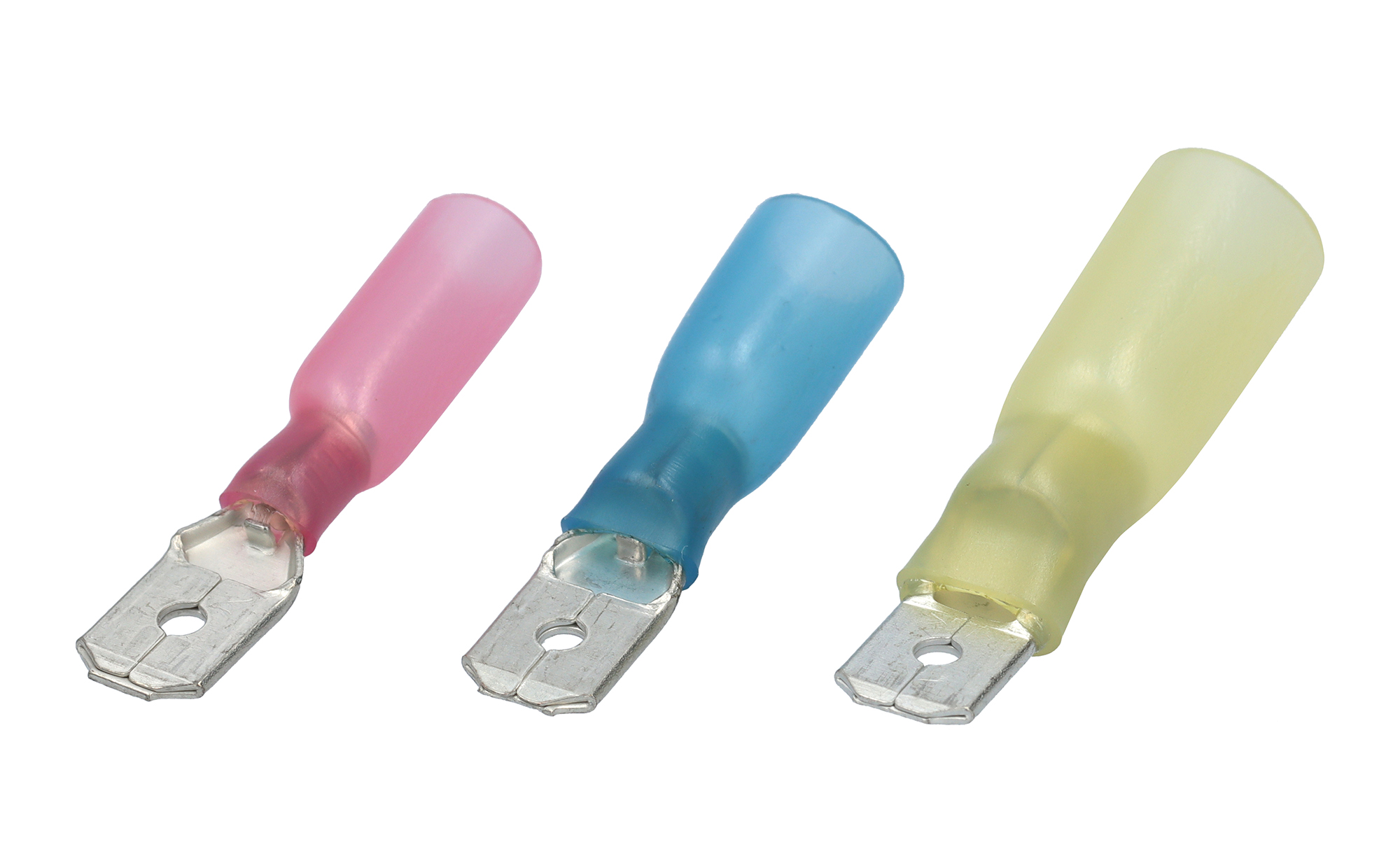

Heat-shrink insulated Tab DS-series
Duraseal krymphylsor DS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Plug
- Max. current (Imax):
- 10 A, 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyethylene (PE)
- Operating temperature:
- -55-125 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_DS-Series

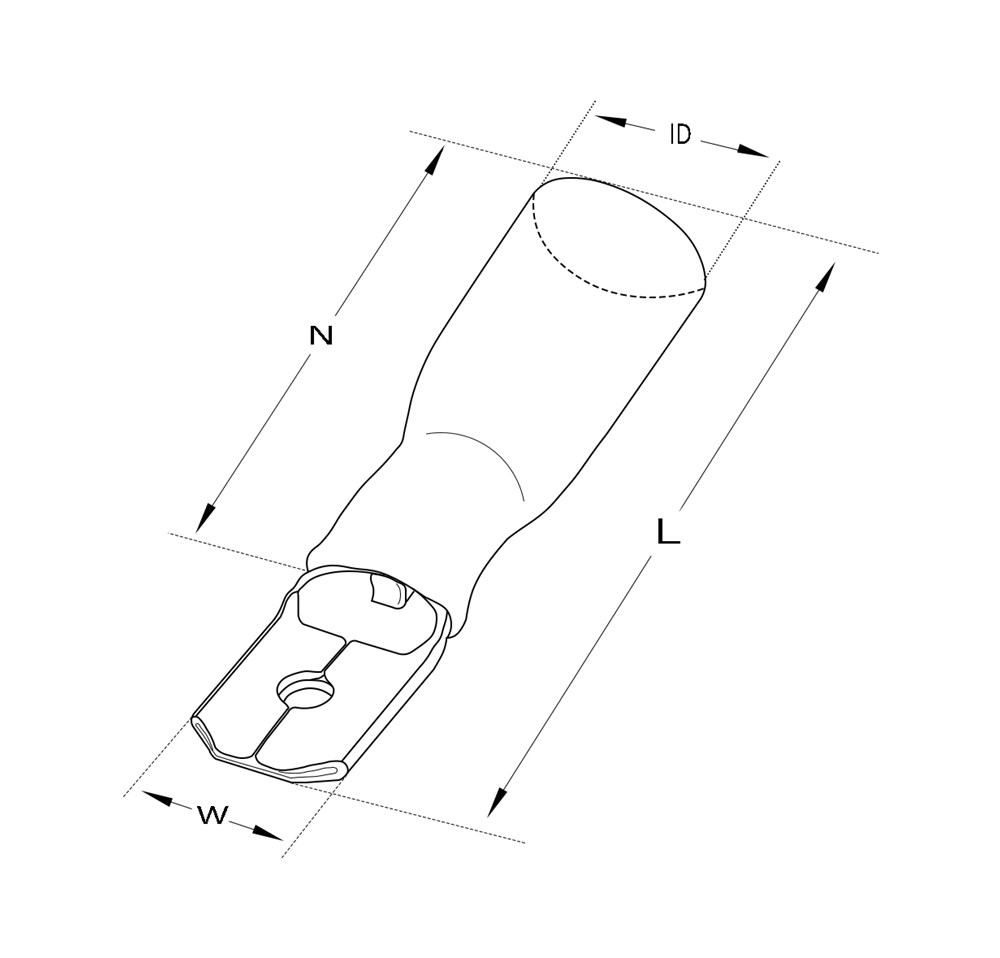

Dimensions
- Total: 2
| Product Description | ID | L | W | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED TAB RED, 6.3x0.8mm | 5.2 mm | 27.5 mm | 6.3 mm | 100 . | pcs | 0.5-1.65 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| SHRINK INSULATED TAB BLUE, 6.3x0.8mm | 5.6 mm | 29 mm | 6.3 mm | 100 . | pcs | 1.04-2.63 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| SHRINK INSULATED TAB RED, 6.3x0.8mm |
|
|
Yes
|
|
|
| SHRINK INSULATED TAB BLUE, 6.3x0.8mm |
|
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Voltage max | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED TAB RED, 6.3x0.8mm | Yes | Yes | Plug | 10 A | Partially isolated | Red | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
| SHRINK INSULATED TAB BLUE, 6.3x0.8mm | Yes | Yes | Plug | 15 A | Partially isolated | Blue | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED TAB RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Heat-shrink insulated Tab | 514711-000 ,TE | DS1507H |
Yes
|
|
|
| SHRINK INSULATED TAB BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Heat-shrink insulated Tab | 467777-000, B-106-4632 ,TE | DS2507H |
Yes
|
|
|
- Total: 2
