A 4630 SR PL-PP10

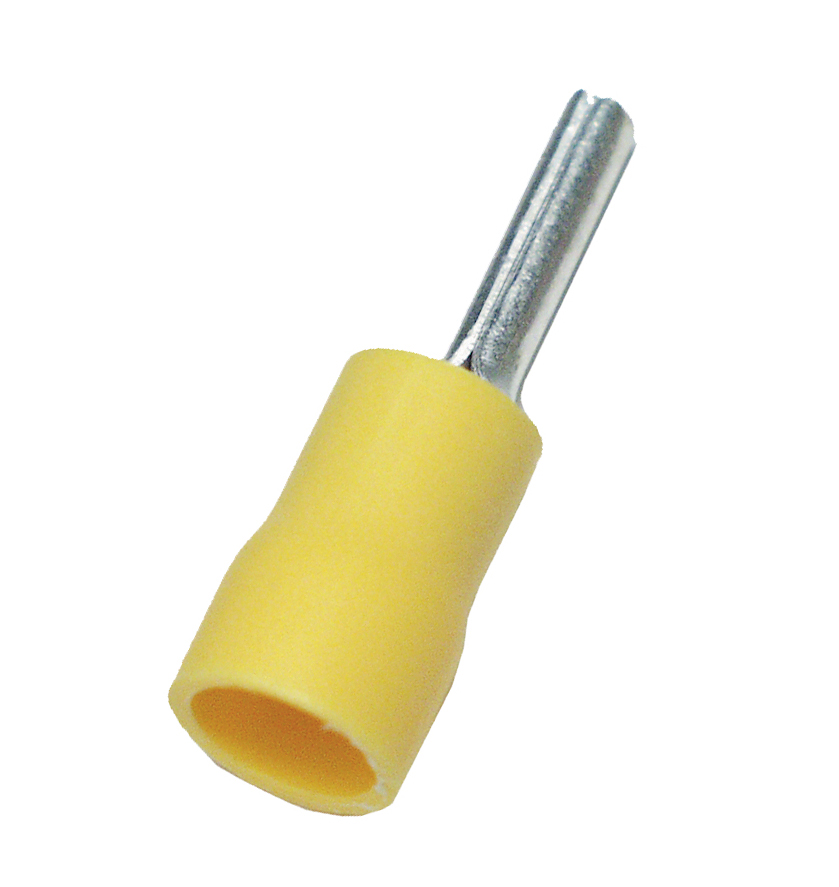

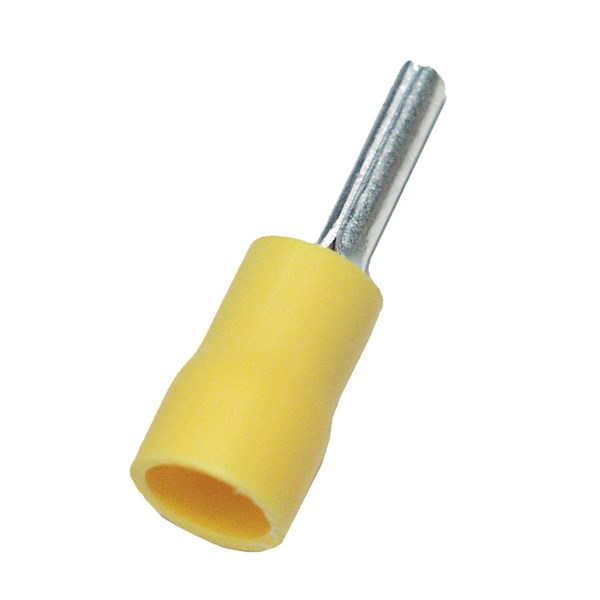

INSULATED PIN TERMINAL YELLOW, 14x2.7mm, 10-PACK
A 4630 SR PL-PP10
- Availability:
-
Yes
- Total: 1
Related items

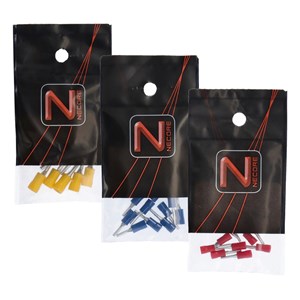

Stiftkabelskor i Konsumentförpackning (PVC)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | No |
| Max. current (Imax) | 48 A |
| Flange shape | Pin shape |
| According to DIN | No |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -40-75 °C |
| Material | Copper |
| Voltage max | 600V |
Dimensions
| MOQ | 10 . |
|---|---|
| Unit | pck |
| Nominal cross section | 2.63-6.64 mm² |
Logistics
| Barcode | 733117618609 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Stock code | A 4630 SR PL-PP10 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Pin Terminals - Pin-pac bags |
| Alternative SKU | A4630SRPL-PP10 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
