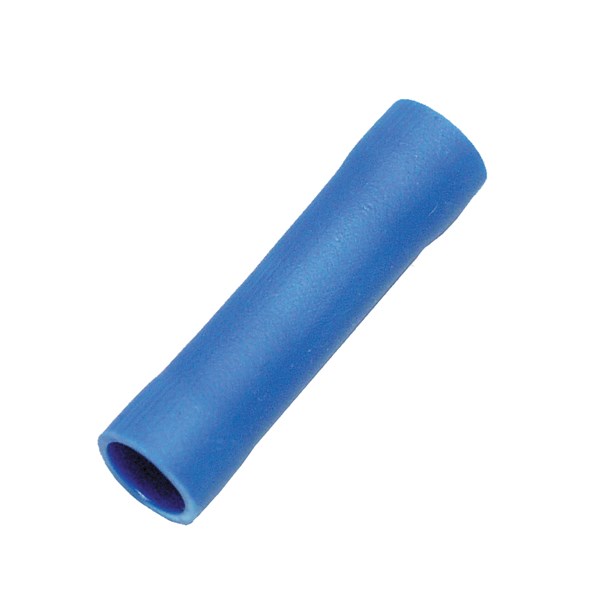

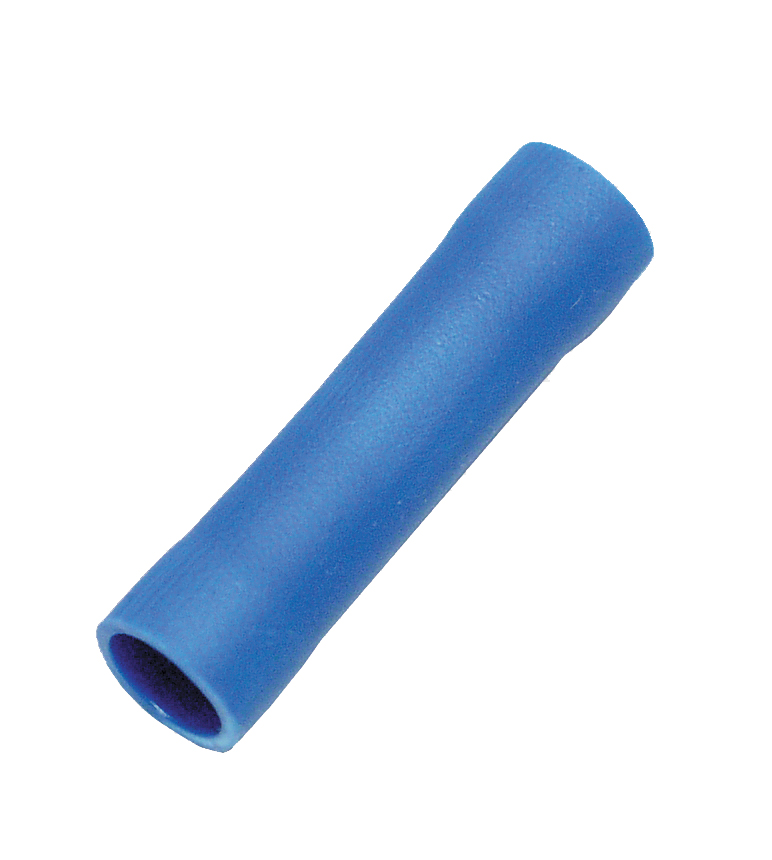

Butt splices A-series
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -25-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved

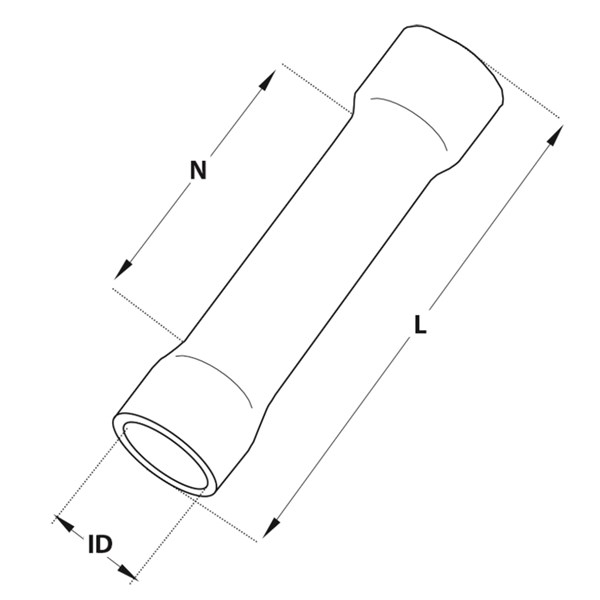

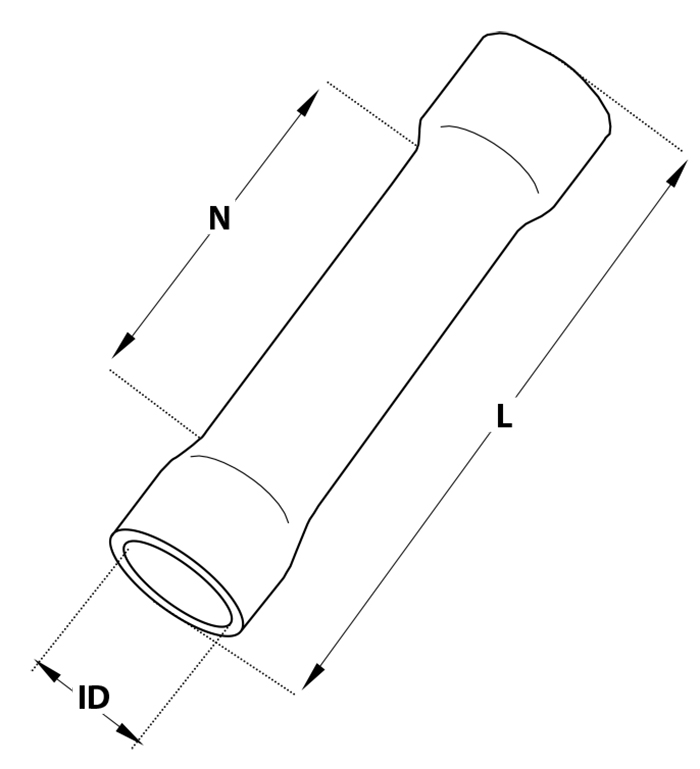

Dimensions
- Total: 3
| Product Description | ID | L | N | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 22.7mm | 4 mm | 22.7 mm | 15 mm | 100 . | pcs | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 22.7mm | 4.5 mm | 22.7 mm | 15 mm | 100 . | pcs | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 26.7 mm | 6.8 mm | 26.7 mm | 15 mm | 100 . | pcs | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 22.7mm | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 22.7mm | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 26.7 mm | E42024 |
|
|
|
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Number of branches | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 22.7mm | Yes | Yes | UL model | 0 N/A | Red | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Copper | 600V | No | Loose piece |
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 22.7mm | Yes | Yes | UL model | 0 N/A | Blue | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Copper | 600V | No | Loose piece |
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 26.7 mm | Yes | Yes | UL model | 0 N/A | Yellow | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Copper | 600V | No | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 22.7mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Butt Splices - PVC | JST, 25591000 , FVC-1.25 (LF) | A1525SK |
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 22.7mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Butt Splices - PVC | JST, 25551100 , FVC-2 (LF) | A2527SK |
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 26.7 mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Butt Splices - PVC | JST, 25532200 , FVC-5.5 (LF) | A4652SK |
Yes
|
|
|
- Total: 3
