A 2527 SK

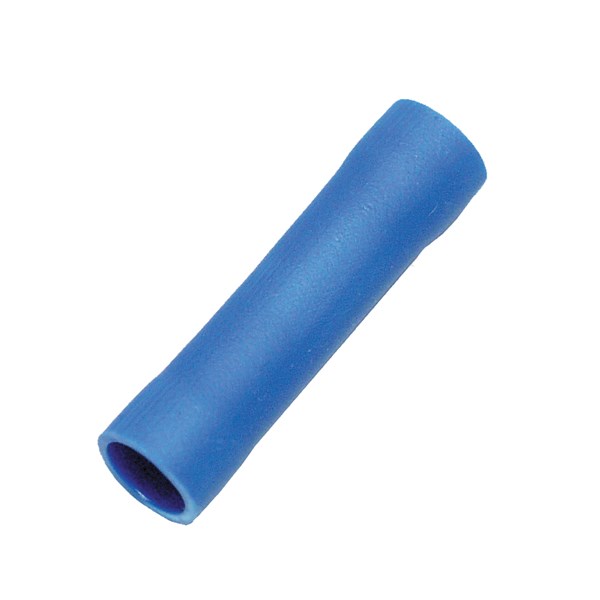

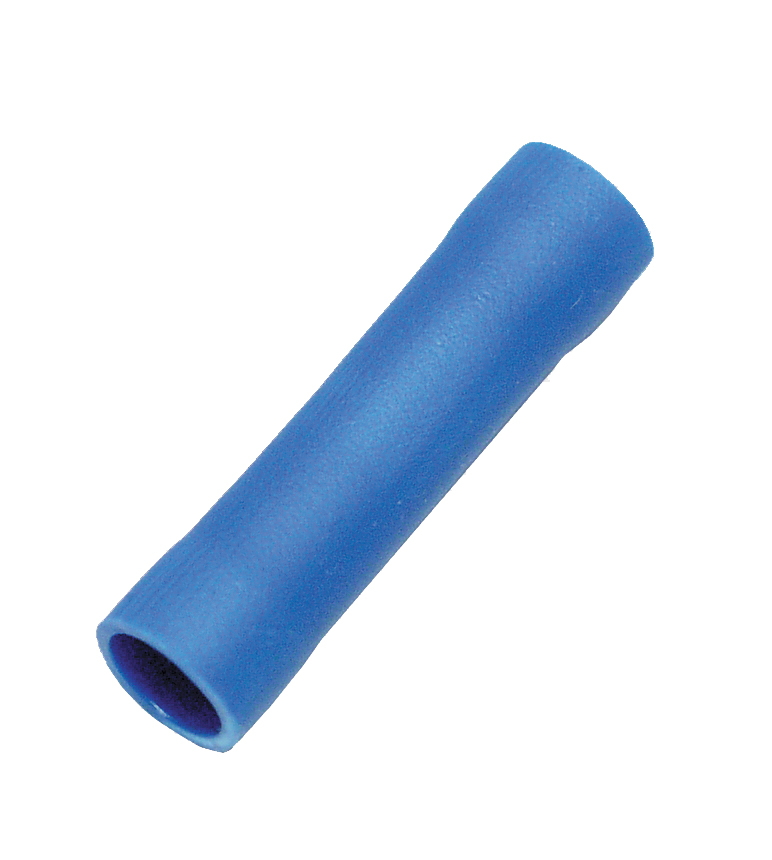

INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 22.7mm
A 2527 SK
- Availability:
-
Yes
E0842514
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | UL model |
| Number of branches | 0 N/A |
| Colour insulation | Blue |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 600 V |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V0 |
| Operating temperature | -25-75 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | No |
| Packaging | Loose piece |
Dimensions
| ID | 4.5 mm |
|---|---|
| L | 22.7 mm |
| N | 15 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
Logistics
| Barcode | 733117610083 |
|---|---|
| Country of origin | JP |
| E-no | E0842514 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | A 2527 SK |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E42024 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Butt Splices - PVC |
| Search Description | JST, 25551100 , FVC-2 (LF) |
| Alternative SKU | A2527SK |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
