A 2527 SK PL-PP10

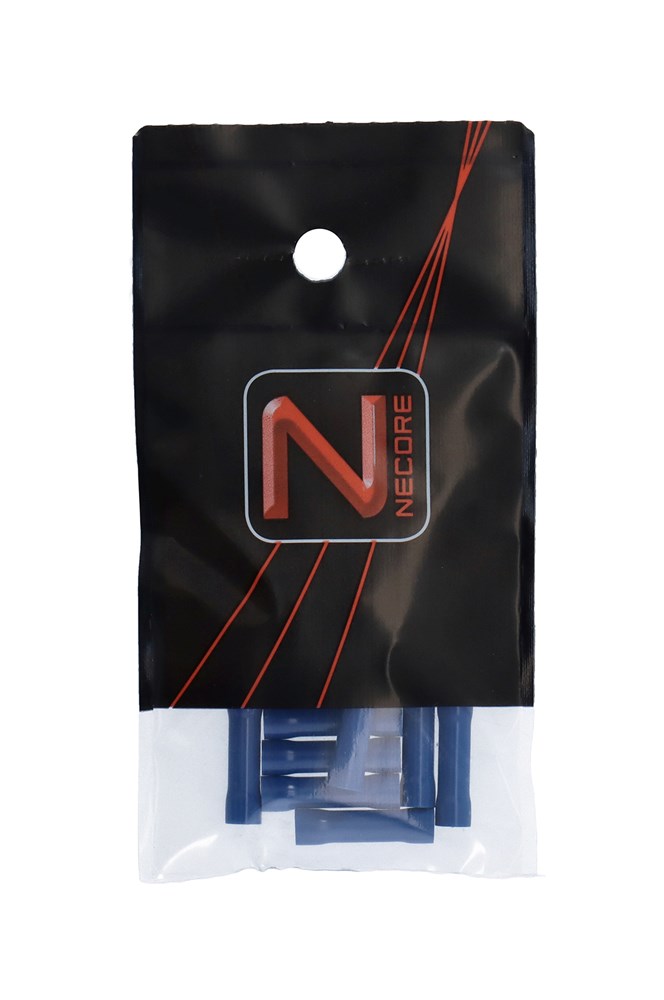

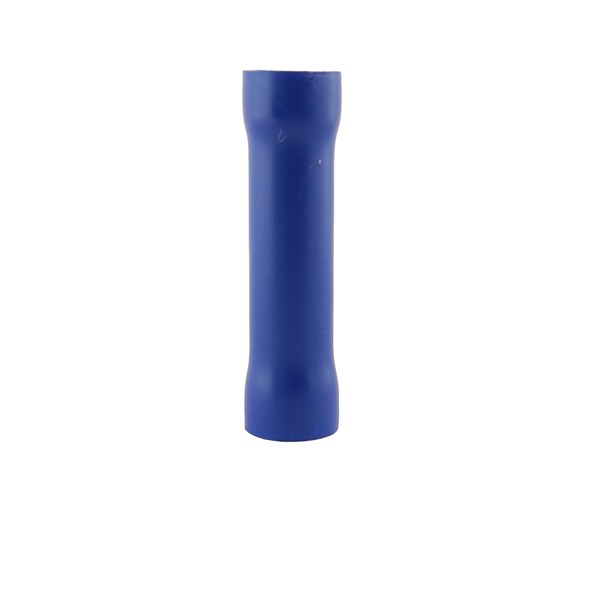

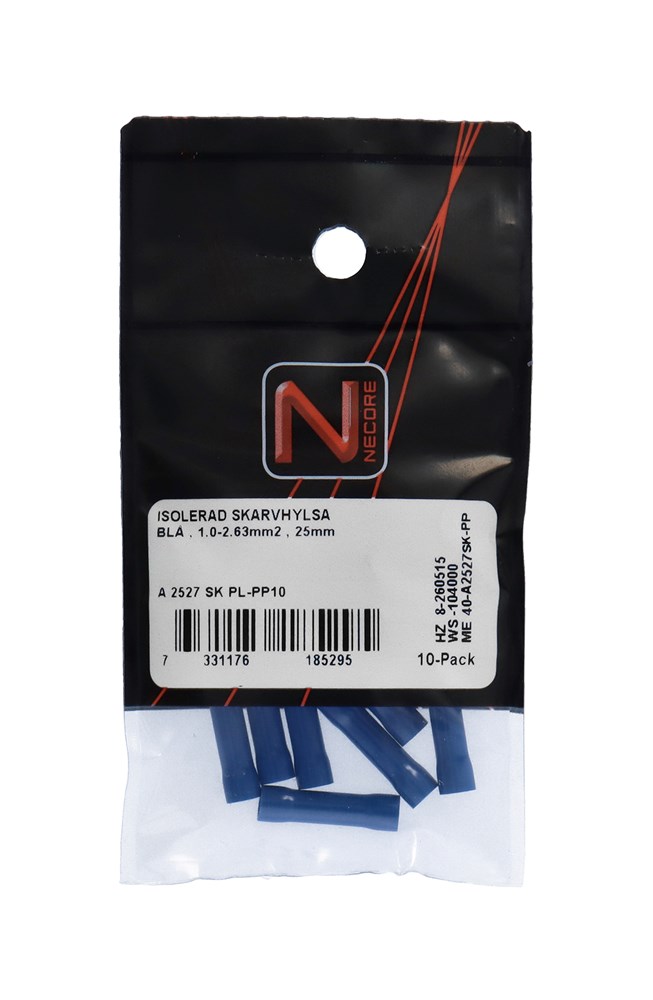

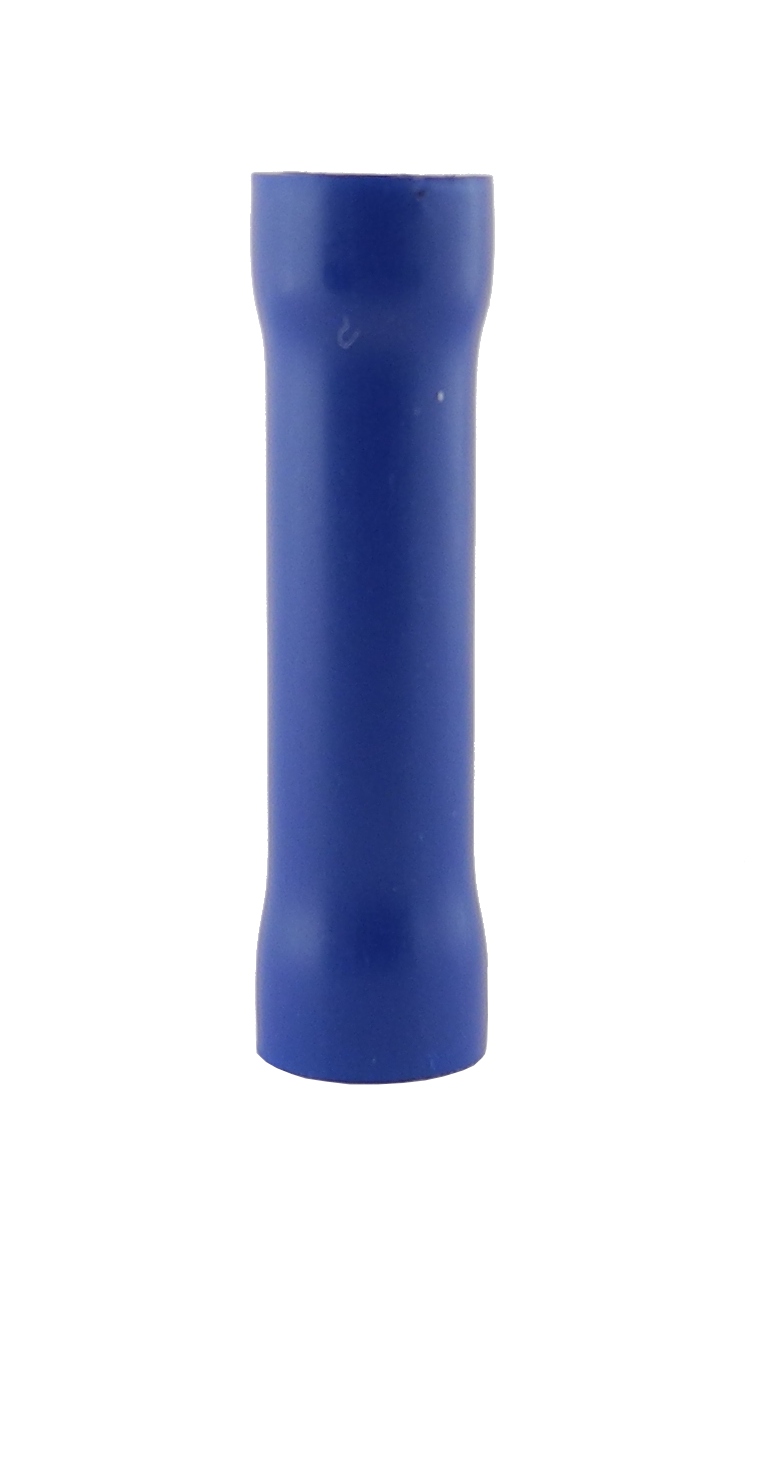

INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 25mm, 10-PACK
A 2527 SK PL-PP10
- Availability:
-
Yes
- Total: 1
Related items
Isolerade skarvhylsor i Konsumentförpackning (PVC)
Pin-Pac
Nelco har ett stort urval av kabelskor förpackade i påse med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
Nelco har både isolerade, oisolerade, plåt- och lim-kabelskor i sortimentet. I nedan tabell finner ni ett urval.
För att ta reda på hur varje individuell kabelsko ser ut så tag bort -PP ur artikelnumret och sök efter kabelskon i vår sökmotor.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | UL model |
| Max. current (Imax) | 27 A |
| Number of branches | 0 N/A |
| Colour insulation | Blue |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 600 V |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -40-75 °C |
| Material | Copper |
| Voltage max | 600V |
| Packaging | Bag |
Dimensions
| MOQ | 10 . |
|---|---|
| Unit | pck |
| Nominal cross section | 1.04-2.63 mm² |
Logistics
| Barcode | 733117618529 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Bag |
| Stock code | A 2527 SK PL-PP10 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Butt Splices - Pin-pac bags |
| Alternative SKU | A2527SKPL-PP10 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
