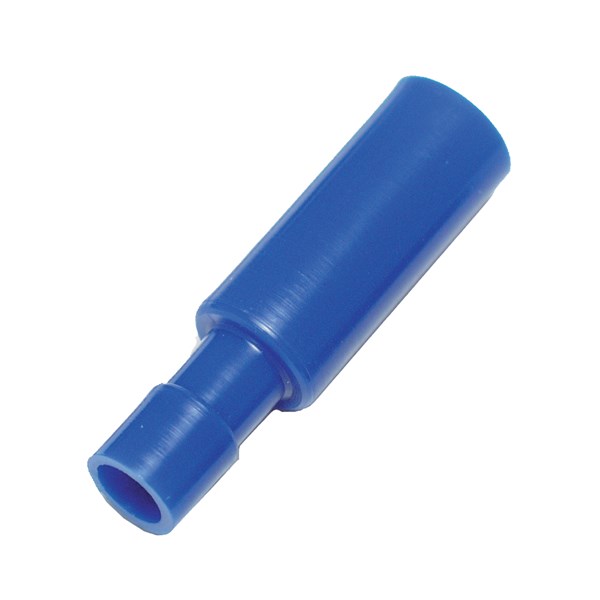

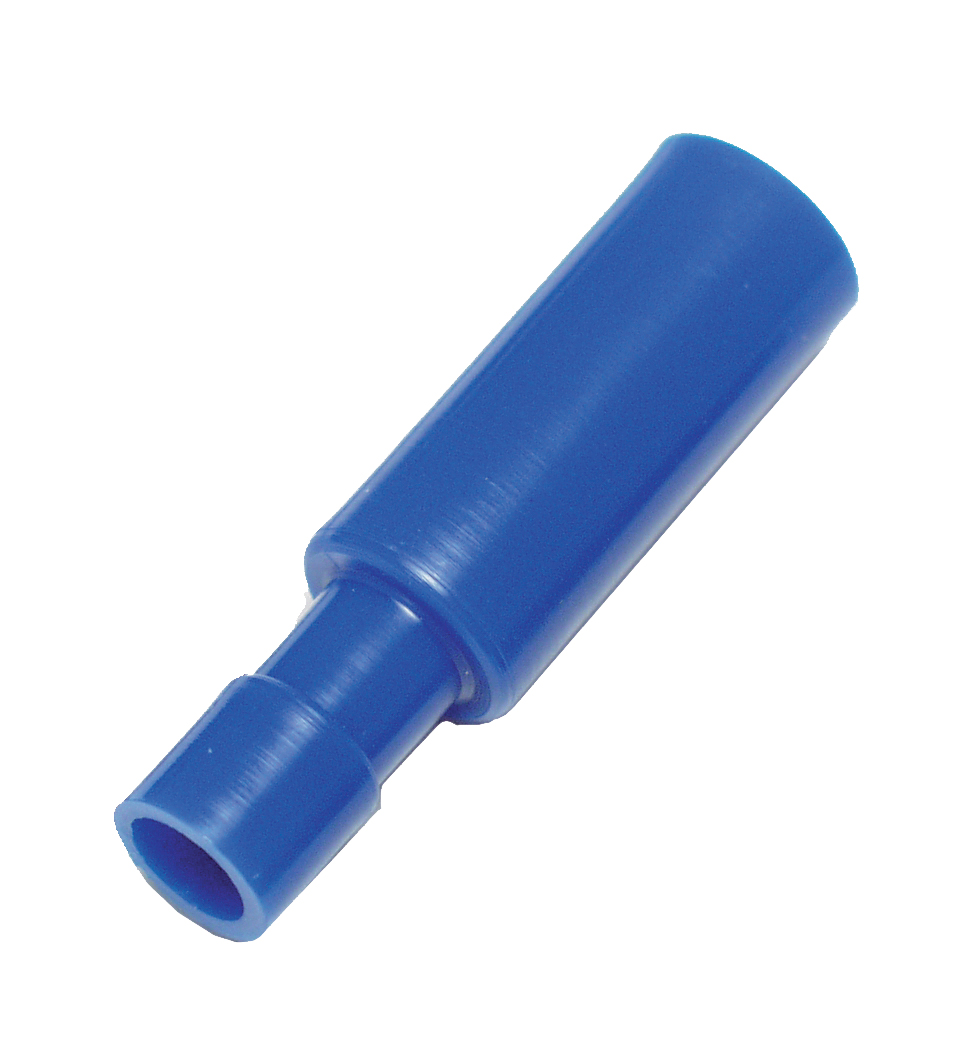

Bullet female terminals AA-series
Long copper sleeve
Technical properties
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
- Inflammability class of insulation material according to with UL94:
- V0, V2
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AA-Series
Conflict Minerals Reporting Template Version 6.31_Approved

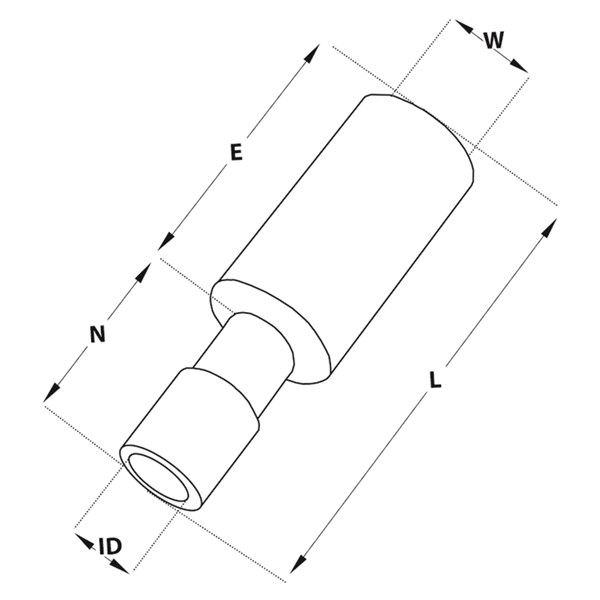

Dimensions
- Total: 1
| Product Description | ID | E | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | 3.2 mm | 20.3 mm | 31.5 mm | 11.2 mm | 6.5 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Round 4 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | E44245 |
|
|
|
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Voltage max | Halogen free | Packaging | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | Bushing | 10 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | No | Loose piece |
|
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - PVC | AA1504HO |
Yes
|
|
|
- Total: 1
