Ring terminals A PL-series

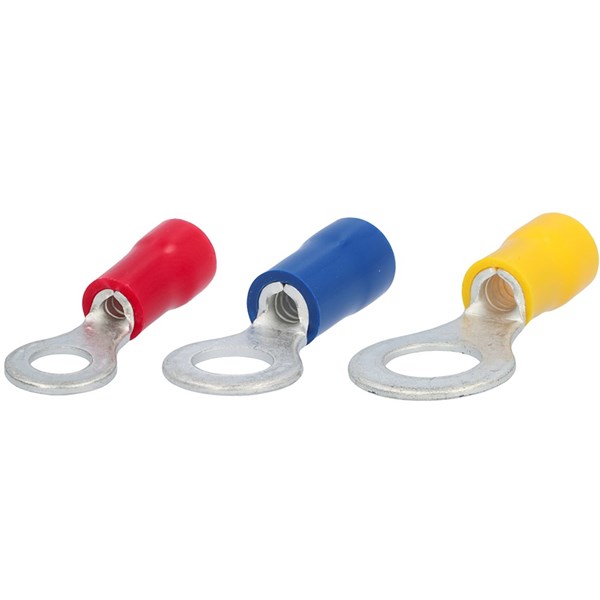

Insulated ring terminals in tinned copper with Polyvinyl chloride (PVC) insulation.
For the Automotiv Aftermarket.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
Show more
Item List
- Total: 25
- Total: 25
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 25
| Product Description | HS | ID | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M3 | 3.2 mm | 4.3 mm | 17.5 mm | 10.5 mm | 5.5 mm | 100 . | pcs | 3 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3.5 | 3.7 mm | 4.3 mm | 17.5 mm | 10.5 mm | 5.5 mm | 100 . | pcs | 3.5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4 | 4.3 mm | 4.3 mm | 21.7 mm | 10.5 mm | 8 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM | 4.3 mm | 4.3 mm | 20.4 mm | 10.5 mm | 6.6 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | 5.3 mm | 4.3 mm | 21.7 mm | 10.5 mm | 8 mm | 100 . | pcs | 5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | 6.4 mm | 4.3 mm | 27.6 mm | 10.5 mm | 11.6 mm | 100 . | pcs | 6 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8 | 8.4 mm | 4.3 mm | 27.6 mm | 10.5 mm | 11.6 mm | 100 . | pcs | 8 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8, WIDE | 8.4 mm | 4.3 mm | 28.2 mm | 10.5 mm | 13.7 mm | 100 . | pcs | 8 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M10 | 10.5 mm | 4.3 mm | 31.5 mm | 10.5 mm | 13.7 mm | 100 . | pcs | 10 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M10, WIDE | 10.5 mm | 4.3 mm | 32.5 mm | 10.5 mm | 18 mm | 100 . | pcs | 10 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3 | 3.2 mm | 4.9 mm | 23 mm | 11 mm | 8.5 mm | 100 . | pcs | 3 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | 3.7 mm | 4.9 mm | 20.6 mm | 11 mm | 6.6 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | 4.3 mm | 4.9 mm | 23 mm | 11 mm | 8.5 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | 5.3 mm | 4.9 mm | 23 mm | 11 mm | 9.5 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | 6.4 mm | 4.9 mm | 28.1 mm | 11 mm | 12 mm | 100 . | pcs | 6 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | 8.4 mm | 4.9 mm | 28.1 mm | 11 mm | 12 mm | 100 . | pcs | 8 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8, WIDE | 8.4 mm | 4.9 mm | 28.3 mm | 11 mm | 13.8 mm | 100 . | pcs | 8 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M10 | 10.5 mm | 4.9 mm | 31.9 mm | 11 mm | 13.7 mm | 100 . | pcs | 10 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M3.5 | 3.7 mm | 6.7 mm | 26.7 mm | 14 mm | 9.5 mm | 100 . | pcs | 3.5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | 4.3 mm | 6.7 mm | 26.7 mm | 14 mm | 9.5 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | 5.3 mm | 6.7 mm | 26.7 mm | 14 mm | 9.5 mm | 100 . | pcs | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 | 6.4 mm | 6.7 mm | 33.7 mm | 14 mm | 12 mm | 100 . | pcs | 6 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | 8.4 mm | 6.7 mm | 34.9 mm | 14 mm | 15 mm | 100 . | pcs | 8 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | 10.5 mm | 6.7 mm | 34.9 mm | 14 mm | 15 mm | 100 . | pcs | 10 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 | 13 mm | 6.7 mm | 39.6 mm | 14 mm | 19.2 mm | 100 . | pcs | 12 . | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 25
Similar Options
Approvals
- Total: 25
- Total: 25
Technical Properties
- Total: 25
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M3 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3.5 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8, WIDE | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M10 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M10, WIDE | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8, WIDE | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M10 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M3.5 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Copper | 600V | No |
Yes
|
|
|
- Total: 25
Other information
- Total: 25
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1532RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1537RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1543RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1543RSPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1553RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1565RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1585RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M8, WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1585RBPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1510RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M10, WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A1510RBPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2532RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2537RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2543RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2553RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2565RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2585RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M8, WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2585RBPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A2510RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A4637RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A4643RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A4653RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A4665RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A4685RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | A4610RPL |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | ISOLERAD RINGKABELSKO | A4613RPL |
Yes
|
|
|
- Total: 25
