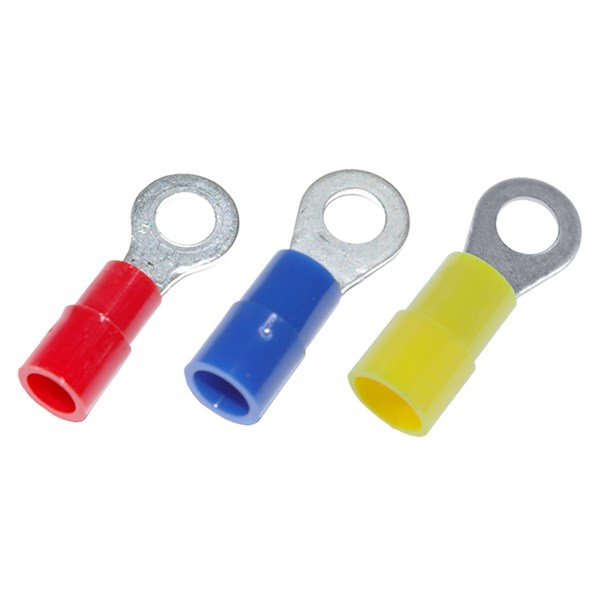

Ring terminals NT PL-series (DIN)
Brazed seam
Easy entry
Meets the measure requirements
according to DIN 46237.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Ring shape
- According to DIN:
- Yes
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
Show more
Item List
- Total: 19
- Total: 19
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_NT PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 19
| Product Description | HS | ID | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M10 | 10.5 mm | 4.2 mm | 32.5 mm | 11.5 mm | 13.7 mm | 100 . | pcs | 10 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3 | 3.2 mm | 4.2 mm | 19.4 mm | 10.5 mm | 6 mm | 100 . | pcs | 3 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4 | 4.3 mm | 4.2 mm | 21.4 mm | 10.5 mm | 8 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | 5.3 mm | 4.2 mm | 23.4 mm | 10.5 mm | 9.9 mm | 100 . | pcs | 5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | 6.4 mm | 4.2 mm | 25.9 mm | 10.5 mm | 10.9 mm | 100 . | pcs | 6 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8 | 8.4 mm | 4.2 mm | 28.6 mm | 11.5 mm | 11.6 mm | 100 . | pcs | 8 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M10 | 10.5 mm | 31.9 mm | 13.7 mm | 100 . | pcs | 10 . | 1.04-2.63 mm² |
Yes
|
|
|
||
| INSULATED RING TERMINAL BLUE, M3 | 3.2 mm | 4.7 mm | 19.9 mm | 11 mm | 6 mm | 100 . | pcs | 3 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | 3.7 mm | 4.7 mm | 20 mm | 11 mm | 5.9 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | 4.3 mm | 4.7 mm | 21.7 mm | 11 mm | 8 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | 5.3 mm | 4.7 mm | 24.8 mm | 11 mm | 10 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | 6.4 mm | 4.7 mm | 27.5 mm | 11 mm | 10.9 mm | 100 . | pcs | 6 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | 8.4 mm | 30 mm | 14 mm | 100 . | pcs | 8 . | 1.04-2.63 mm² |
No
|
|
|
||
| INSULATED RING TERMINAL YELLOW, M4 | 4.3 mm | 6.8 mm | 25.3 mm | 13.7 mm | 8 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | 5.3 mm | 6.8 mm | 27.4 mm | 13.7 mm | 9.9 mm | 100 . | pcs | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 | 6.4 mm | 6.8 mm | 29 mm | 13.7 mm | 11 mm | 100 . | pcs | 6 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | 8.4 mm | 6.8 mm | 33.7 mm | 13.7 mm | 13.9 mm | 100 . | pcs | 8 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | 10.5 mm | 6.8 mm | 37.5 mm | 13.7 mm | 18 mm | 100 . | pcs | 10 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 | 13 mm | 6.8 mm | 43.2 mm | 13.7 mm | 18.9 mm | 100 . | pcs | 12 . | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 19
Similar Options
Approvals
- Total: 19
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M10 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M10 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 |
|
|
|
No
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 |
|
|
|
Yes
|
|
|
- Total: 19
Technical Properties
- Total: 19
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M10 | Yes | Yes | No | 19 A | Ring shape | Yes | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3 | Yes | Yes | No | 19 A | Ring shape | Yes | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4 | Yes | Yes | No | 19 A | Ring shape | Yes | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | Yes | Yes | No | 19 A | Ring shape | Yes | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | Yes | Yes | No | 19 A | Ring shape | Yes | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8 | Yes | Yes | No | 19 A | Ring shape | Yes | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M10 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | Yes | Yes | No | 27 A | Ring shape | Yes | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | Yes | Yes | No | 48 A | Ring shape | Yes | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | Yes | Yes | No | 48 A | Ring shape | Yes | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 | Yes | Yes | No | 48 A | Ring shape | Yes | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | Yes | Yes | No | 48 A | Ring shape | Yes | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | Yes | Yes | No | 48 A | Ring shape | Yes | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 | Yes | Yes | No | 48 A | Ring shape | Yes | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V2 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
- Total: 19
Other information
- Total: 19
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT1510RPL |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT1532RPL |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT1543RPL |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT1553RPL |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT1565RPL |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT1585RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2510RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2532RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2537RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2543RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2553RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2565RPL |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT2585RPL |
No
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT4643RPL |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT4653RPL |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT4665RPL |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT4685RPL |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT4610RPL |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | NT4613RPL |
Yes
|
|
|
- Total: 19
