HA 2565 R
INSULATED RING TERMINAL BLUE, M6
HA 2565 R
- Availability:
-
Yes
- Total: 1
Related items

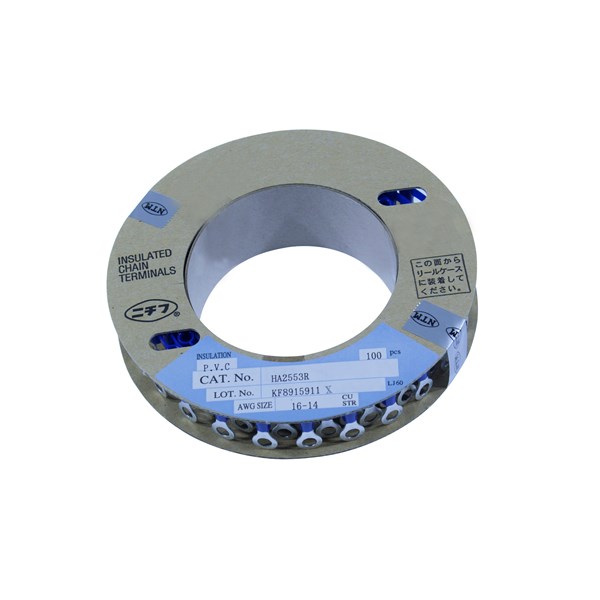

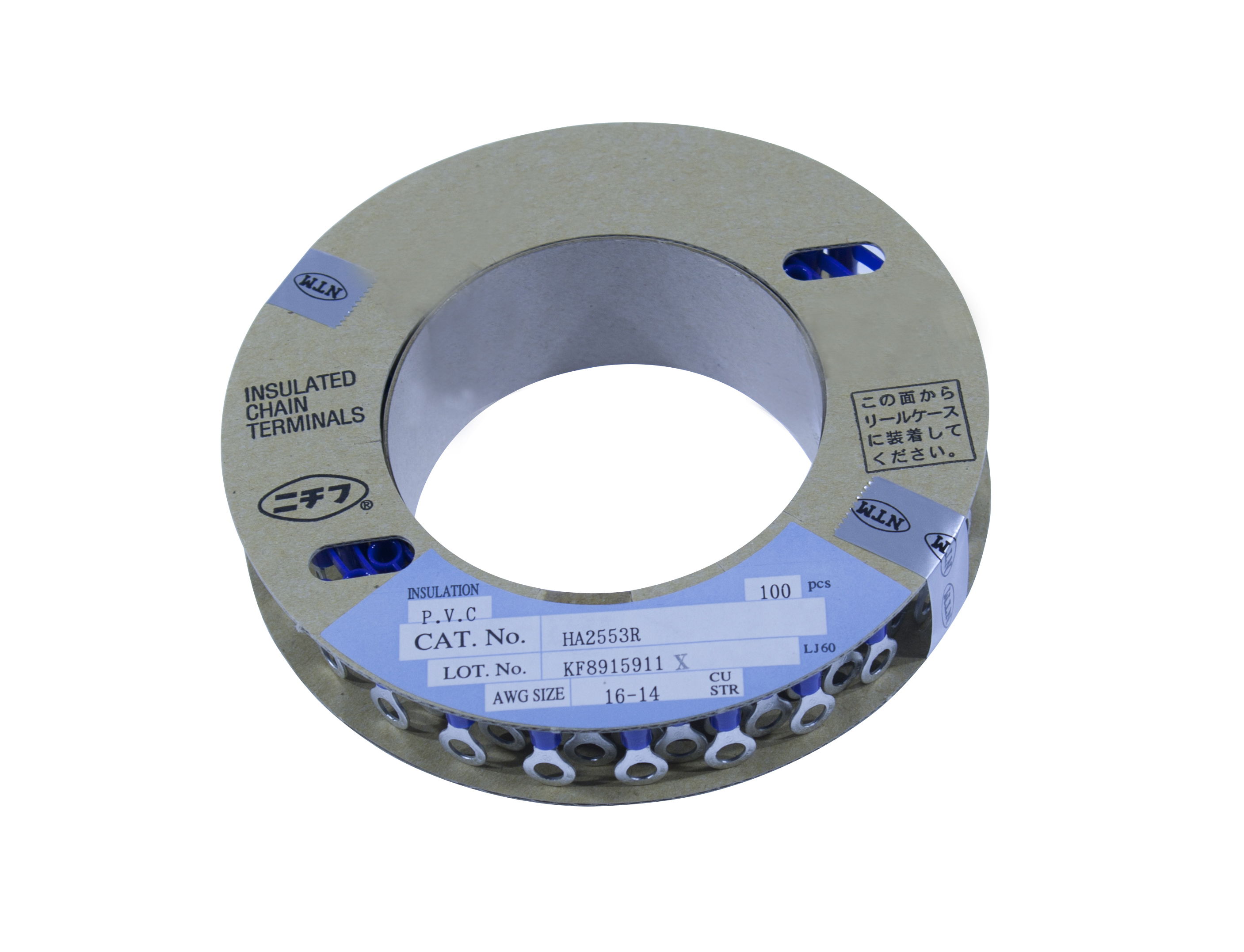

Ring terminals on reel, HA-series
Brazed seam
Easy entry
Used with NCH-crimp system.
Se further down for related links.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | Yes |
| Max. current (Imax) | 27 A |
| Flange shape | Ring shape |
| According to DIN | No |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -40-75 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | No |
Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
| Bolt dimension (metric) | 6 . |
| Nominal cross section | 1.04-2.63 mm² |
Logistics
| Barcode | 733117611399 |
|---|---|
| Country of origin | JP |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Stock code | HA 2565 R |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| Approved according to CE | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Ring terminals - Reel |
| Search Description | NICHIFU, ICT2-6 HA |
| Alternative SKU | HA2565R |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| RoHS | RoHS 3 (2015/863) |
| US TSCA | No (5 PBT Subs, Feb 2021) |
