A 4609 FLF PL

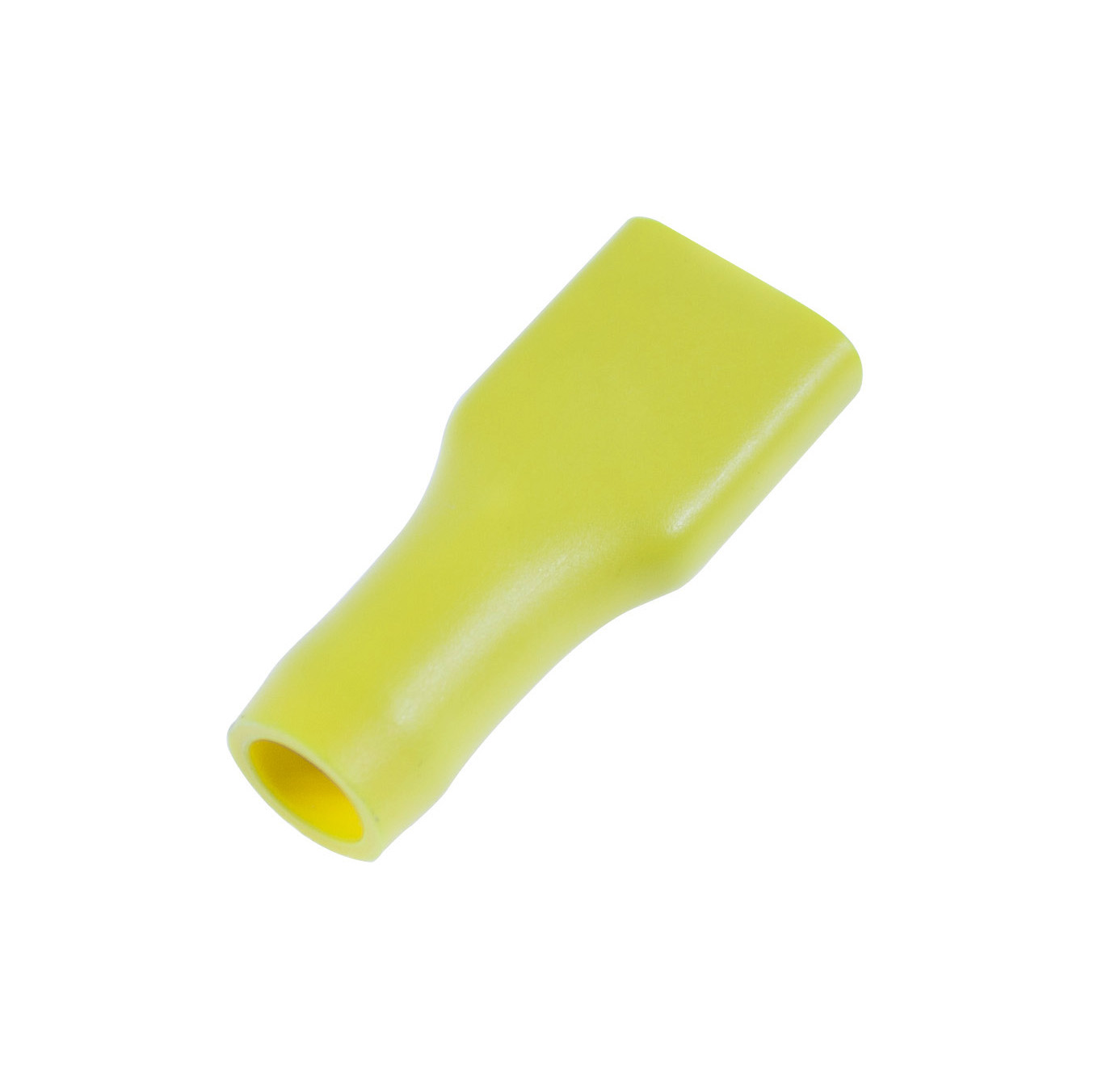

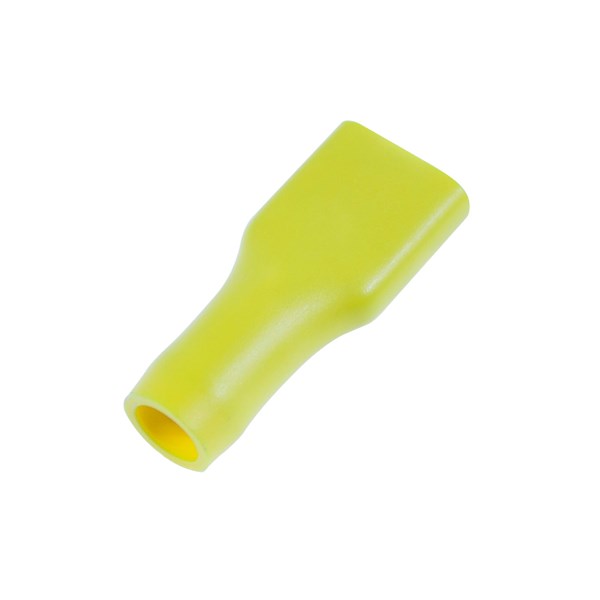

FULLY INSULATED RECEPTACLE YELLOW, 9.5x1.1mm
A 4609 FLF PL
- Availability:
-
Yes
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Max. current (Imax) | 24 A |
| Insulation | Fully isolated |
| Colour insulation | Yellow |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Packaging | Loose piece |
Dimensions
| ID | 6.3 mm |
|---|---|
| L | 29.7 mm |
| N | 13.7 mm |
| W | 9.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 2.63-6.64 mm² |
| AWG-range | 12-10 . |
| Plug dimensions | Flat 9.5x1.2 mm |
Logistics
| Barcode | 733117610634 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | A 4609 FLF PL |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Fully Insulated Receptacle - PVC |
| Alternative SKU | A4609FLFPL |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
