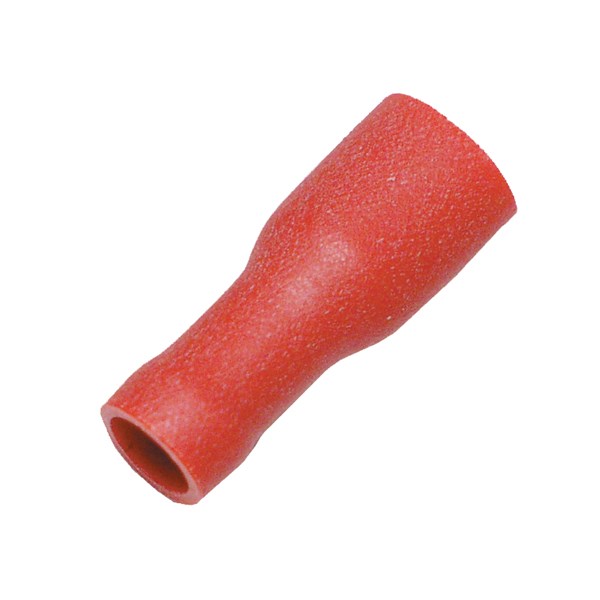

Fully Insulated female disconnects A PL-series
Long copper sleeve
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
Show more
Item List
- Total: 13
- Total: 13
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 13
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.5mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 4.8x0.5 mm |
Yes
|
|
|
||||
| FULLY INSULATED RECEPTACLE RED, 2.8x0.5mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 2.8x0.5 mm |
Yes
|
|
|
||||
| FULLY INSULATED RECEPTACLE RED, 2.8x0.8mm | 3.8 mm | 20.5 mm | 10.4 mm | 4.3 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 2.8x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.5mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.5 mm |
Yes
|
|
|
||||
| FULLY INSULATED RECEPTACLE RED, 4.8x0.8mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.8 mm |
Yes
|
|
|
||||
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.8mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 4.8x0.8 mm |
Yes
|
|
|
||||
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm | 4.3 mm | 22 mm | 10 mm | 6.3 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.5mm | 5 mm | 20.6 mm | 10 mm | 2.8 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 2.8x0.5 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.8mm | 5 mm | 20.6 mm | 10 mm | 2.8 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 2.8x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm | 4.8 mm | 22 mm | 10.5 mm | 6.3 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 4.8x0.8mm | 7 mm | 23.8 mm | 13.7 mm | 4.8 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 4.8x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | 6 mm | 25.5 mm | 13.7 mm | 6.3 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | 6.3 mm | 29.7 mm | 13.7 mm | 9.5 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 9.5x1.2 mm |
Yes
|
|
|
- Total: 13
Similar Options
Approvals
- Total: 13
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.5mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 2.8x0.5mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 2.8x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.5mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.8mm |
|
|
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.5mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 4.8x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 9.5x1.1mm |
|
|
|
Yes
|
|
|
- Total: 13
Technical Properties
- Total: 13
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | Brass | 300V | No | Loose piece |
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE RED, 2.8x0.5mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | Brass | 300V | No | Loose piece |
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE RED, 2.8x0.8mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | Brass | 300V | No | Loose piece |
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | Brass | 300V | No | Loose piece |
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | Brass | 300V | No | Loose piece |
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | Brass | 300V | No | Loose piece |
Yes
|
|
|
|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.5mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.8mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 4.8x0.8mm | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
- Total: 13
Other information
- Total: 13
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A2504FLF-5PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 2.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A0503FLF-5PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 2.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A0503FLF-8PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A1504FLF-5PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A1504FLF-8PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A2504FLF-8PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A1507FLFPL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A2503FLF-5PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 2.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A2503FLF-8PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A2507FLFPL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A4604FLF-8PL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A4607FLFPL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - PVC | A4609FLFPL |
Yes
|
|
|
- Total: 13
