AE 1507 FLSF

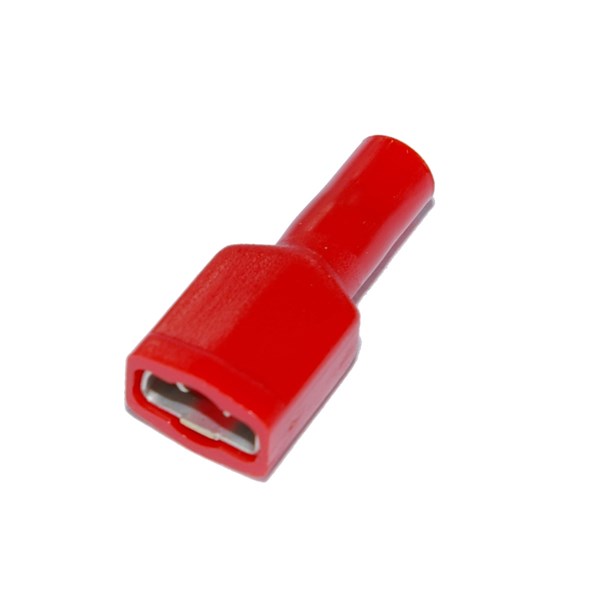

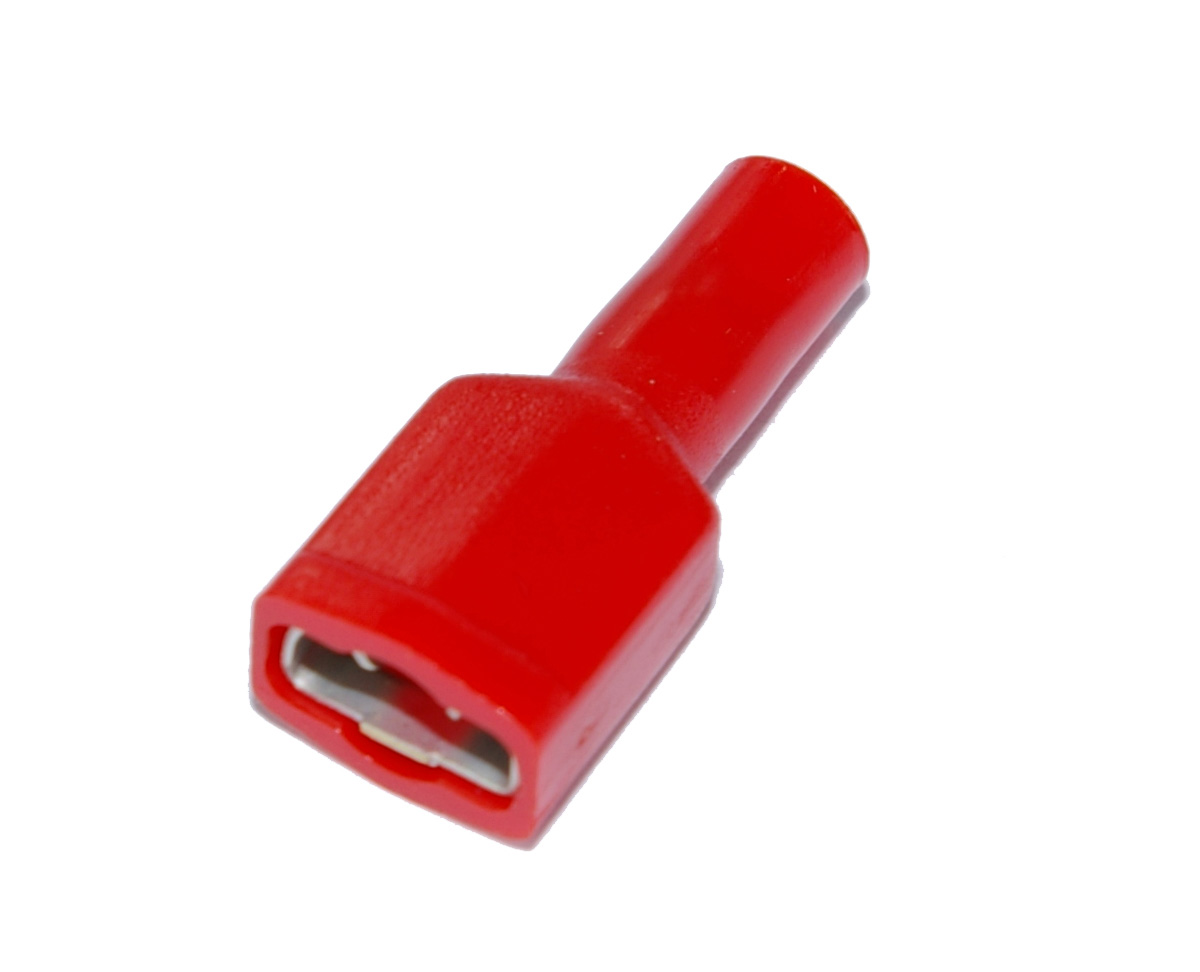

FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm
AE 1507 FLSF
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
E0822275.
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Max. current (Imax) | 10 A |
| Insulation | Fully isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polycarbonate (PC) |
| Operating temperature | -150-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Packaging | Loose piece |

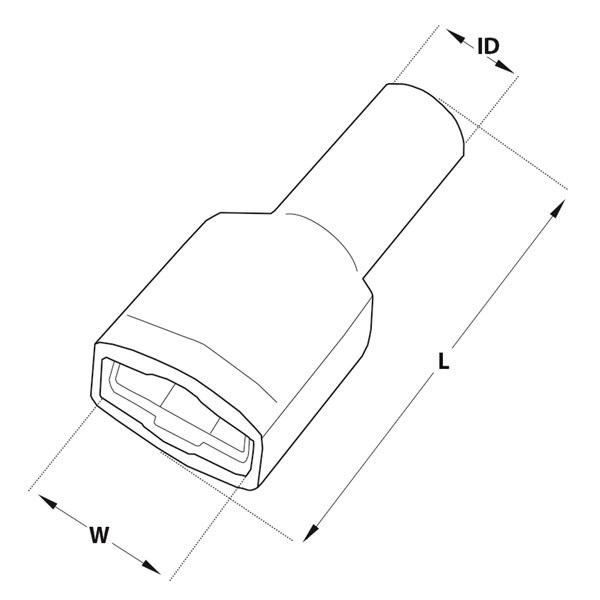

Dimensions
| ID | 4 mm |
|---|---|
| L | 21 mm |
| W | 8.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.5-1.5 mm² |
| AWG-range | 22-16 . |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 739348700503 |
|---|---|
| Country of origin | SE |
| E-no | E0822275. |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | AE 1507 FLSF |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Inflammability class of insulation material according to with UL94 | V0 |
|---|
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Elpress |
| Product Group | Fully Insulated Receptacle - PVC |
| Alternative SKU | AE1507FLSF |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
